Global Dynamic Systems

237Q56R30

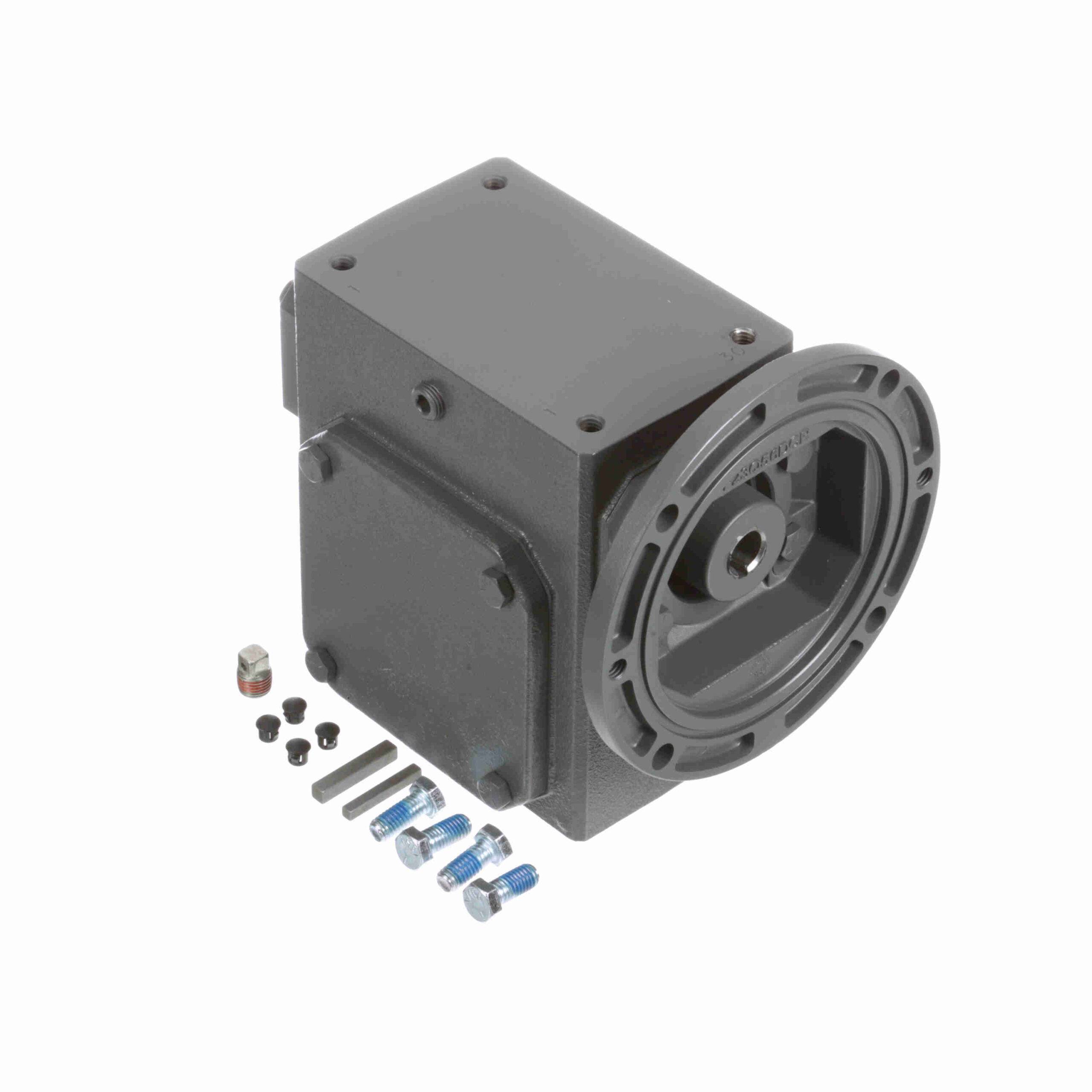

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 237Q56R30

SKU: XF1107 Category:

$1,469.59

Out of stock

Out of stock

stripe checkout
  • Rugged Cast-Iron Housing: Provides maximum strength and dependability.
  • High lead angle worm is case hardened, ground and polished.
  • Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
  • Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
Motor Frame Size:

56C

Efficiency:

80

Reducer Style:

Standard

Input Keyway (C Face):

3/16 X 3/32

Input Speed:

1750

Thrust Rating - output shaft:

2305

Input Bore (C Face):

0.625

Ratio:

30:1

Shaft Seal Material:

Nitrile

Reducer:

Worm - Right Angle

Output Diameter (in):

1.125 in

Center Distance (in):

2.38

Series Code:

Raider

Frame Size:

56C

No. of Gear Reductions:

Single

Input RPM:

1, 750

Output RPM:

58.3

Model Code:

237Q

Output Shaft Assembly Code:

R

Mounting Style:

No Base

Assembly:

Q-R

Ratio Range:

30:01:00

Output Key:

1/4 X 1.75

Input HP @ 1750 RPM:

1.45

Product Type:

Worm Speed Reducer

Input Style:

C-Face Quill

Gear Type:

Worm

Input Diameter (in):

0.625 in

Service Factor:

1

Output Shaft Direction:

Right

Output Torque Rating (in-lb):

1423 in-lbs @1750 input RPM in/lbs

Output Shaft:

Solid Shaft

Housing Material:

Cast Iron

Overhung Load Rating (Output Shaft(lb)):

843 lb

UPC:

6, 62288E+11

Weight:

45.00 LB
