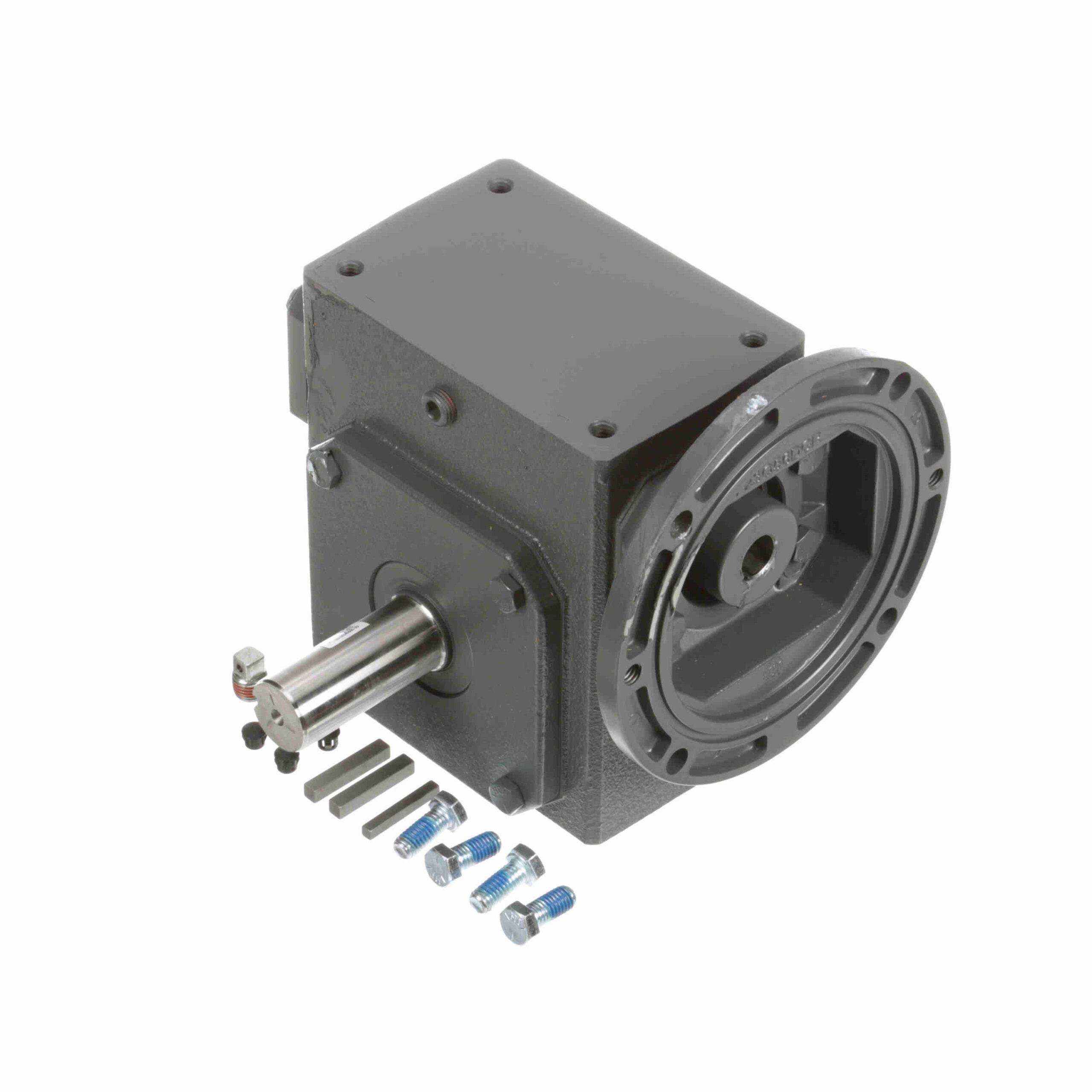

237Q56LR40

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Shaft Seal Material:	Nitrile	Efficiency:	80
Reducer Style:	Standard	Ratio:	40:1
Motor Frame Size:	56C	Input Keyway (C Face):	3/16 X 3/32
Thrust Rating - output shaft:	2305	Input Speed:	1750
Input Bore (C Face):	0.625	Frame Size:	56C
Output Shaft Orientation:	LR	Output Key:	1/4 X 1.75
Center Distance (in):	2.38	Series Code:	Raider
Assembly:	Q-LR	Output RPM:	43.7
Output Shaft Assembly Code:	D	Input RPM:	1, 750
Reducer:	Worm - Right Angle	No. of Gear Reductions:	Single
Input HP @ 1750 RPM:	1.14	Gear Type:	Worm
Service Factor:	1	Input Style:	C-Face Quill
Ratio Range:	40:01:00	Input Diameter (in):	0.625 in
Mounting Style:	No Base	Model Code:	237Q
Product Type:	Worm Speed Reducer	Output Diameter (in):	1.125 in
Output Shaft Direction:	Double	Output Torque Rating (in-lb):	1433 in-lbs @1750 input RPM in/lbs
Housing Material:	Cast Iron	Output Shaft:	Solid Shaft
Overhung Load Rating (Output Shaft(lb)):	843 lb	UPC:	6, 62288E+11
Weight:	45.00 LB
