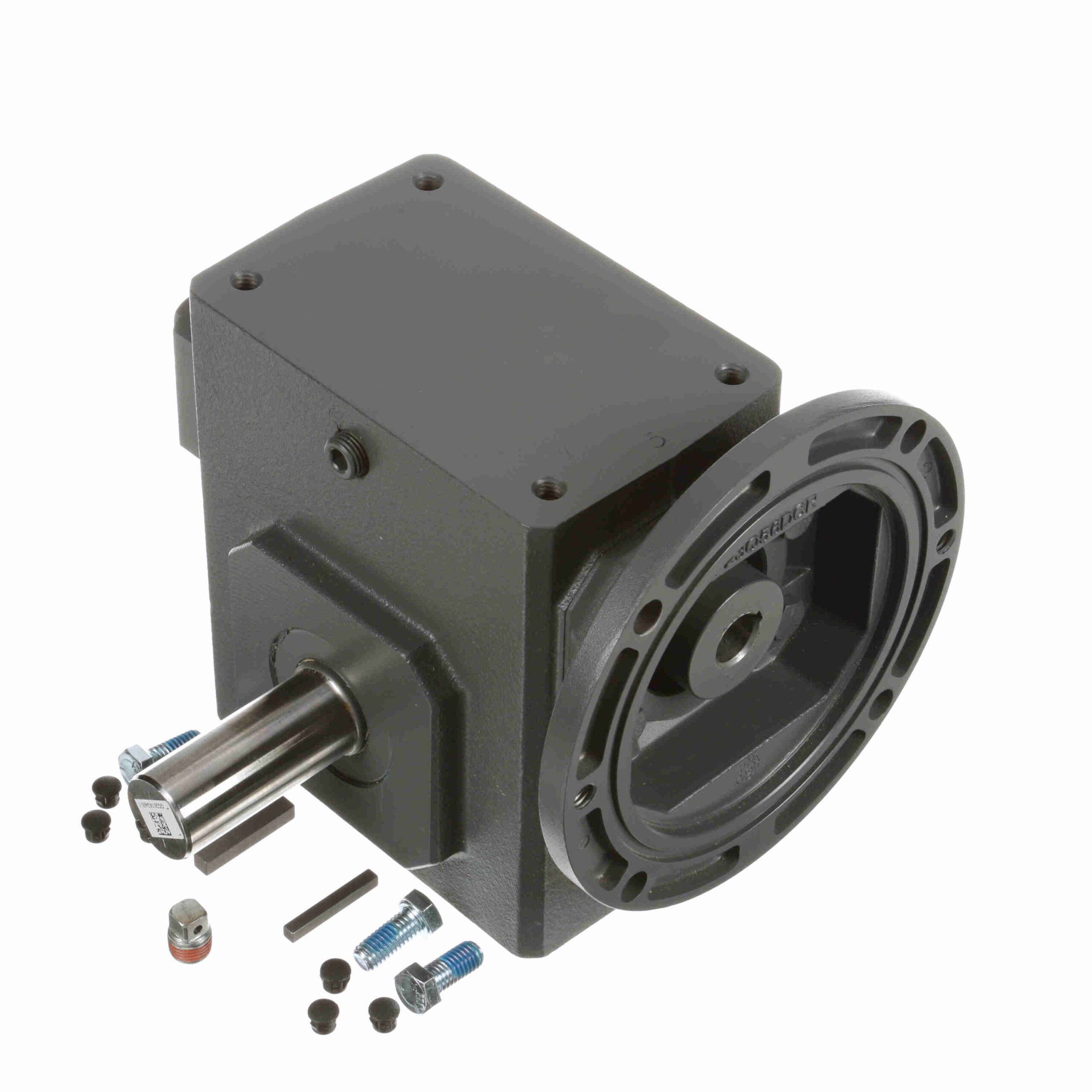

237Q56L5

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Motor Frame Size:	56C	Input Speed:	1750
Reducer Style:	Standard	Efficiency:	80
Thrust Rating - output shaft:	1451	Input Bore (C Face):	0.625
Input Keyway (C Face):	3/16 X 1.63	Ratio:	5:1
Maximum Input HP:	5.32 hp @ 1750 rpm	Manufacturer Reducer Size:	237
Ratio Range:	5:1	Gear Type:	Worm
Input HP @ 1750 RPM:	5.32	Input Style:	C-Face Quill
No. of Gear Reductions:	Single	Output Diameter (in):	1.125 in
Product Type:	Worm Speed Reducer	Input Diameter (in):	0.625 in
Series Code:	Raider	Mounting Style:	No Base
Center Distance (in):	2.38	Frame Size:	56C
Service Factor:	1	Output Shaft Direction:	Left
Output Shaft:	Shaft	Output Torque Rating (in-lb):	898 in-lbs @1750 input RPM in/lbs
Housing Material:	Cast Iron	Overhung Load Rating (Output Shaft(lb)):	1, 770 lb
UPC:	6, 62288E+11	Weight:	45.00 LB
