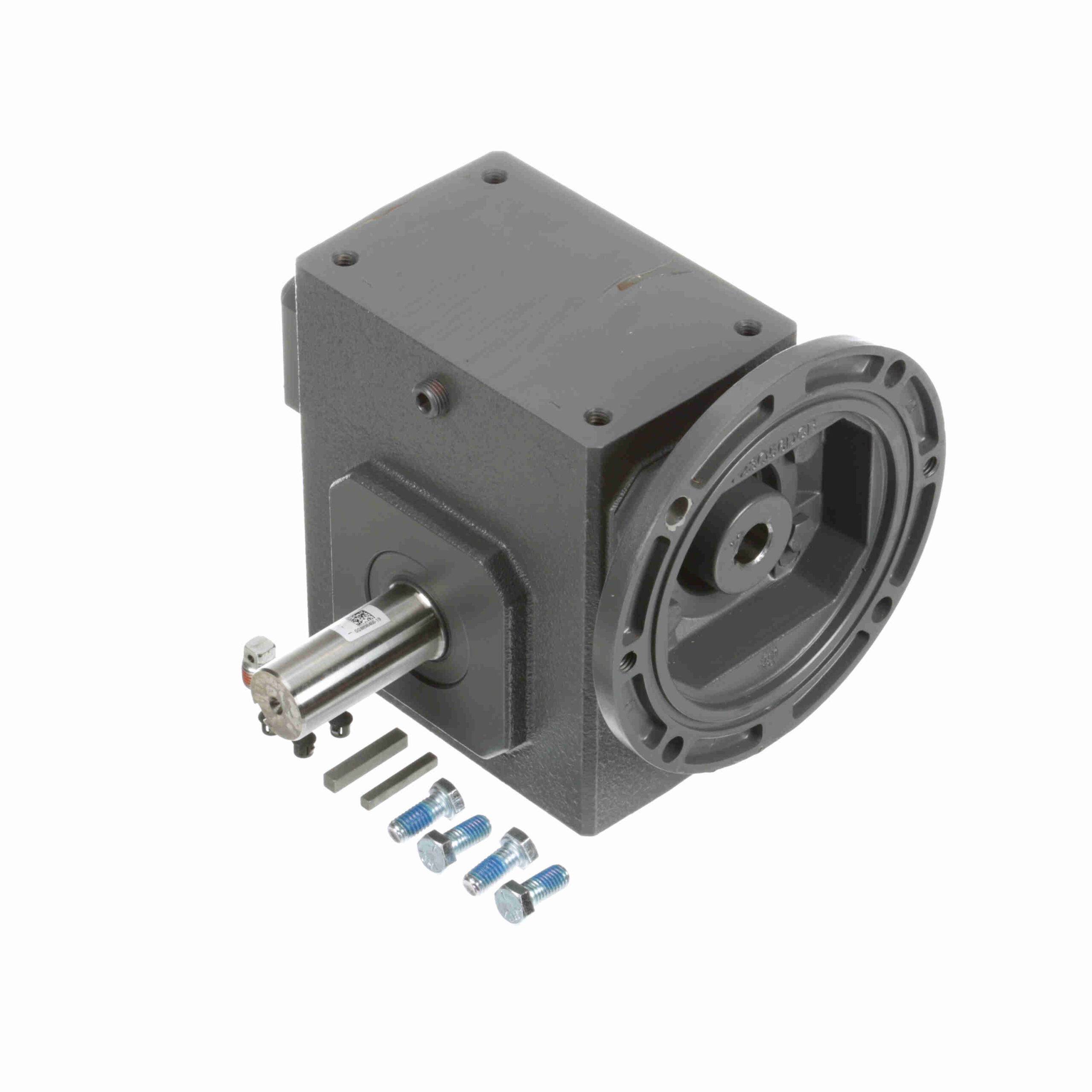

237Q56L30

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Reducer Style:	Standard	Ratio:	30:1
Motor Frame Size:	56C	Input Keyway (C Face):	3/16 X 3/32
Shaft Seal Material:	Nitrile	Input Speed:	1750
Thrust Rating - output shaft:	2305	Input Bore (C Face):	0.625
Efficiency:	80	Output Shaft Assembly Code:	L
Input Diameter (in):	0.625 in	Output Diameter (in):	1.125 in
Service Factor:	1	Input RPM:	1, 750
Assembly:	Q-L	Output RPM:	58.3
Ratio Range:	30:1	Input HP @ 1750 RPM:	1.45
No. of Gear Reductions:	Single	Reducer:	Worm - Right Angle
Center Distance (in):	2.38	Output Key:	1/4 X 1.75
Frame Size:	56C	Model Code:	237Q
Input Style:	C-Face Quill	Gear Type:	Worm
Series Code:	Raider	Mounting Style:	No Base
Product Type:	Worm Speed Reducer	Output Shaft Direction:	Left
Output Shaft:	Solid Shaft	Housing Material:	Cast Iron
Overhung Load Rating (Output Shaft(lb)):	843 lb	Output Torque Rating (in-lb):	1423 in-lbs @1750 input RPM in/lbs
UPC:	6, 62288E+11	Weight:	45.00 LB
