- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
237Q56L20

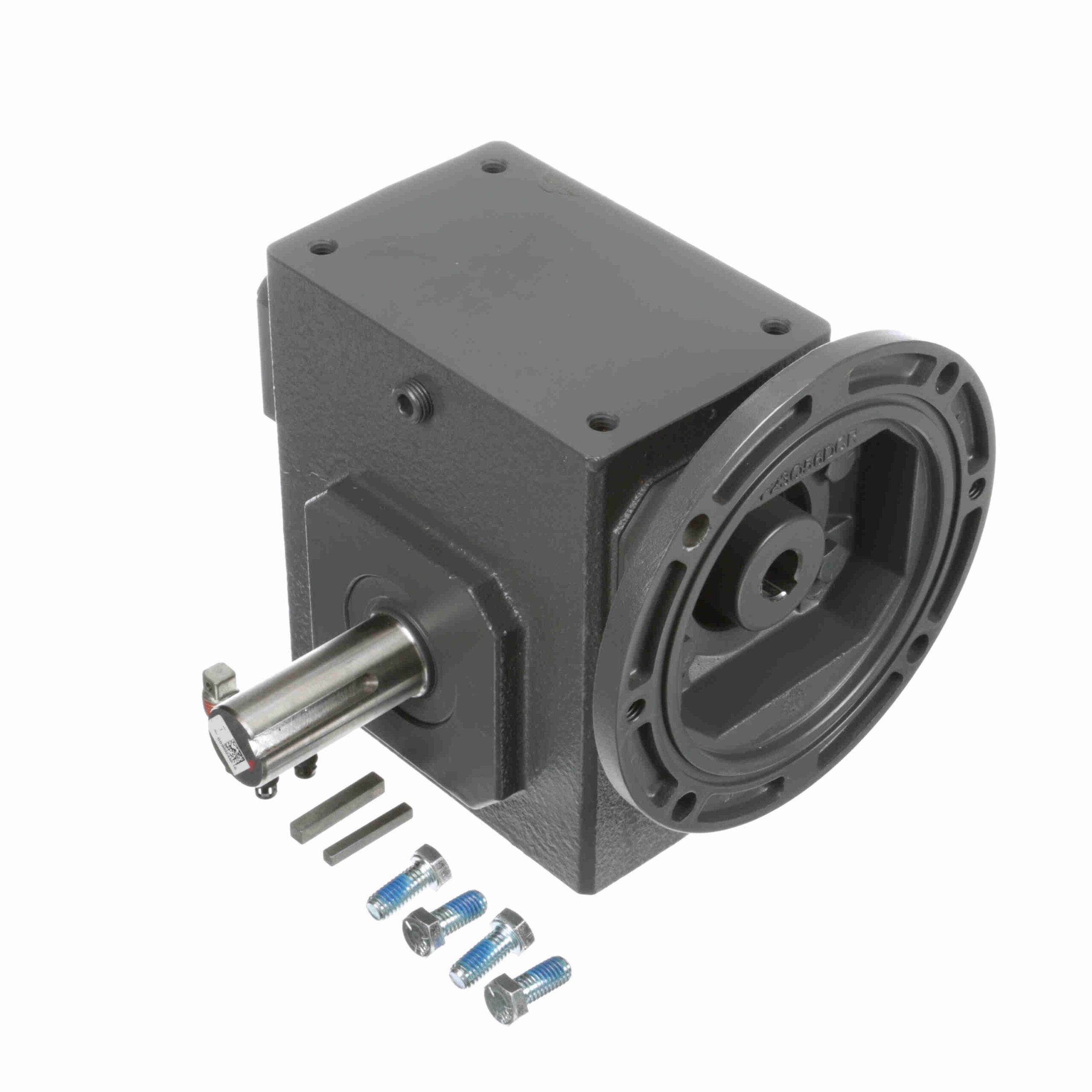

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 237Q56L20
$1,469.59
Out of stock
Out of stock
| Ratio: | 20:1 | Shaft Seal Material: | Nitrile |
|---|---|---|---|
| Input Keyway (C Face): | 3/16 X 3/32 | Input Speed: | 1750 |
| Input Bore (C Face): | 0.625 | Motor Frame Size: | 56C |
| Reducer Style: | Standard | Thrust Rating - output shaft: | 2179 |
| Efficiency: | 80 | Frame Size: | 56C |
| Reducer: | Worm - Right Angle | Output Key: | 1/4 X 1.75 |
| Model Code: | 237Q | Output Diameter (in): | 1.125 in |
| Output RPM: | 87.5 | Product Type: | Worm Speed Reducer |
| Center Distance (in): | 2.38 | Input Style: | C-Face Quill |
| Input HP @ 1750 RPM: | 1.99 | Service Factor: | 1 |
| Input Diameter (in): | 0.625 in | No. of Gear Reductions: | Single |
| Ratio Range: | 20:01 | Output Shaft Assembly Code: | L |
| Assembly: | Q-L | Gear Type: | Worm |
| Mounting Style: | No Base | Series Code: | Raider |
| Input RPM: | 1, 75 | Output Shaft Direction: | Left |
| Output Shaft: | Solid Shaft | Housing Material: | Cast Iron |
| Overhung Load Rating (Output Shaft(lb)): | 843 lb | Output Torque Rating (in-lb): | 1421 in-lbs @1750 input RPM in/lbs |
| UPC: | 6, 62288E+11 | Weight: | 45.00 LB |
