- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
237Q56H60 107

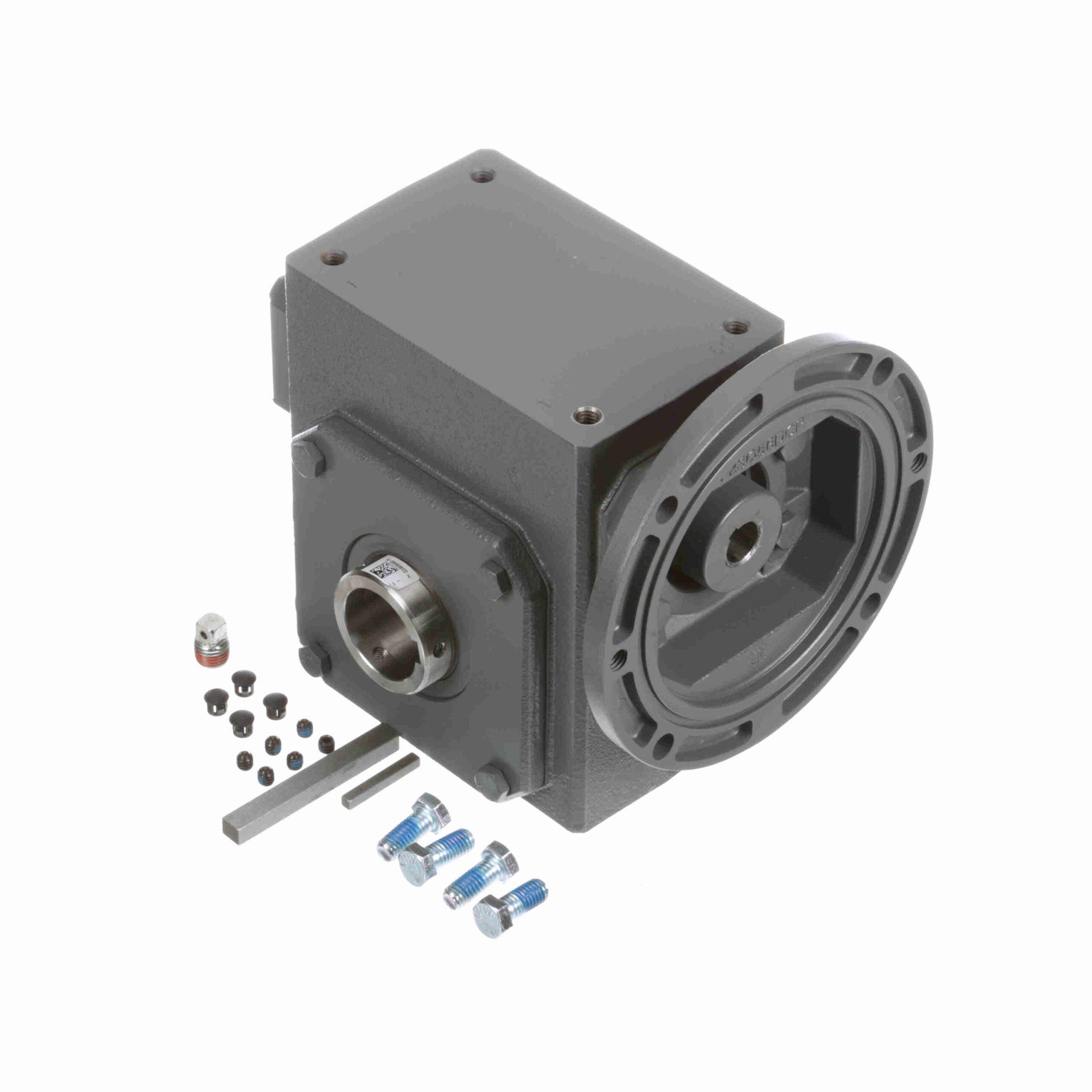

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 237Q56H60 107
$1,770.50
Out of stock
Out of stock
| Input Keyway (C Face): | 3/16 x 3/32 | Thrust Rating - output shaft: | 2091 |
|---|---|---|---|
| Input Bore (C Face): | 0.625 | Ratio: | 60:1 |
| Efficiency: | 80 | Input Speed: | 1750 |
| Reducer Style: | Standard | Motor Frame Size: | 56C |
| Ratio Range: | 60:1 | Service Factor: | 1 |
| No. of Gear Reductions: | Single | Series Code: | Raider |
| Center Distance (in): | 2.38 | Input Style: | C-Face Quill |
| Product Type: | Right Angle | Input Diameter (in): | 0.625 in |
| Gear Type: | Worm | Frame Size: | 56C |
| Output Diameter (in): | 1.500 in | Input HP @ 1750 RPM: | 0.97 |
| Mounting Style: | Shaft Mt | Output Shaft Direction: | L or R |
| Output Shaft: | Hollow Bore | Overhung Load Rating (Output Shaft(lb)): | 1, 770 lb |
| Housing Material: | Cast Iron | Output Torque Rating (in-lb): | 1418 in-lbs @1750 input RPM in/lbs |
| UPC: | 6, 62289E+11 | Weight: | 47.00 LB |
| Packaged Length: | 10.69 Inches | Packaged Width: | 9.06 Inches |
| Packaged Height: | 10.5 Inches |
