- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
237Q56H50 107

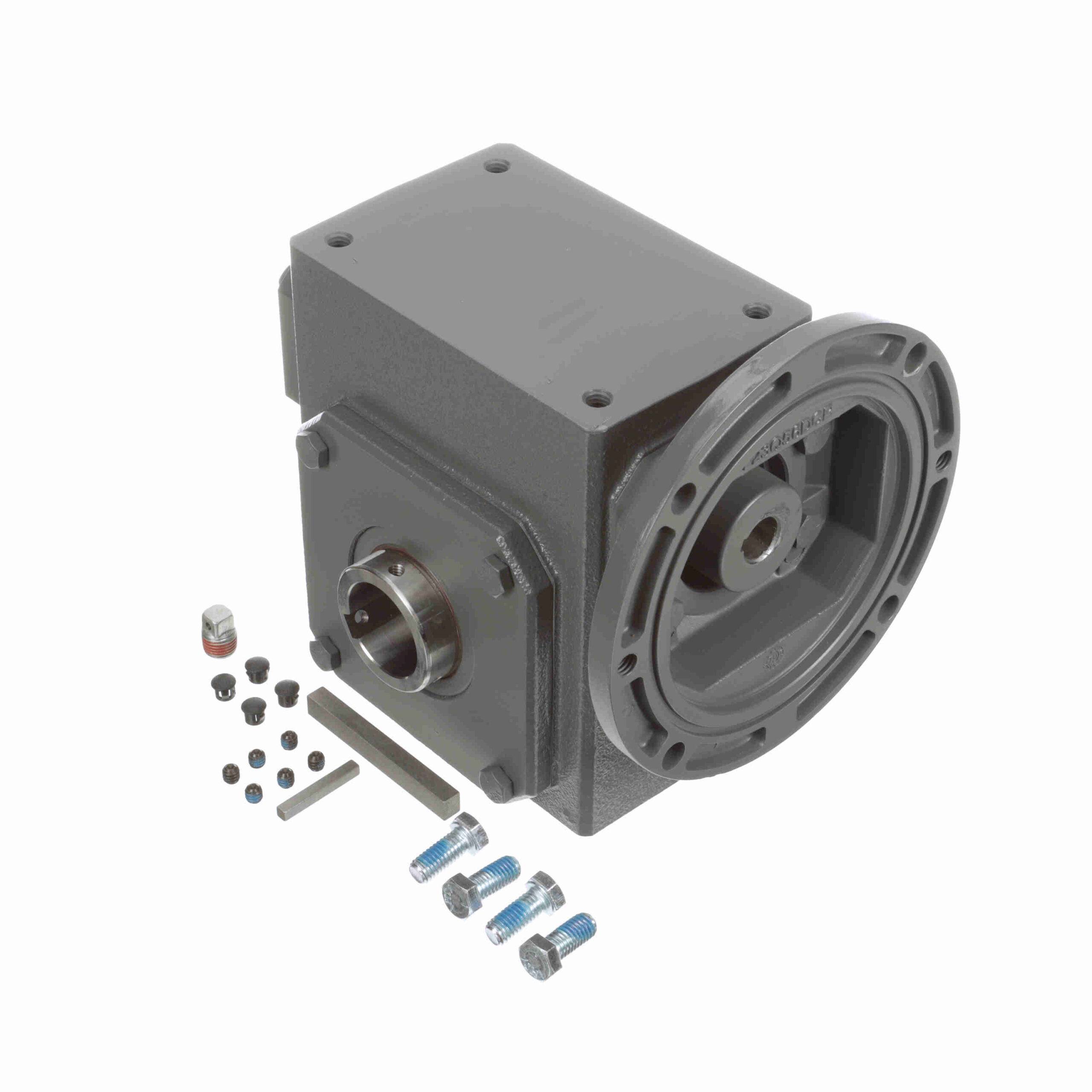

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 237Q56H50 107
$1,795.21
Out of stock
Out of stock
| Input Bore (C Face): | 0.625 | Reducer Style: | Standard |
|---|---|---|---|
| Input Speed: | 1750 | Motor Frame Size: | 56C |
| Efficiency: | 80 | Input Torque: | 41.06 in-Lbs @1750 input rpm, 1 HP |
| Thrust Rating - output shaft: | 2091 | Input Keyway (C Face): | 3/16 x 3/32 |
| Ratio: | 50:1 | Maximum Input HP: | 1.14 hp @ 1750 rpm |
| Manufacturer Reducer Size: | 237 | Output Diameter (in): | 1.500 in |
| Input HP @ 1750 RPM: | 1.14 | Frame Size: | 56C |
| Center Distance (in): | 2.38 | No. of Gear Reductions: | Single |
| Ratio Range: | 50:1 | Gear Type: | Worm |
| Input Style: | C-Face Quill | Output Shaft: | Hollow Bore |
| Housing Material: | Cast Iron | Overhung Load Rating (Output Shaft(lb)): | 1, 770 lb |
| Output Torque Rating (in-lb): | 35 in-Lbs @1750 input rpm, 1 HP in/lbs | UPC: | 6, 62289E+11 |
| Weight: | 47.00 LB |
