- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
237Q140H15 107

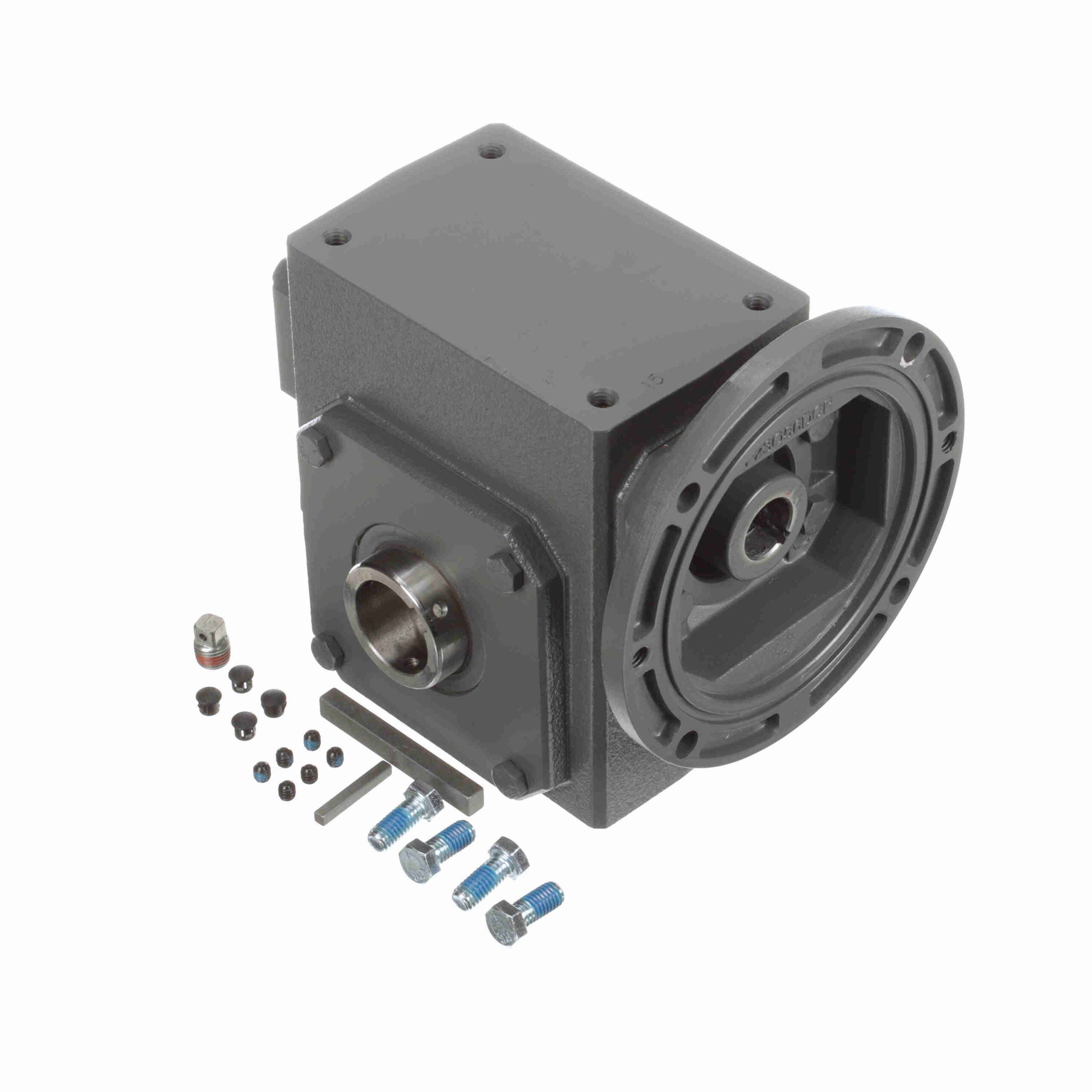

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 237Q140H15 107
$2,044.93
Out of stock
Out of stock
| Thrust Rating - output shaft: | 2091 | Motor Frame Size: | 140TC |
|---|---|---|---|
| Efficiency: | 80 | Reducer Style: | Standard |
| Input Keyway (C Face): | 3/16 x 3/32 | Input Bore (C Face): | 0.875 |
| Input Speed: | 1750 | Ratio: | 15:1 |
| Service Factor: | 1 | Mounting Style: | Shaft Mt |
| No. of Gear Reductions: | Single | Input HP @ 1750 RPM: | 2.77 |
| Input Diameter (in): | 0.875 in | Input Style: | C-Face Quill |
| Center Distance (in): | 2.38 | Series Code: | Raider |
| Gear Type: | Worm | Product Type: | Worm Speed Reducer |
| Frame Size: | 140TC | Output Diameter (in): | 1.500 in |
| Ratio Range: | 15:01 | Output Shaft Direction: | L or R |
| Housing Material: | Cast Iron | Output Shaft: | Hollow Bore |
| Overhung Load Rating (Output Shaft(lb)): | 1, 770 lb | Output Torque Rating (in-lb): | 1318 in-lbs @1750 input RPM in/lbs |
| UPC: | 6, 62289E+11 | Weight: | 47.00 LB |
