- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22328 VS C4 F80 W33

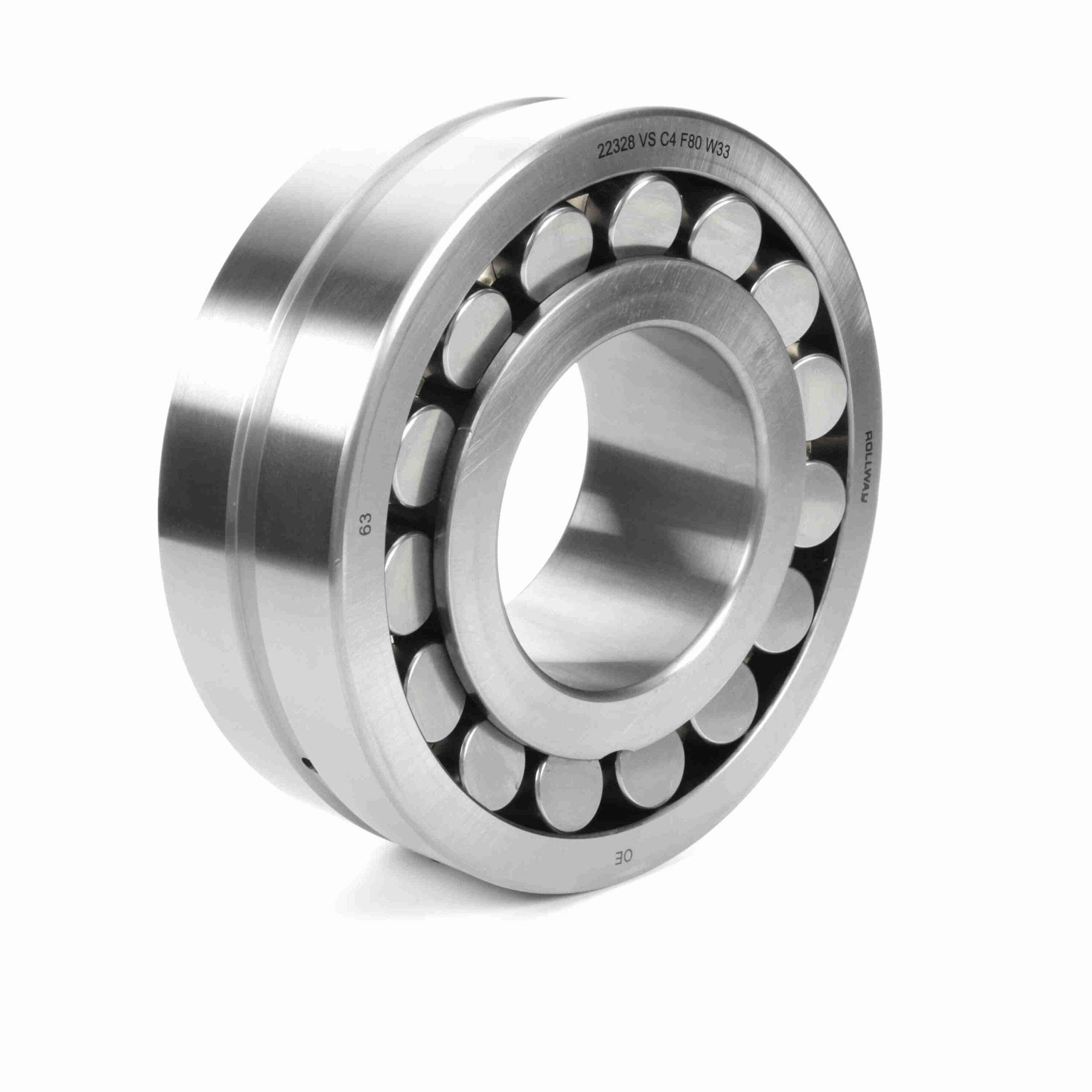

Rollway Radial Spherical Roller Bearing – Straight Bore – 22328 VS C4 F80 W33
$1,692.79
Availability: 5 in stock
Availability: 5 in stock
| Series: | 22300 | Bore Type: | Straight |
|---|---|---|---|
| Cage Material: | Brass | Radial Clearance: | C4 |
| Angular Misalignment: | 2° | Seal Type: | Unsealed |
| Rolling Element: | Spherical Roller | Misalignment: | Yes |
| Static Load Rating (kN): | 1, 240 kN | Number of Rows: | 2 |
| Material: | 52100 Bearing Steel | Speed (Max) Oil (RPM): | 1, 500 rpm |
| Full Complement/Caged: | Caged | Duplexing: | No |
| Speed (Max) Grease (RPM): | 1, 400 rpm | Sealed: | None |
| Platform: | Spherical Radial | Dynamic Load Rating (kN): | 1, 240 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410068483 |
| Weight: | 76.94 LB | Packaged Length: | 11.81 Inches |
| Packaged Width: | 4.02 Inches | Packaged Height: | 11.81 Inches |
| Country of Origin: | China |
