- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22326 MB C3 W33

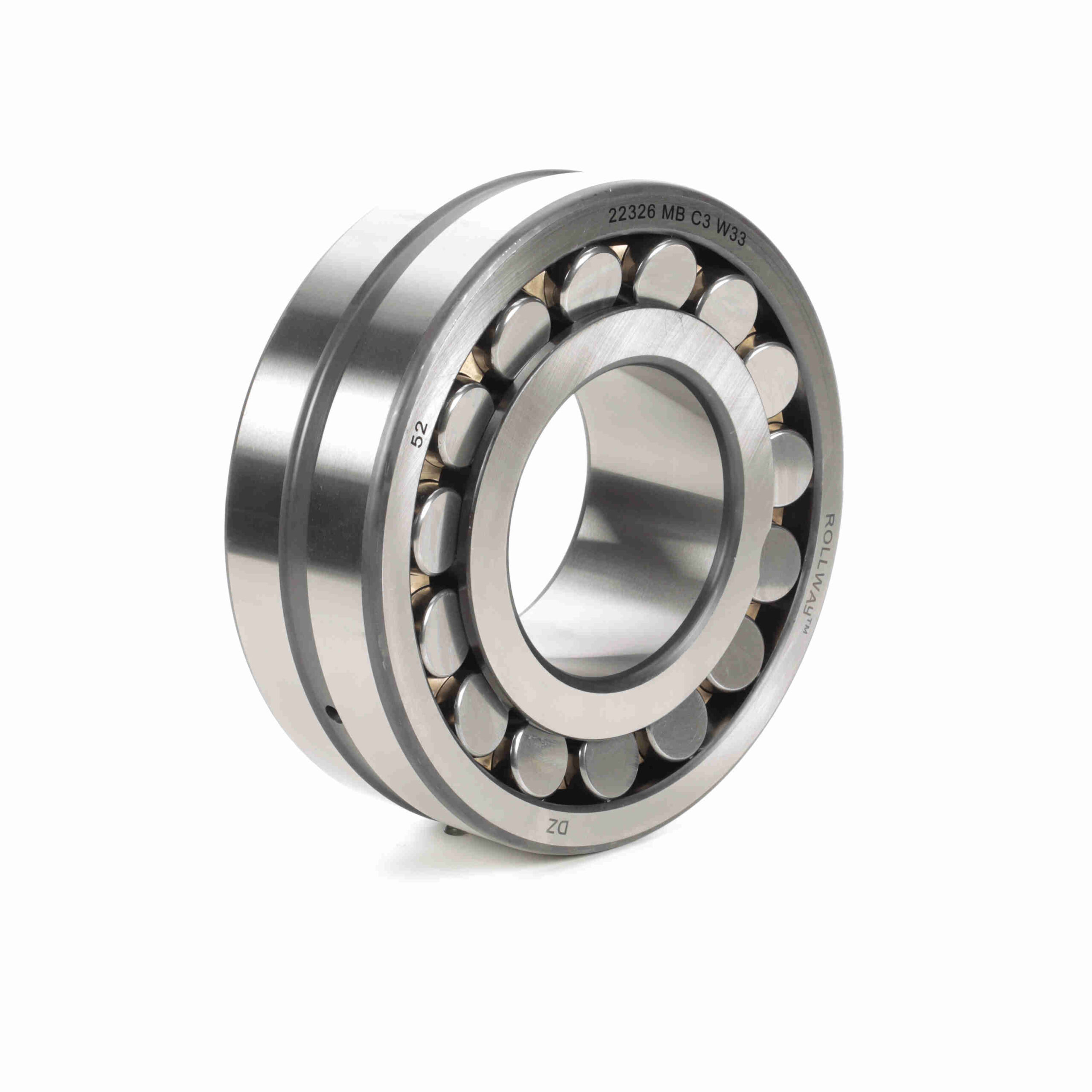

Rollway Radial Spherical Roller Bearing – Straight Bore – 22326 MB C3 W33
$5,106.60
Out of stock
Out of stock
| Series: | 22300 | Angular Misalignment: | 2° |
|---|---|---|---|
| Bore Type: | Straight | Cage Material: | Brass |
| Radial Clearance: | C3 | Seal Type: | Unsealed |
| Misalignment: | Yes | Static Load Rating (kN): | 1, 080 kN |
| Material: | 52100 Bearing Steel | Rolling Element: | Spherical Roller |
| Number of Rows: | 2 | Duplexing: | No |
| Full Complement/Caged: | Caged | Platform: | Spherical Radial |
| Speed (Max) Oil (RPM): | 1, 400 rpm | Sealed: | None |
| Speed (Max) Grease (RPM): | 1, 100 rpm | Dynamic Load Rating (kN): | 1, 080 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410005181 |
| Weight: | 62.83 LB | Packaged Length: | 11.02 Inches |
| Packaged Width: | 3.66 Inches | Packaged Height: | 11.02 Inches |
| Country of Origin: | China |
