- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22315 GMEX C3 W33

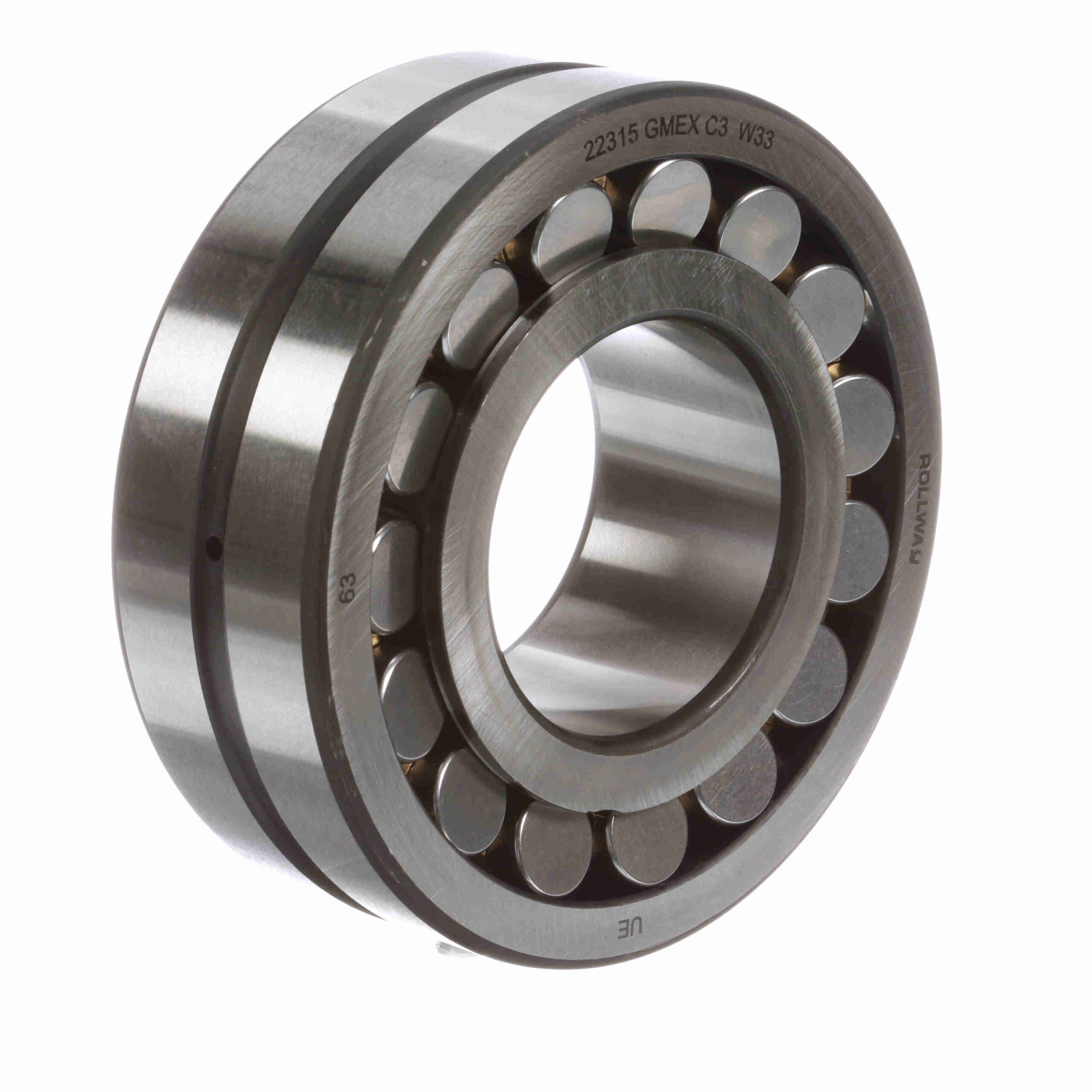

Rollway Radial Spherical Roller Bearing – Straight Bore – 22315 GMEX C3 W33
$461.40
Availability: 10 in stock
Availability: 10 in stock
| Series: | 22300 | Bore Type: | Straight |
|---|---|---|---|
| Cage Material: | Brass | Angular Misalignment: | 2° |
| Radial Clearance: | C3 | Seal Type: | Unsealed |
| Static Load Rating (kN): | 422 kN | Rolling Element: | Spherical Roller |
| Material: | 52100 Bearing Steel | Misalignment: | Yes |
| Number of Rows: | 2 | Platform: | Spherical Radial |
| Sealed: | None | Speed (Max) Oil (RPM): | 1, 020 rpm |
| Duplexing: | No | Full Complement/Caged: | Caged |
| Speed (Max) Grease (RPM): | 723 rpm | Dynamic Load Rating (kN): | 422 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410092617 |
| Weight: | 11.91 LB | Packaged Length: | 7.6 Inches |
| Packaged Width: | 8.2 Inches | Packaged Height: | 2.7 Inches |
| Country of Origin: | China |
