- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22313 GMEX KC3 W33

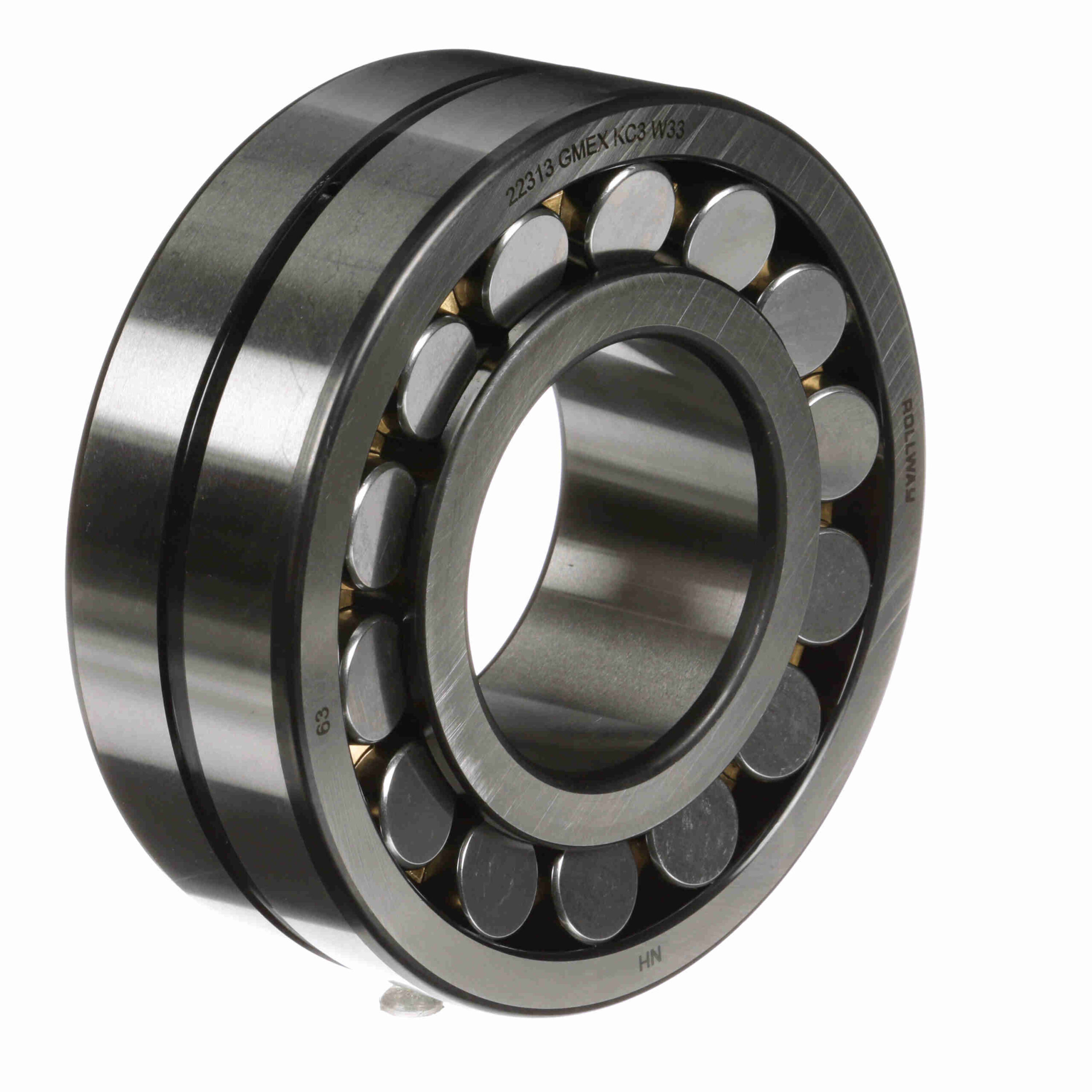

Rollway Radial Spherical Roller Bearing – Tapered Bore – 22313 GMEX KC3 W33
$982.55
Out of stock
Out of stock
| Radial Clearance: | C3 | Bore Type: | Tapered |
|---|---|---|---|
| Series: | 22300 | Cage Material: | Brass |
| Angular Misalignment: | 2° | Seal Type: | Unsealed |
| Material: | 52100 Bearing Steel | Static Load Rating (kN): | 336 kN |
| Rolling Element: | Spherical Roller | Misalignment: | Yes |
| Number of Rows: | 2 | Platform: | Spherical Radial |
| Duplexing: | No | Speed (Max) Grease (RPM): | 3, 230 rpm |
| Sealed: | None | Speed (Max) Oil (RPM): | 4, 250 rpm |
| Full Complement/Caged: | Caged | Dynamic Load Rating (kN): | 336 kN |
| Mounting Method: | Adapter Mount | UPC: | 637410092570 |
| Weight: | 7.85 LB | Packaged Length: | 6.9 Inches |
| Packaged Width: | 6.1 Inches | Packaged Height: | 2.1 Inches |
| Country of Origin: | China |
