- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22313 GMEX C3 W33

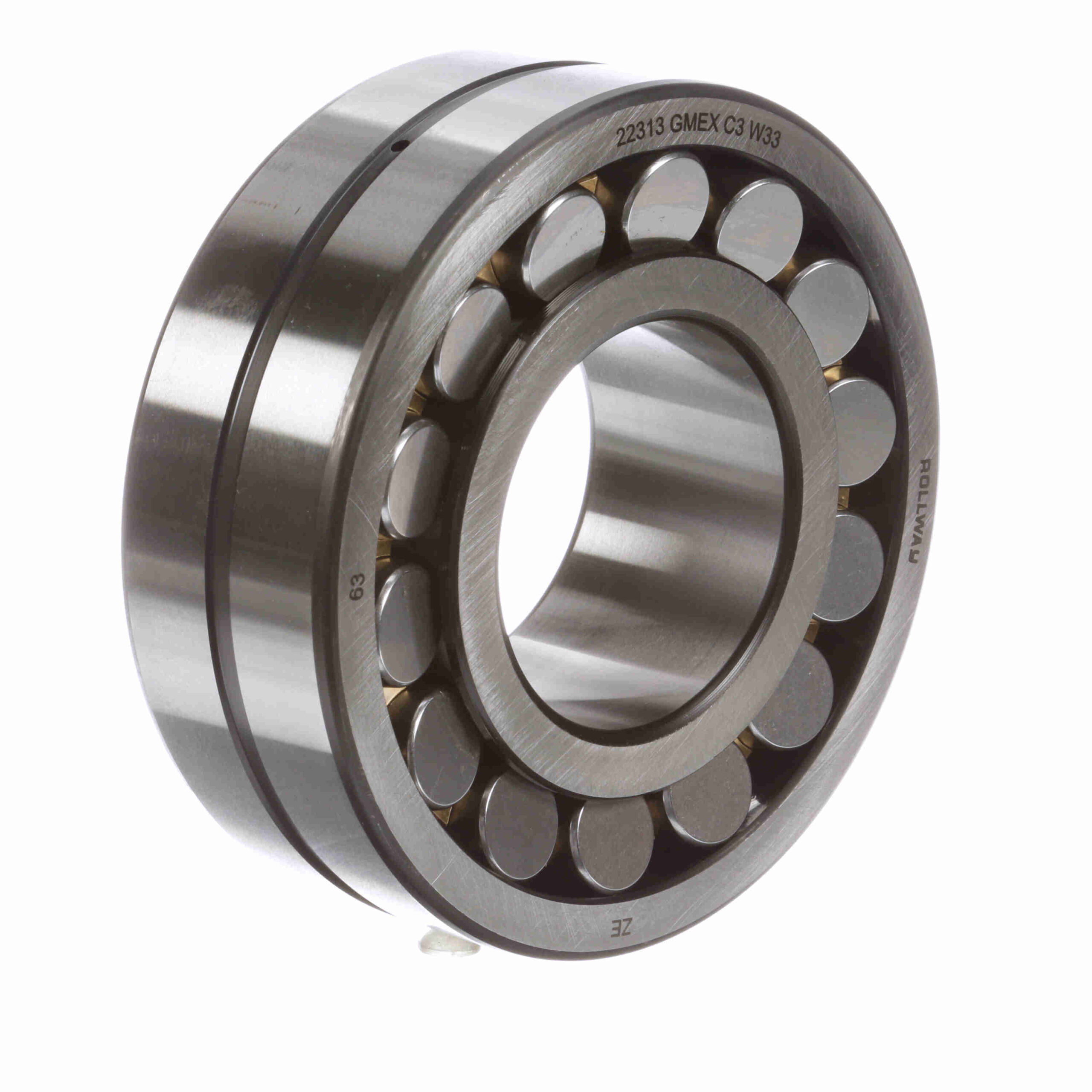

Rollway Radial Spherical Roller Bearing – Straight Bore – 22313 GMEX C3 W33
$337.35
Availability: 4 in stock
Availability: 4 in stock
| Angular Misalignment: | 2° | Series: | 22300 |
|---|---|---|---|
| Radial Clearance: | C3 | Cage Material: | Brass |
| Bore Type: | Straight | Seal Type: | Unsealed |
| Number of Rows: | 2 | Misalignment: | Yes |
| Static Load Rating (kN): | 336 kN | Material: | 52100 Bearing Steel |
| Rolling Element: | Spherical Roller | Full Complement/Caged: | Caged |
| Duplexing: | No | Speed (Max) Oil (RPM): | 4, 250 rpm |
| Speed (Max) Grease (RPM): | 3, 230 rpm | Platform: | Spherical Radial |
| Sealed: | None | Dynamic Load Rating (kN): | 336 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410092556 |
| Weight: | 8.00 LB | Packaged Length: | 6.6 Inches |
| Packaged Width: | 6.3 Inches | Packaged Height: | 2.3 Inches |
| Country of Origin: | China |
