- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22309 GMEX C3 W33

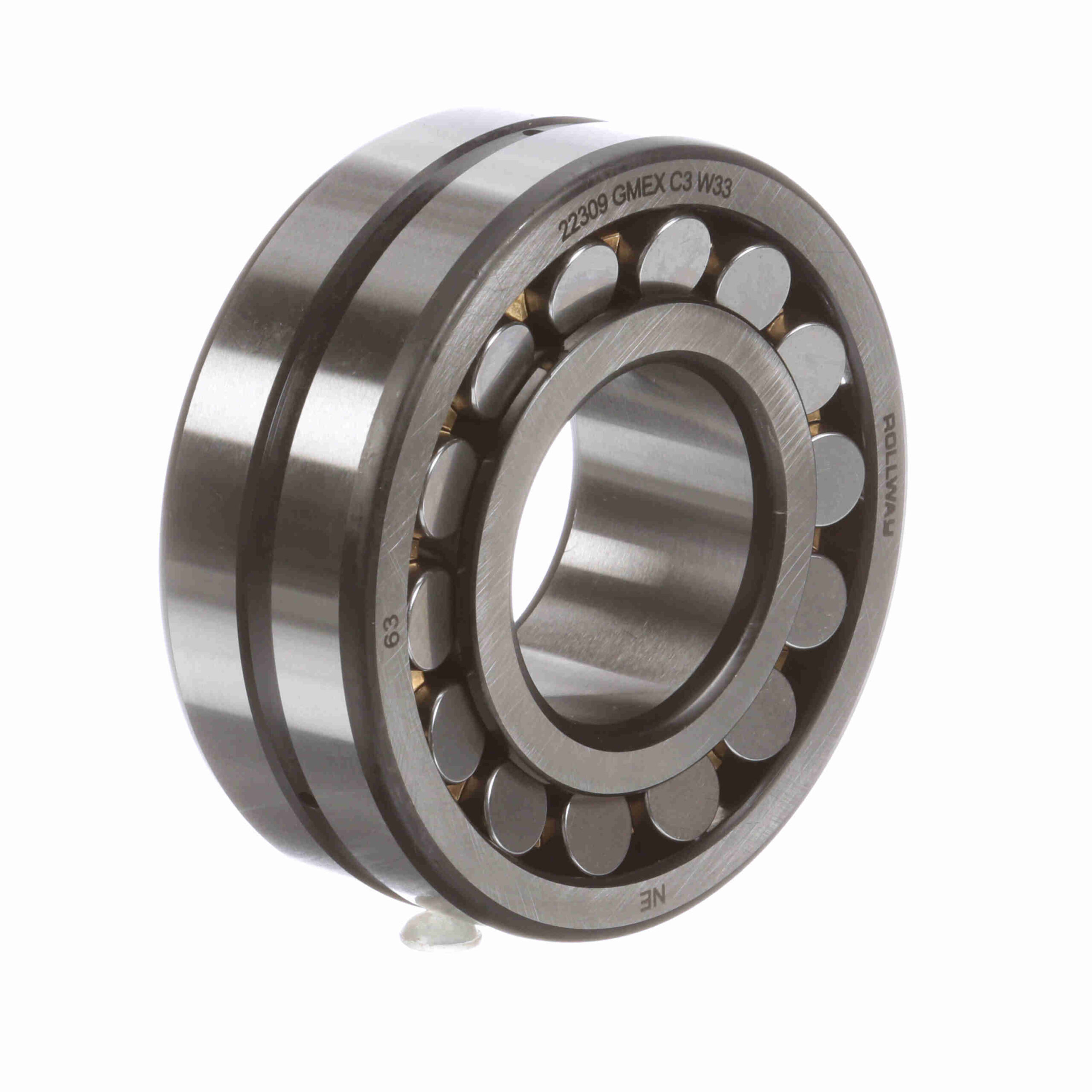

Rollway Radial Spherical Roller Bearing – Straight Bore – 22309 GMEX C3 W33
$226.84
Availability: 2 in stock
Availability: 2 in stock
| Radial Clearance: | C3 | Cage Material: | Brass |
|---|---|---|---|
| Bore Type: | Straight | Series: | 22300 |
| Angular Misalignment: | 2° | Seal Type: | Unsealed |
| Static Load Rating (kN): | 170.9 kN | Material: | 52100 Bearing Steel |
| Rolling Element: | Spherical Roller | Misalignment: | Yes |
| Number of Rows: | 2 | Full Complement/Caged: | Caged |
| Speed (Max) Grease (RPM): | 4, 505 rpm | Platform: | Spherical Radial |
| Duplexing: | No | Speed (Max) Oil (RPM): | 5, 950 rpm |
| Sealed: | None | Dynamic Load Rating (kN): | 170.9 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410092464 |
| Weight: | 3.10 LB | Packaged Length: | 4.2 Inches |
| Packaged Width: | 4.2 Inches | Packaged Height: | 1.5 Inches |
| Country of Origin: | China |
