- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22308 GMEX C3 W33

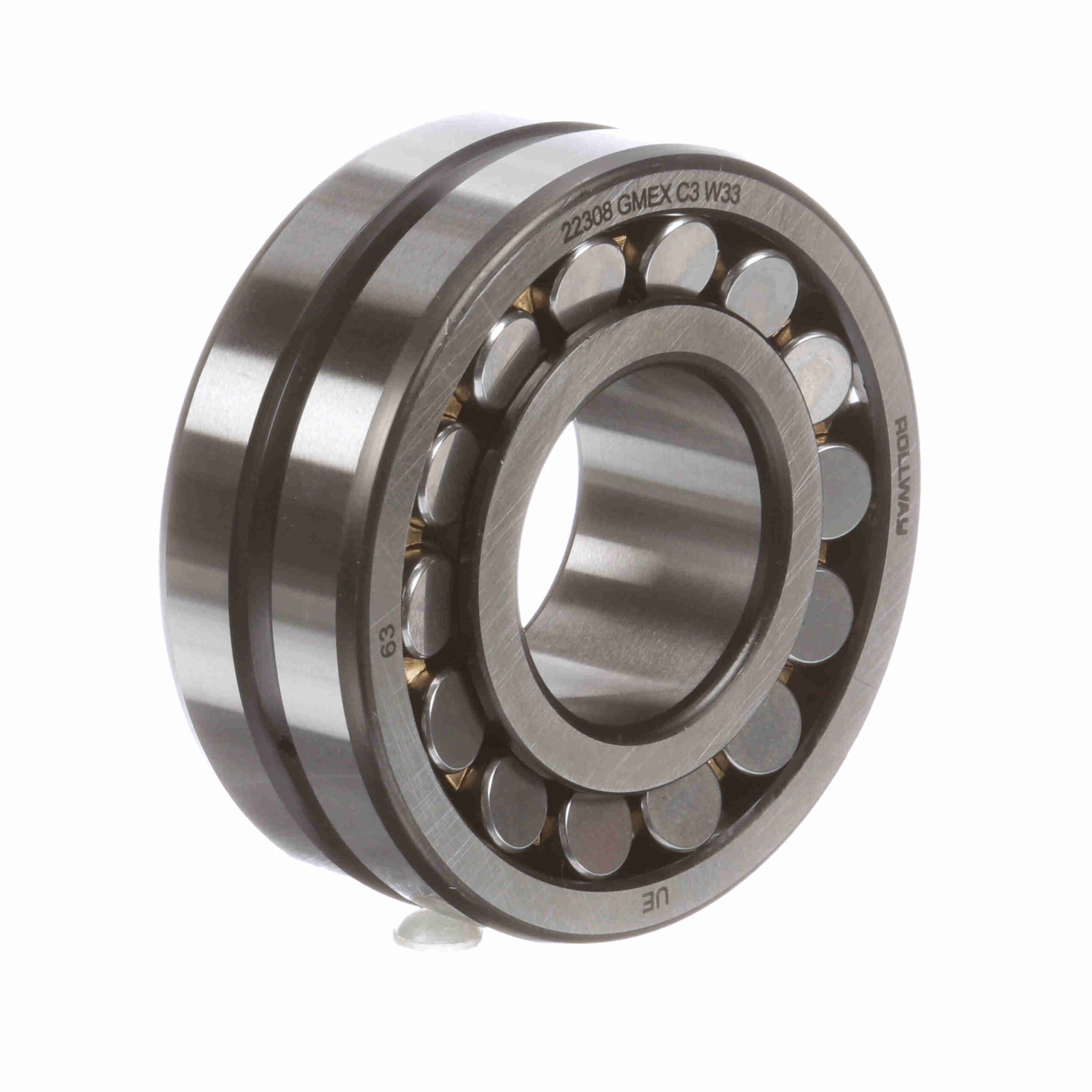

Rollway Radial Spherical Roller Bearing – Straight Bore – 22308 GMEX C3 W33
$215.65
Out of stock
Out of stock
| Series: | 22300 | Angular Misalignment: | 2° |
|---|---|---|---|
| Cage Material: | Brass | Radial Clearance: | C3 |
| Bore Type: | Straight | Seal Type: | Unsealed |
| Number of Rows: | 2 | Static Load Rating (kN): | 140.4 kN |
| Rolling Element: | Spherical Roller | Misalignment: | Yes |
| Material: | 52100 Bearing Steel | Duplexing: | No |
| Sealed: | None | Speed (Max) Oil (RPM): | 6, 800 rpm |
| Platform: | Spherical Radial | Full Complement/Caged: | Caged |
| Speed (Max) Grease (RPM): | 5, 100 rpm | Dynamic Load Rating (kN): | 140.4 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410092433 |
| Weight: | 2.32 LB | Packaged Length: | 4.2 Inches |
| Packaged Width: | 4.2 Inches | Packaged Height: | 1.5 Inches |
| Country of Origin: | China |
