- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22220 GMEX C3 W33

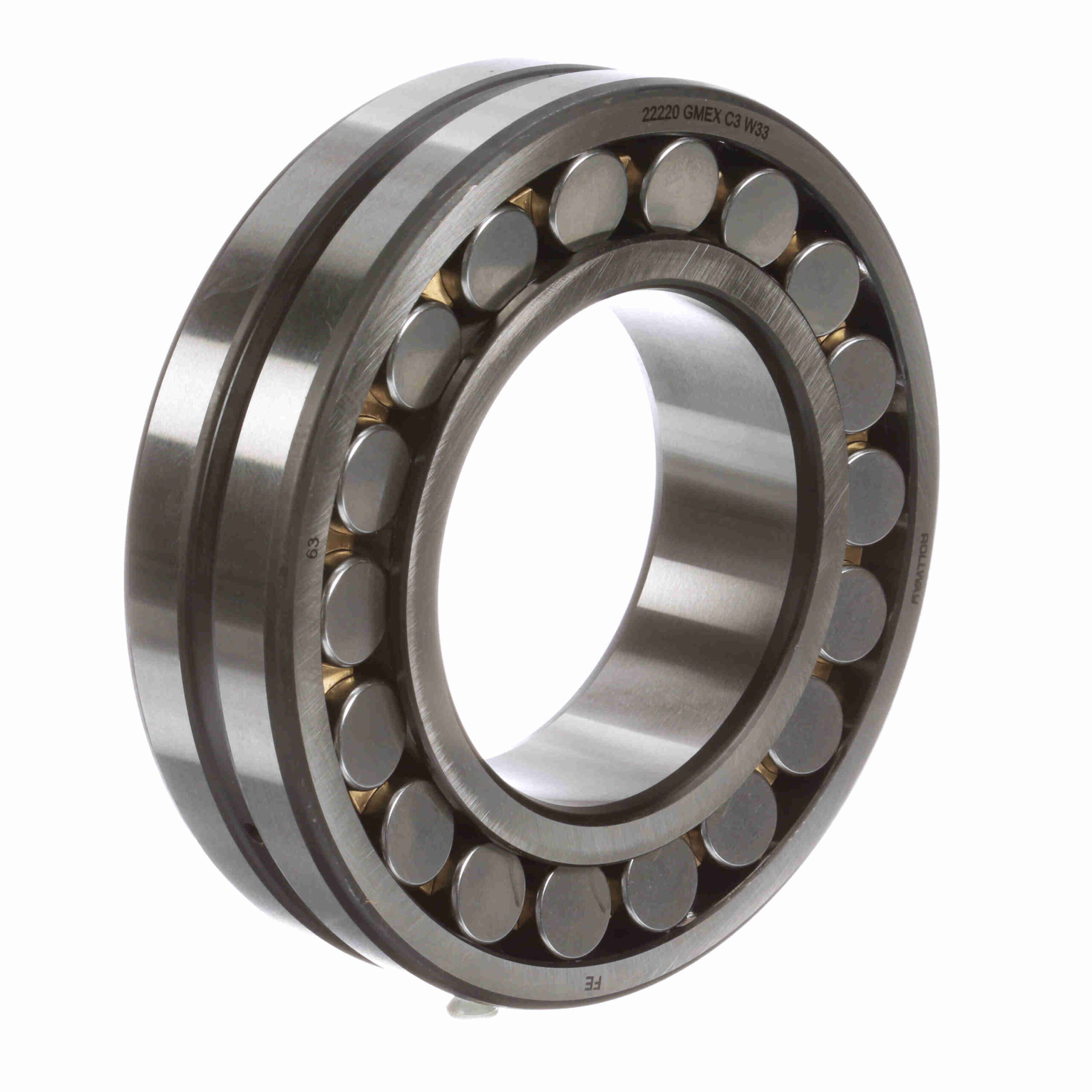

Rollway Radial Spherical Roller Bearing – Straight Bore – 22220 GMEX C3 W33
$491.23
Availability: 11 in stock
Availability: 11 in stock
| Radial Clearance: | C3 | Series: | 22200 |
|---|---|---|---|
| Bore Type: | Straight | Angular Misalignment: | 1.5° |
| Cage Material: | Brass | Seal Type: | Unsealed |
| Material: | 52100 Bearing Steel | Number of Rows: | 2 |
| Rolling Element: | Spherical Roller | Misalignment: | Yes |
| Static Load Rating (kN): | 399 kN | Full Complement/Caged: | Caged |
| Duplexing: | No | Sealed: | None |
| Platform: | Spherical Radial | Speed (Max) Oil (RPM): | 3, 825 rpm |
| Speed (Max) Grease (RPM): | 2, 890 rpm | Dynamic Load Rating (kN): | 399 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410092396 |
| Weight: | 11.18 LB | Packaged Length: | 8.2 Inches |
| Packaged Width: | 7.7 Inches | Packaged Height: | 2.7 Inches |
| Country of Origin: | China |
