- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22218 GMEX W33

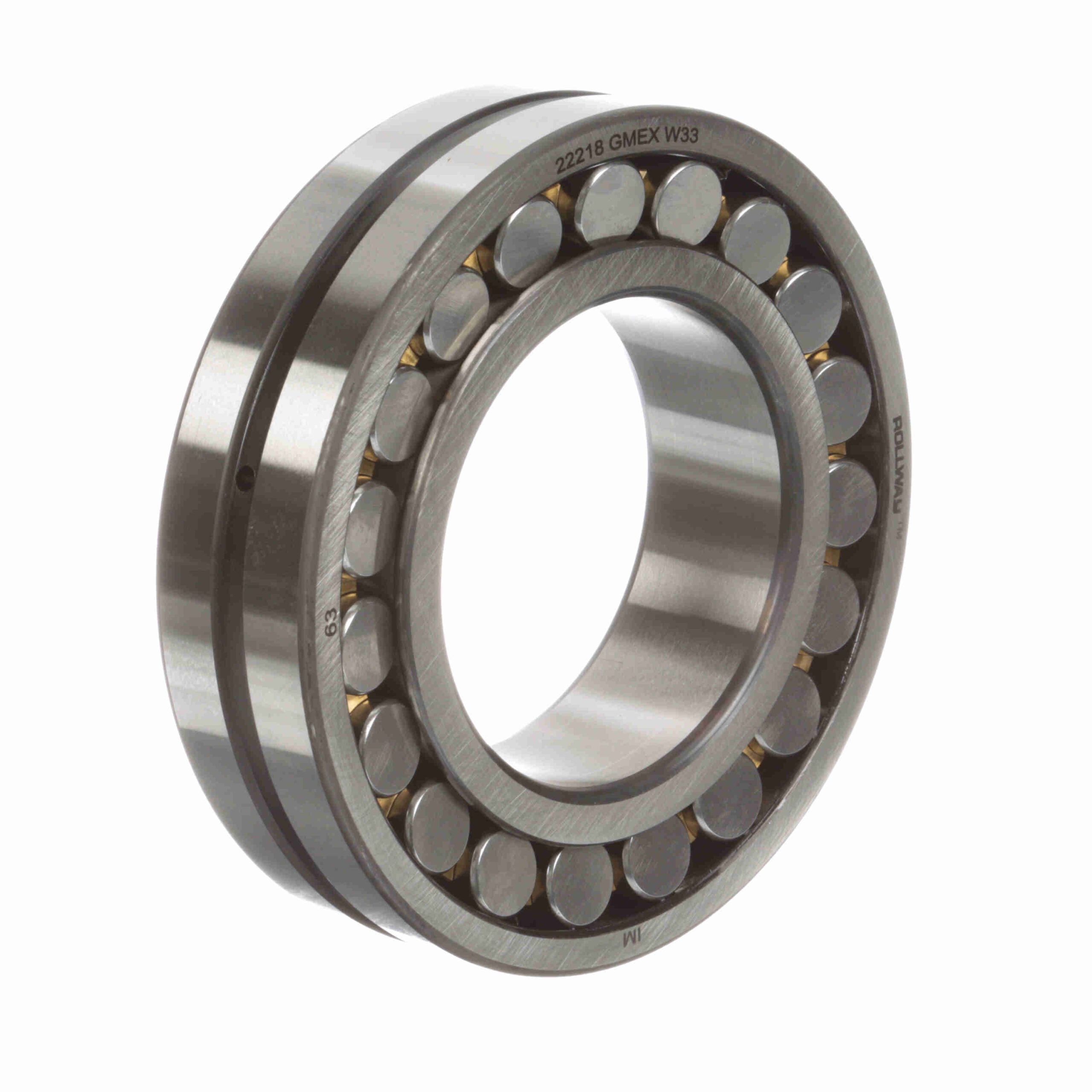

Rollway Radial Spherical Roller Bearing – Tapered Bore – 22218 GMEX W33
$375.46
Availability: 41 in stock
Availability: 41 in stock
| Cage Material: | Brass | Angular Misalignment: | 1.5° |
|---|---|---|---|
| Series: | 22200 | Radial Clearance: | C0 |
| Bore Type: | Tapered | Seal Type: | Unsealed |
| Misalignment: | Yes | Rolling Element: | Spherical Roller |
| Static Load Rating (kN): | 318 kN | Material: | 52100 Bearing Steel |
| Number of Rows: | 2 | Sealed: | None |
| Speed (Max) Oil (RPM): | 4, 505 rpm | Full Complement/Caged: | Caged |
| Platform: | Spherical Radial | Speed (Max) Grease (RPM): | 3, 230 rpm |
| Duplexing: | No | Dynamic Load Rating (kN): | 318 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410092341 |
| Weight: | 7.69 LB | Packaged Length: | 7.1 Inches |
| Packaged Width: | 7.4 Inches | Packaged Height: | 2.3 Inches |
| Country of Origin: | China |
