- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22211 GMEX C3 W33

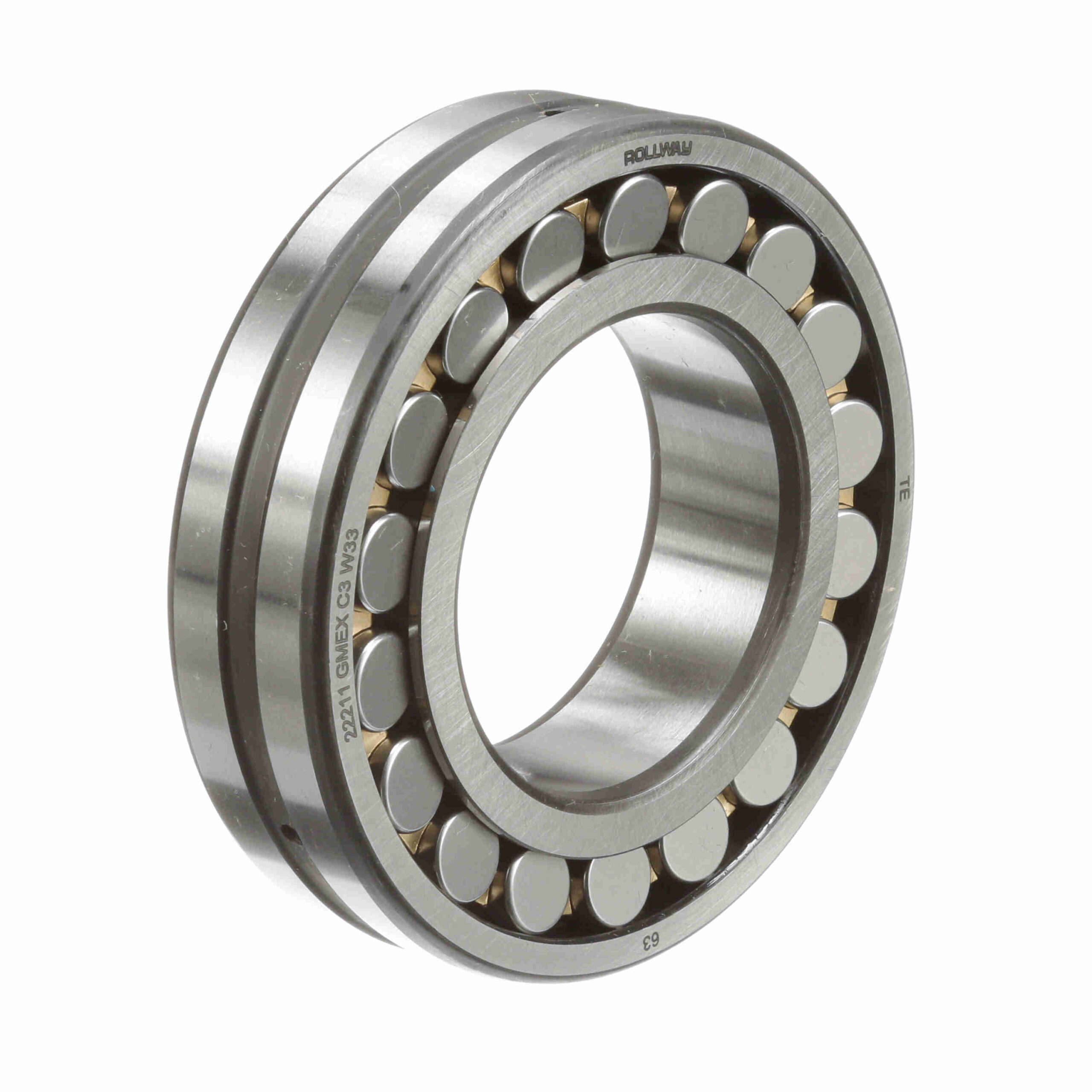

Rollway Radial Spherical Roller Bearing – Straight Bore – 22211 GMEX C3 W33
$179.18
Availability: 30 in stock
Availability: 30 in stock
| Radial Clearance: | C3 | Series: | 22200 |
|---|---|---|---|
| Angular Misalignment: | 1.5° | Bore Type: | Straight |
| Cage Material: | Brass | Seal Type: | Unsealed |
| Material: | 52100 Bearing Steel | Number of Rows: | 2 |
| Misalignment: | Yes | Static Load Rating (kN): | 123 kN |
| Rolling Element: | Spherical Roller | Duplexing: | No |
| Speed (Max) Oil (RPM): | 7, 225 rpm | Full Complement/Caged: | Caged |
| Sealed: | None | Platform: | Spherical Radial |
| Speed (Max) Grease (RPM): | 5, 355 rpm | Dynamic Load Rating (kN): | 123 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410092044 |
| Weight: | 1.86 LB | Packaged Length: | 3.9 Inches |
| Packaged Width: | 4.1 Inches | Packaged Height: | 1.2 Inches |
| Country of Origin: | China |
