- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments

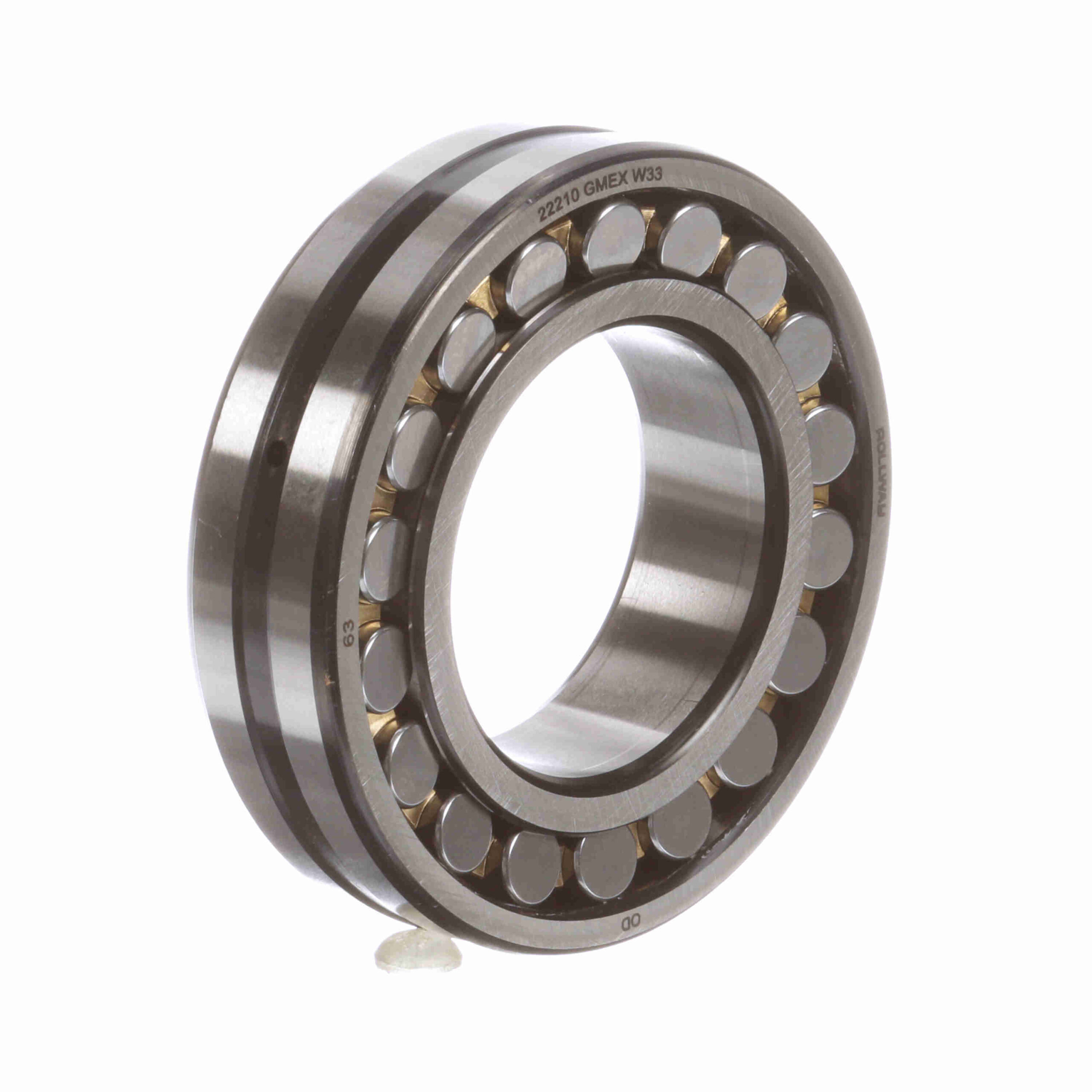

22210 GMEX W33
Rollway Radial Spherical Roller Bearing – Straight Bore – 22210 GMEX W33
$161.03
Availability: 8 in stock
Availability: 8 in stock
| Radial Clearance: | C0 | Angular Misalignment: | 1.5° |
|---|---|---|---|
| Cage Material: | Brass | Bore Type: | Straight |
| Series: | 22200 | Seal Type: | Unsealed |
| Static Load Rating (kN): | 102 kN | Material: | 52100 Bearing Steel |
| Number of Rows: | 2 | Misalignment: | Yes |
| Rolling Element: | Spherical Roller | Speed (Max) Grease (RPM): | 5, 950 rpm |
| Sealed: | None | Full Complement/Caged: | Caged |
| Duplexing: | No | Speed (Max) Oil (RPM): | 8, 075 rpm |
| Platform: | Spherical Radial | Dynamic Load Rating (kN): | 102 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410092037 |
| Weight: | 1.42 LB | Packaged Length: | 4.2 Inches |
| Packaged Width: | 4.1 Inches | Packaged Height: | 1.2 Inches |
| Country of Origin: | China |
