- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
22209 GMEX C3 W33

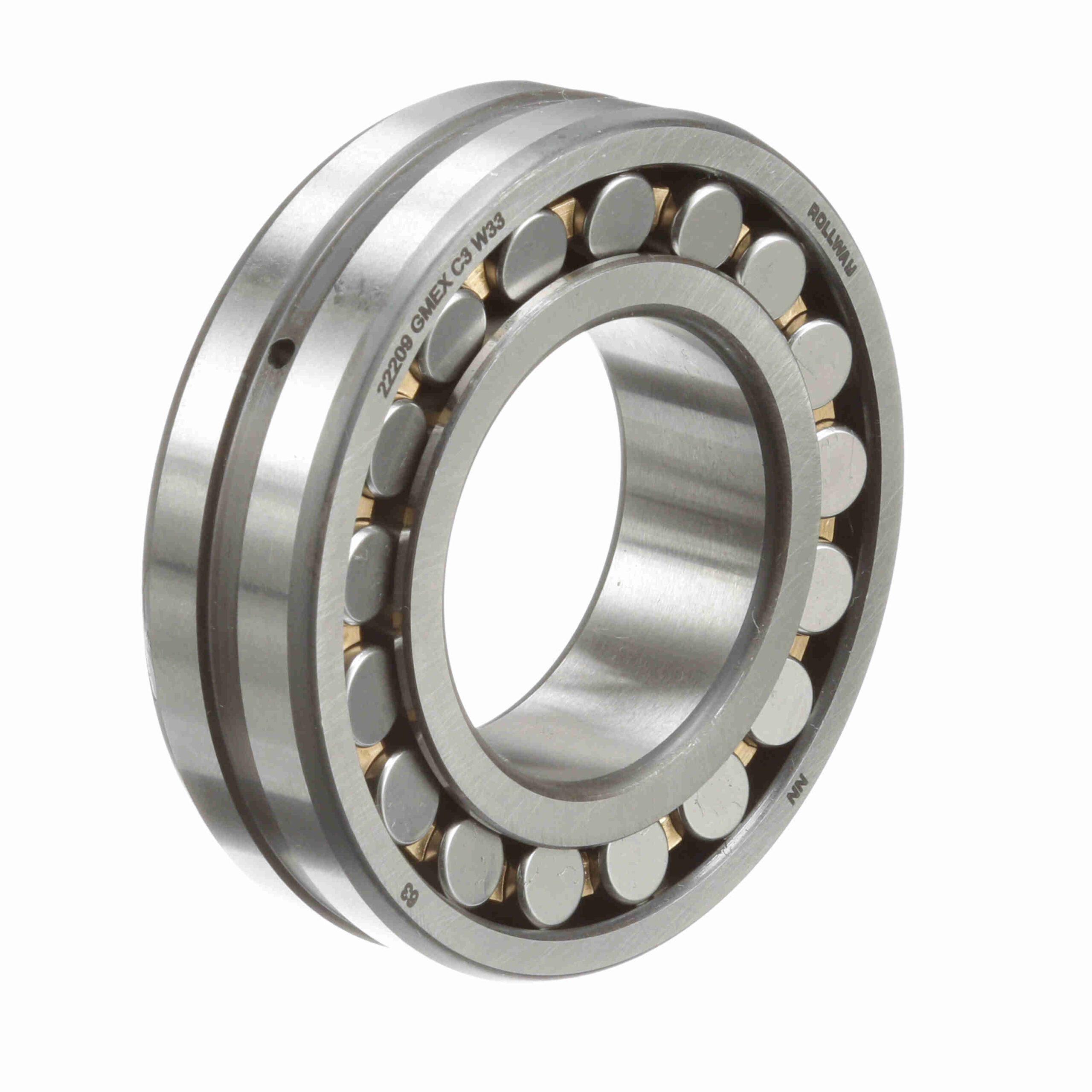

Rollway Radial Spherical Roller Bearing – Straight Bore – 22209 GMEX C3 W33
$152.84
Availability: 3 in stock
Availability: 3 in stock
| Cage Material: | Brass | Bore Type: | Straight |
|---|---|---|---|
| Series: | 22200 | Angular Misalignment: | 1.5° |
| Radial Clearance: | C3 | Seal Type: | Unsealed |
| Misalignment: | Yes | Rolling Element: | Spherical Roller |
| Number of Rows: | 2 | Material: | 52100 Bearing Steel |
| Static Load Rating (kN): | 99.2 kN | Duplexing: | No |
| Sealed: | None | Platform: | Spherical Radial |
| Full Complement/Caged: | Caged | Speed (Max) Oil (RPM): | 8, 500 rpm |
| Speed (Max) Grease (RPM): | 6, 375 rpm | Dynamic Load Rating (kN): | 99.2 kN |
| Mounting Method: | Shaft Mount | UPC: | 637410091962 |
| Weight: | 1.32 LB | Packaged Length: | 3.6 Inches |
| Packaged Width: | 3.4 Inches | Packaged Height: | 1.2 Inches |
| Country of Origin: | China |
