- Double row spherical rollers
- Outer ring: Spherical raceway
- Inner Ring: 2 spherical raceway
- Axial and radial loads
- Absorb shaft misalignments
21316 GMEX K W33

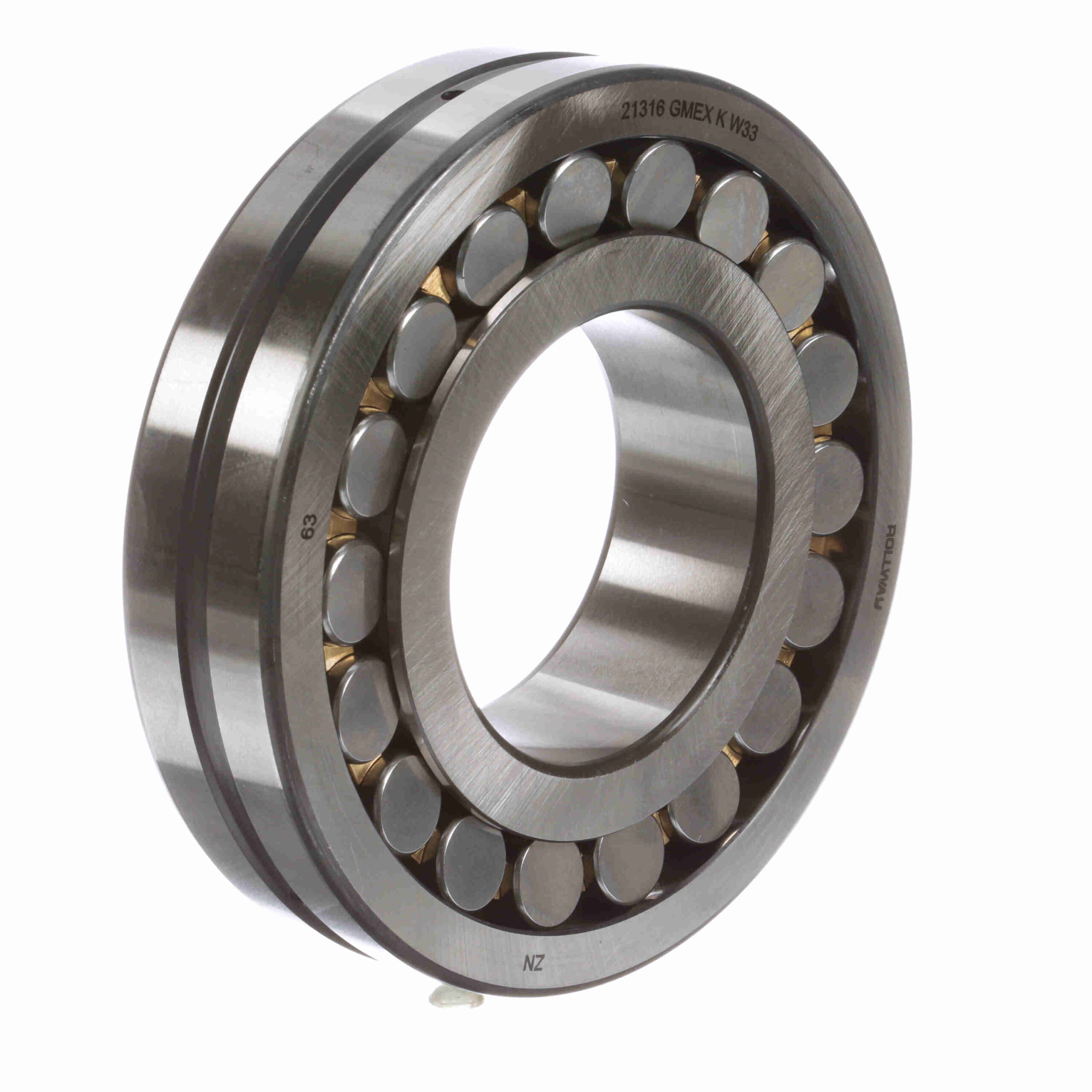

Rollway Radial Spherical Roller Bearing – Tapered Bore – 21316 GMEX K W33
$1,212.83
Out of stock
Out of stock
| Cage Material: | Brass | Bore Type: | Tapered |
|---|---|---|---|
| Series: | 21300 | Angular Misalignment: | 1° |
| Radial Clearance: | C0 | Seal Type: | Unsealed |
| Material: | 52100 Bearing Steel | Misalignment: | Yes |
| Static Load Rating (kN): | 310 kN | Rolling Element: | Spherical Roller |
| Number of Rows: | 2 | Duplexing: | No |
| Speed (Max) Grease (RPM): | 3, 230 rpm | Speed (Max) Oil (RPM): | 4, 505 rpm |
| Sealed: | None | Full Complement/Caged: | Caged |
| Platform: | Spherical Radial | Dynamic Load Rating (kN): | 310 kN |
| Mounting Method: | Adapter Mount | UPC: | 637410091894 |
| Weight: | 10.18 LB | Packaged Length: | 8.6 Inches |
| Packaged Width: | 8.1 Inches | Packaged Height: | 1.4 Inches |
| Country of Origin: | China |
