- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
20H150SH

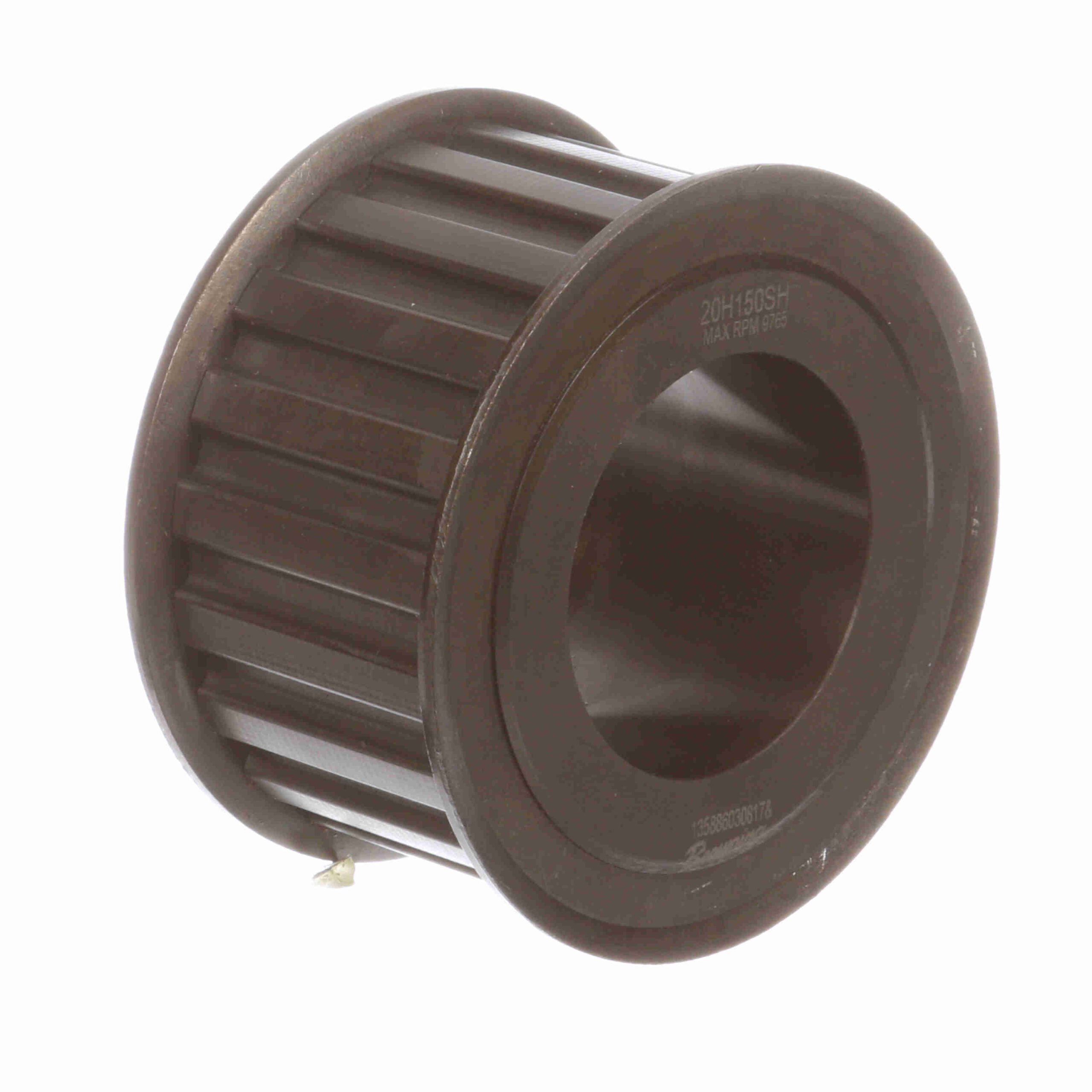

Browning Steel Bushed Bore Gearbelt Pulley – 20H150SH
$309.07
Out of stock
Out of stock
| Width (mm): | 38.1 mm | Bore Range: | 1/2 to 1 5/8 |
|---|---|---|---|
| Number of teeth: | 20 | Product Type: | Gearbelt Pulley |
| Material: | Steel | Bore Type: | Bushed Bore |
| Flange (in): | 3.42 in | Belt Section: | H |
| Outside Diameter (in): | 3.129 in | Inside Diameter (in): | 1.78125 in |
| Outside Diameter (mm): | 79.4766 mm | Pitch Diameter (in): | 3.183 in |
| Width (in): | 1.5 in | Face Width: | 1.312 |
| Pulley Construction: | Solid | Number of Hubs: | 1 |
| Length Through Bore: | 1.2 | With Flanges: | With Flanges |
| Hub Projection: | 0.95 | Overall Length (in): | 2.26225 in |
| Hub Diameter (in): | 2.7 in | UPC: | 662289346455 |
| Weight: | 2.38 LB | Packaged Length: | 4.06 Inches |
| Packaged Width: | 4.06 Inches | Packaged Height: | 1.88 Inches |
| HTC: | 8483.50.9080 | Country of Origin: | United States of America |
