- Exclusive Taper Bushing: Single TorqTaper Bushing installs from either side of the unit for easy on – easy off mounting, with stabilizer ring.
- Standard Bearings: Commercially available Tapered Roller Bearings provide maximum overhung load capacity.
- Commercially available double lip seals ride on plunge ground shafts, with exclusive barrier seal arrangement.
- Options and Accessories: Complete range of motor mounts, belt guards, backstops, and screw conveyor drive options.
207SMTP09

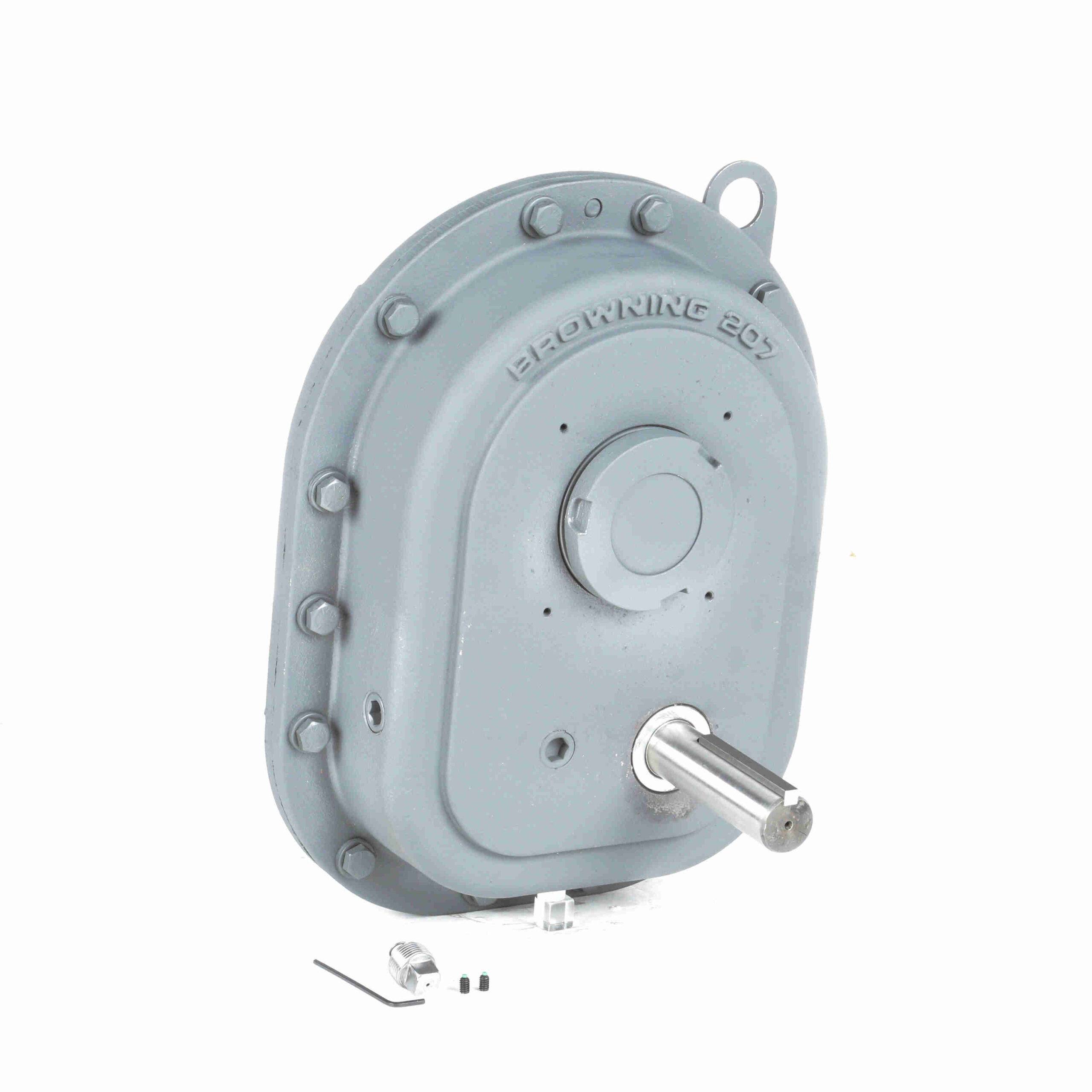

Browning Torque Taper Plus Shaft Mount Reducers Cast Iron Shaft Mount Tapered Bore Reducer – 207SMTP09
$11,552.59
Out of stock
Out of stock
| Input Torque: | 36.013 in-Lbs @1750 input rpm, 1 HP | Output Speed: | 17 |
|---|---|---|---|
| Efficiency: | 80 | Input Speed: | 1750 |
| Ratio: | 9:1 | Product Type: | TorqTaper Plus (SMTP) |
| Bolt Size (in): | 0.4375 in | Housing Width (in): | 14.5 in |
| Housing Length (in): | 9.75 in | Housing Height (in): | 18.47 in |
| Standards met: | AGMA | Maximum Output Size (in): | 2.4375 in |
| Maximum Output Bore: | 2.4375 | Input Style: | Shaft |
| Mounting Style: | Shaft mount | Ratio Range: | 10:1 |
| Reducer Size: | 207 | Gear Type: | Helical |
| Drive Type: | Torque Arm | Output Bore: | Tapered Bushing |
| Reduction: | Double | Maximum Output RPM: | 200 |
| Input Shaft Diameter: | 1.438 | Housing Material: | Cast Iron |
| Output Shaft: | Tapered Bore | Output Torque Rating (in-lb): | 3707.29 in-Lbs @1750 input rpm, 1 HP in/lbs |
| Input Shaft Keyseat (in): | .375 x .375 x 3.75 in | UPC: | 662460486284 |
| Weight: | 155.00 LB | Packaged Length: | 22.5 Inches |
| Packaged Width: | 18.5 Inches | Packaged Height: | 16.5 Inches |
| HTC: | 8483.40.1000 | Country of Origin: | United States of America |
