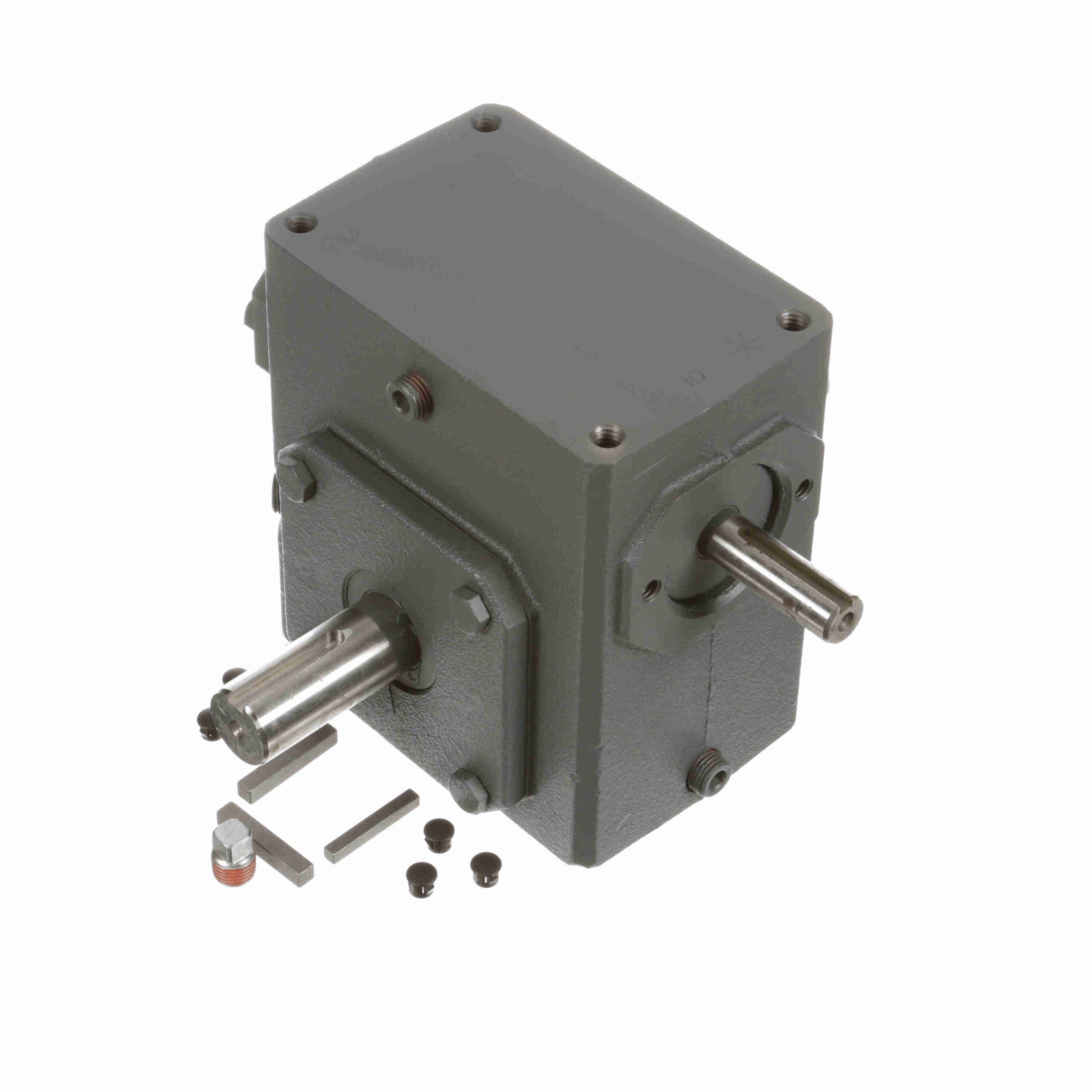

206ULR10

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Shaft Seal Material:	Nitrile	Key Sq.:	0.1875
Key Length:	1.38	Thrust Rating - output shaft:	1580
Efficiency:	80	Reducer Style:	Standard
Input Speed:	1750	Ratio:	10:1
Output Shaft Assembly Code:	D	Output Shaft Orientation:	LR
Input Style:	Solid Shaft	Product Type:	Worm Speed Reducer
Output Diameter (in):	1.000 in	Series Code:	Raider
Input Diameter (in):	0.625 in	Output RPM:	175
Input Keyway:	3/16 X 1.50 in	Service Factor:	1
Input HP @ 1750 RPM:	2.24	Mounting Style:	No Base
Assembly:	U-LR	Ratio Range:	10:01
Gear Type:	Worm	Reducer:	Worm - Right Angle
Output Key:	1/4 X 1.75	No. of Gear Reductions:	Single
Center Distance (in):	2.06	Input RPM:	1, 75
Model Code:	206U	Output Shaft Direction:	Double
Output Torque Rating (in-lb):	805 in-lbs @1750 input RPM in/lbs	Overhung Load Rating (Output Shaft(lb)):	1, 078 lb
Output Shaft:	Solid Shaft	Housing Material:	Cast Iron
UPC:	6, 62288E+11	Weight:	25.45 LB
Packaged Length:	15.1 Inches	Packaged Width:	11.5 Inches
Packaged Height:	11.6 Inches
