- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
206UH60 107

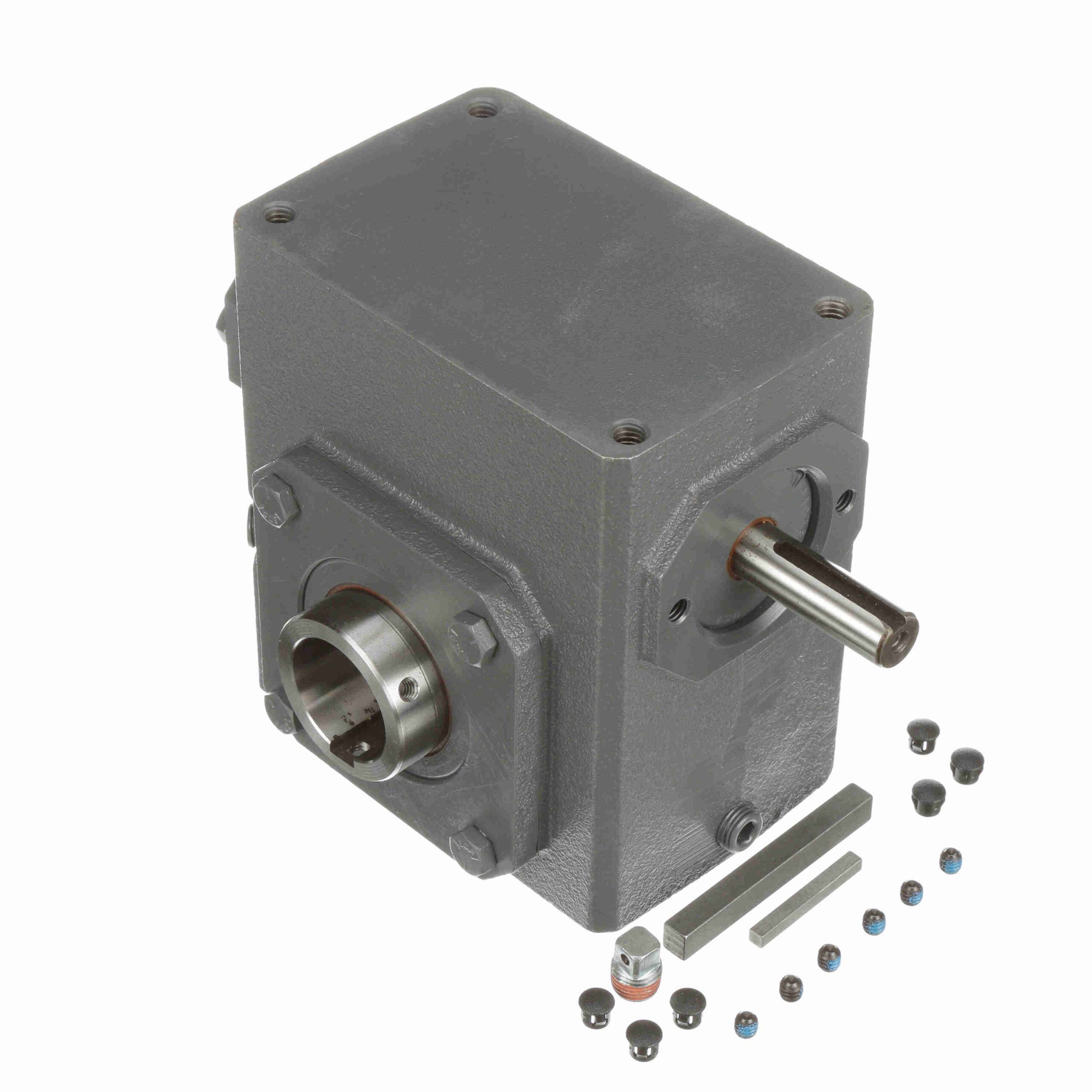

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 206UH60 107
$1,549.75
Out of stock
Out of stock
| Input Speed: | 1750 | Ratio: | 60:1 |
|---|---|---|---|
| Key Sq.: | 0.188 | Thrust Rating - output shaft: | 1144 |
| Efficiency: | 80 | Key Length: | 1.38 |
| Reducer Style: | Standard | Maximum Input HP: | 0.67 hp @ 1750 rpm |
| Manufacturer Reducer Size: | 206 | Output Diameter (in): | 1.438 in |
| Service Factor: | 1 | Ratio Range: | 60:1 |
| Input Style: | Shaft | Input HP @ 1750 RPM: | 0.67 |
| No. of Gear Reductions: | Single | Input Diameter (in): | 0.625 in |
| Product Type: | Worm Speed Reducer | Series Code: | Raider |
| Gear Type: | Worm | Mounting Style: | Shaft Mt |
| Center Distance (in): | 2.06 | Output Shaft Direction: | L or R |
| Housing Material: | Cast Iron | Output Shaft: | Hollow Bore |
| Overhung Load Rating (Output Shaft(lb)): | 1, 415 lb | Output Torque Rating (in-lb): | 940 in-lbs @1750 input RPM in/lbs |
| UPC: | 6, 62288E+11 | Weight: | 26.00 LB |
