- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
206UH40 107

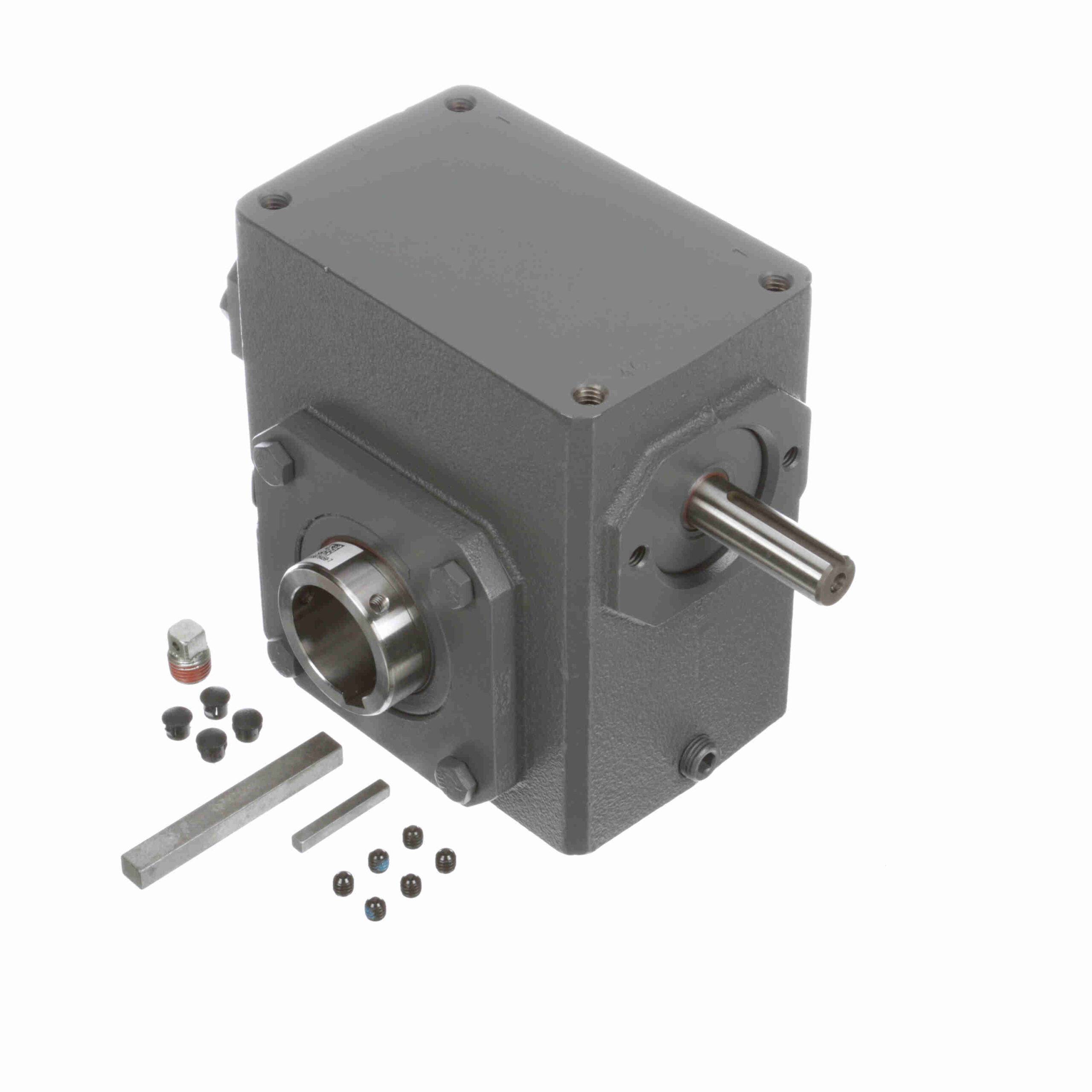

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 206UH40 107
$1,549.75
Out of stock
Out of stock
| Key Sq.: | 0.188 | Efficiency: | 80 |
|---|---|---|---|
| Reducer Style: | Standard | Ratio: | 40:1 |
| Input Speed: | 1750 | Thrust Rating - output shaft: | 1144 |
| Key Length: | 1.38 | Maximum Input HP: | 0.92 hp @ 1750 rpm |
| Manufacturer Reducer Size: | 206 | No. of Gear Reductions: | Single |
| Product Type: | Right Angle | Center Distance (in): | 2.06 |
| Input Style: | Shaft | Input Diameter (in): | 0.625 in |
| Output Diameter (in): | 1.438 in | Gear Type: | Worm |
| Ratio Range: | 40:1 | Mounting Style: | Shaft Mt |
| Service Factor: | 1 | Input HP @ 1750 RPM: | 0.92 |
| Series Code: | Raider | Input Keyway: | 0.19 in |
| Output Shaft Direction: | L or R | Overhung Load Rating (Output Shaft(lb)): | 1, 315 lb |
| Output Shaft: | Hollow Bore | Output Torque Rating (in-lb): | 971 in-lbs @1750 input RPM in/lbs |
| Housing Material: | Cast Iron | UPC: | 6, 62288E+11 |
| Weight: | 26.00 LB |
