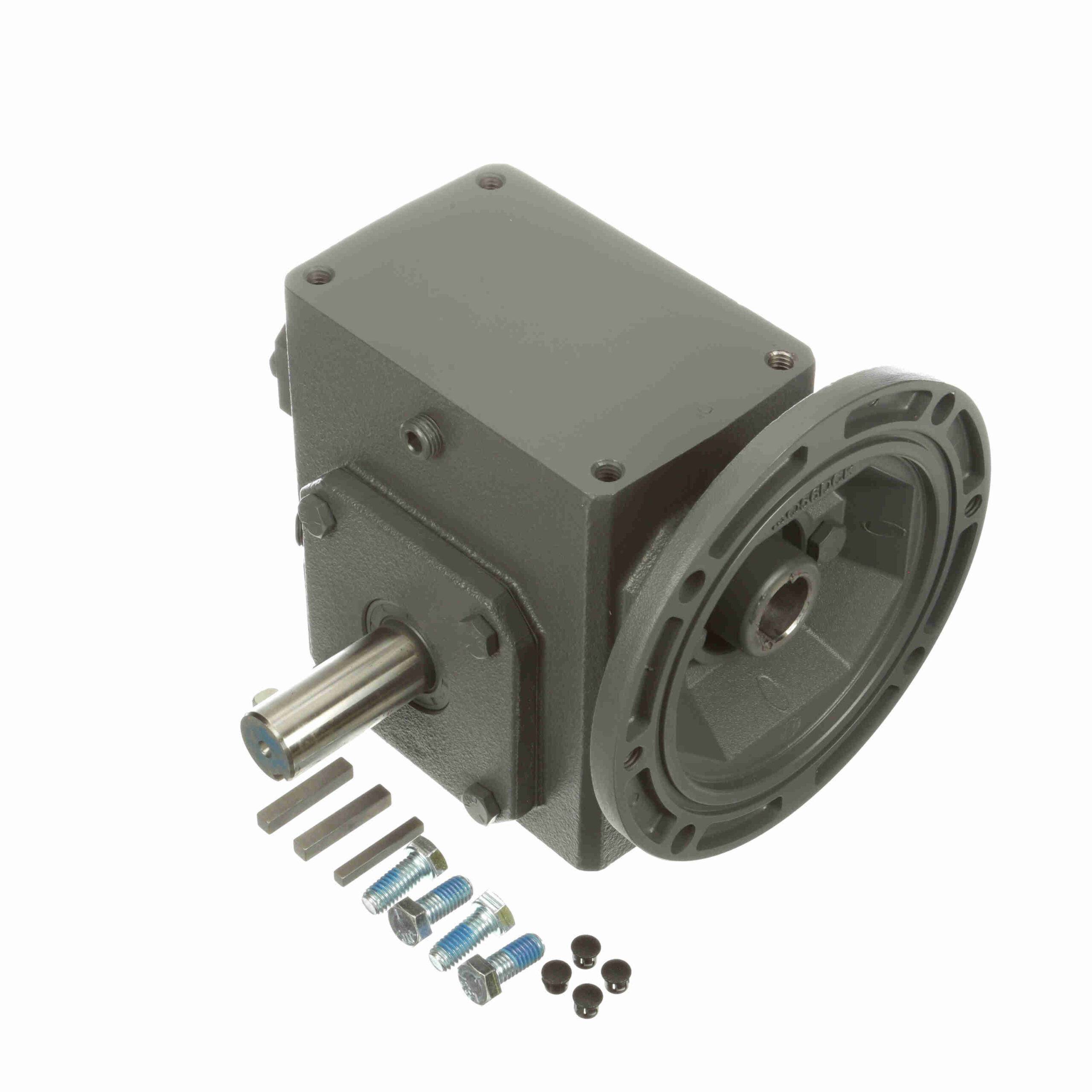

206Q56LR40

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Ratio:	40:1	Thrust Rating - output shaft:	2305
Motor Frame Size:	56C	Shaft Seal Material:	Nitrile
Input Bore (C Face):	0.625	Input Speed:	1750
Efficiency:	80	Reducer Style:	Standard
Input Keyway (C Face):	3/16 X 3/32	Input HP @ 1750 RPM:	0.76
Output Diameter (in):	1.000 in	Reducer:	Worm - Right Angle
Gear Type:	Worm	No. of Gear Reductions:	Single
Assembly:	Q-LR	Series Code:	Raider
Service Factor:	1	Input Diameter (in):	0.625 in
Ratio Range:	40:1	Mounting Style:	No Base
Input RPM:	1, 75	Frame Size:	56C
Center Distance (in):	2.06	Model Code:	206Q
Output Shaft Orientation:	LR	Output RPM:	43.7
Output Key:	1/4 X 1.75	Input Style:	C-Face Quill
Product Type:	Worm Speed Reducer	Output Shaft Assembly Code:	D
Output Shaft Direction:	Double	Overhung Load Rating (Output Shaft(lb)):	1, 078 lb
Output Torque Rating (in-lb):	971 in-lbs @1750 input RPM in/lbs	Output Shaft:	Solid Shaft
Housing Material:	Cast Iron	UPC:	6, 62288E+11
Weight:	29.00 LB	Packaged Length:	10.69 Inches
Packaged Width:	9.06 Inches	Packaged Height:	10.5 Inches
