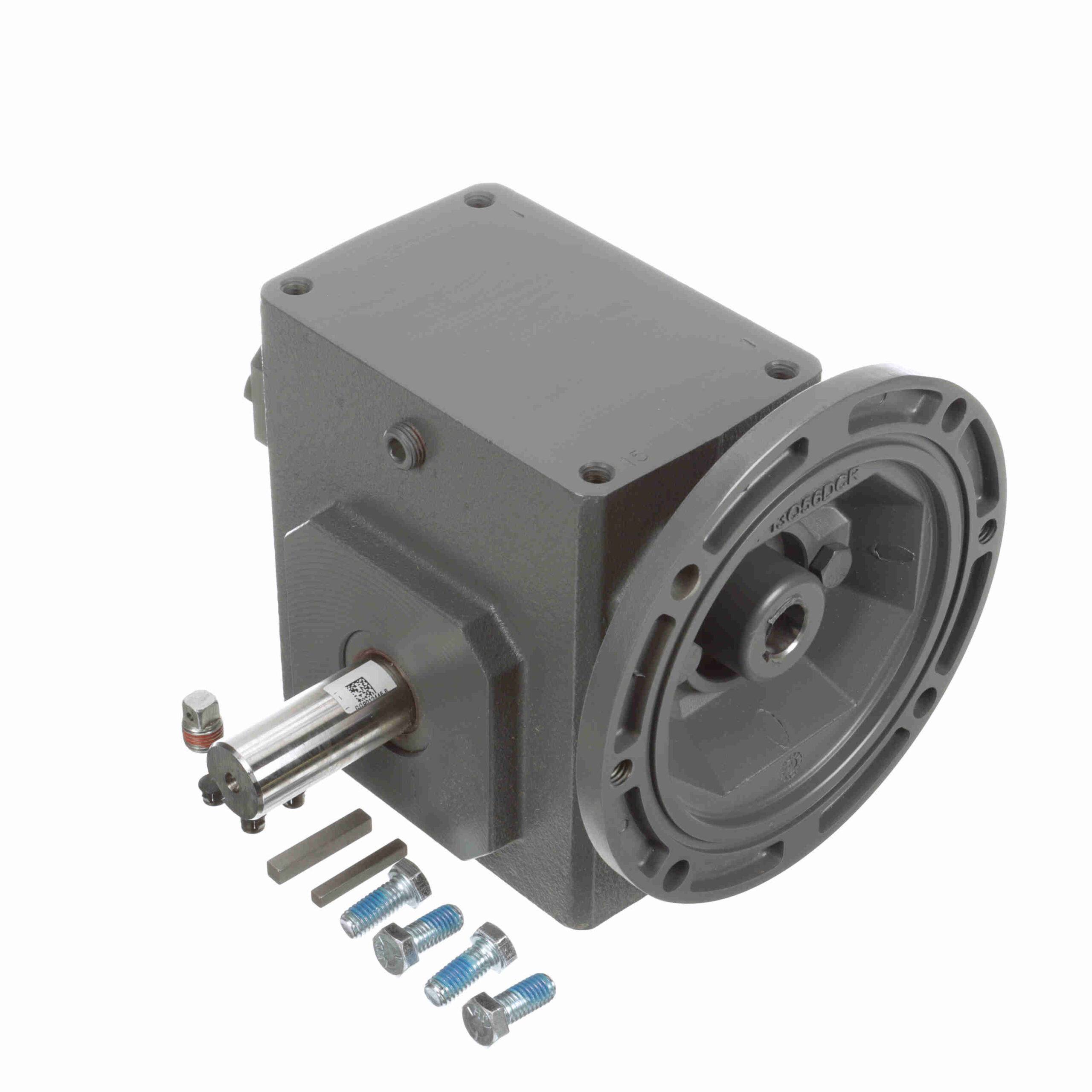

206Q56L15

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Reducer Style:	Standard	Input Bore (C Face):	0.625
Input Speed:	1750	Motor Frame Size:	56C
Input Keyway (C Face):	3/16 X 3/32	Ratio:	15:1
Efficiency:	80	Shaft Seal Material:	Nitrile
Thrust Rating - output shaft:	1820	Mounting Style:	No Base
Center Distance (in):	2.06	Assembly:	Q-L
Ratio Range:	15:1	Output Diameter (in):	1.000 in
Model Code:	206Q	Series Code:	Raider
Product Type:	Worm Speed Reducer	Reducer:	Worm - Right Angle
Input Style:	C-Face Quill	Output Key:	1/4 X 1.75
Output Shaft Assembly Code:	L	Input RPM:	1, 75
Service Factor:	1	No. of Gear Reductions:	Single
Input Diameter (in):	0.625 in	Gear Type:	Worm
Frame Size:	56C	Output RPM:	116.6
Input HP @ 1750 RPM:	1.64	Output Shaft Direction:	Left
Housing Material:	Cast Iron	Output Shaft:	Solid Shaft
Output Torque Rating (in-lb):	897 in-lbs @1750 input RPM in/lbs	Overhung Load Rating (Output Shaft(lb)):	1, 078 lb
UPC:	6, 62288E+11	Weight:	29.00 LB
