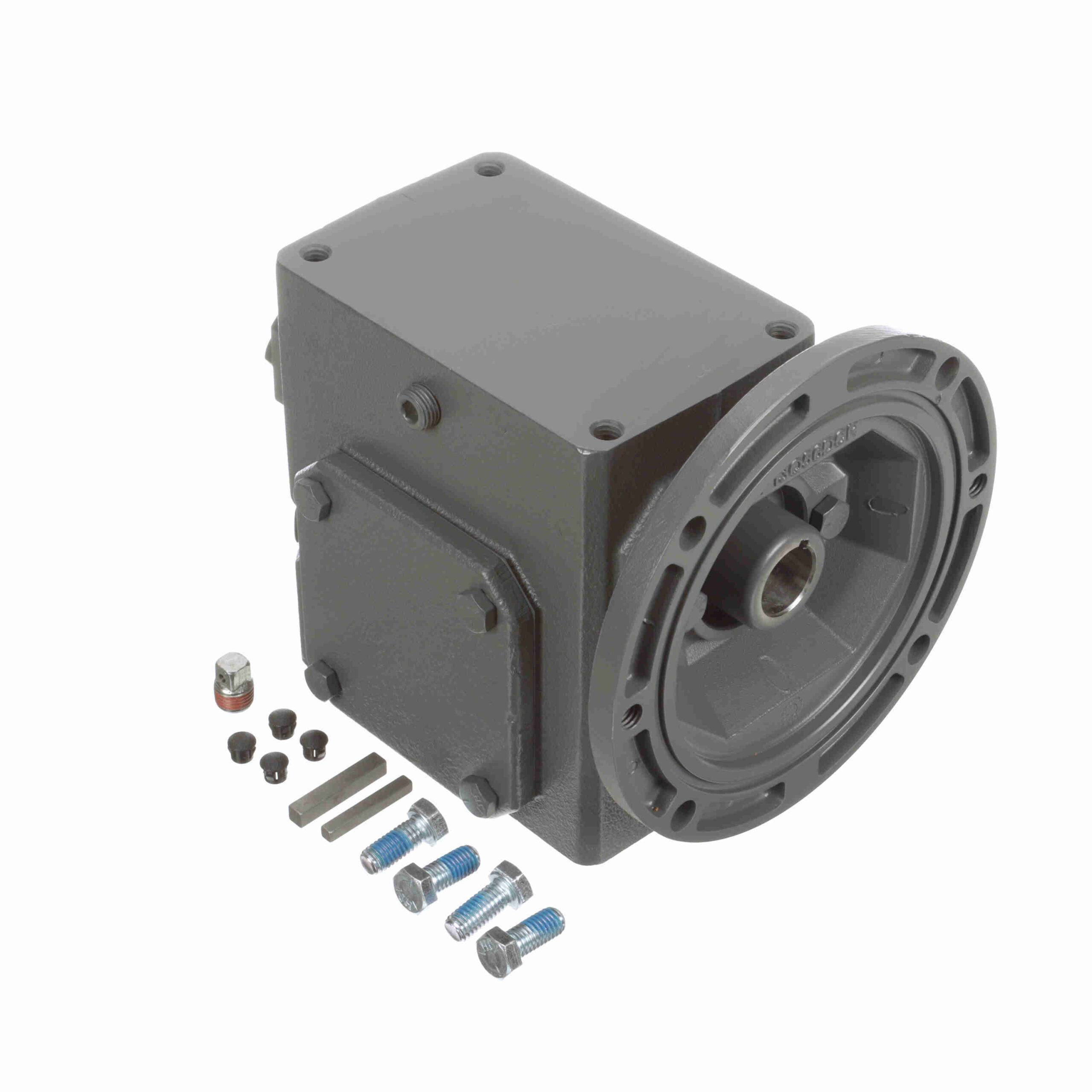

206Q140R20

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Reducer Style:	Standard	Shaft Seal Material:	Nitrile
Input Bore (C Face):	0.875	Efficiency:	80
Ratio:	20:1	Input Speed:	1750
Input Keyway (C Face):	3/16 X 3/32	Thrust Rating - output shaft:	1980
Motor Frame Size:	140TC	Assembly:	Q-R
Input Style:	C-Face Quill	Input HP @ 1750 RPM:	1.33
Output RPM:	87.5	No. of Gear Reductions:	Single
Output Key:	1/4 X 1.75	Service Factor:	1
Output Shaft Assembly Code:	R	Gear Type:	Worm
Product Type:	Worm Speed Reducer	Mounting Style:	No Base
Series Code:	Raider	Output Diameter (in):	1.000 in
Ratio Range:	20:01	Frame Size:	140TC
Center Distance (in):	2.06	Reducer:	Worm - Right Angle
Input Diameter (in):	0.875 in	Model Code:	206Q
Input RPM:	1, 75	Output Shaft Direction:	Right
Output Torque Rating (in-lb):	964 in-lbs @1750 input RPM in/lbs	Output Shaft:	Solid Shaft
Overhung Load Rating (Output Shaft(lb)):	1, 078 lb	Housing Material:	Cast Iron
UPC:	6, 62288E+11	Weight:	29.00 LB
