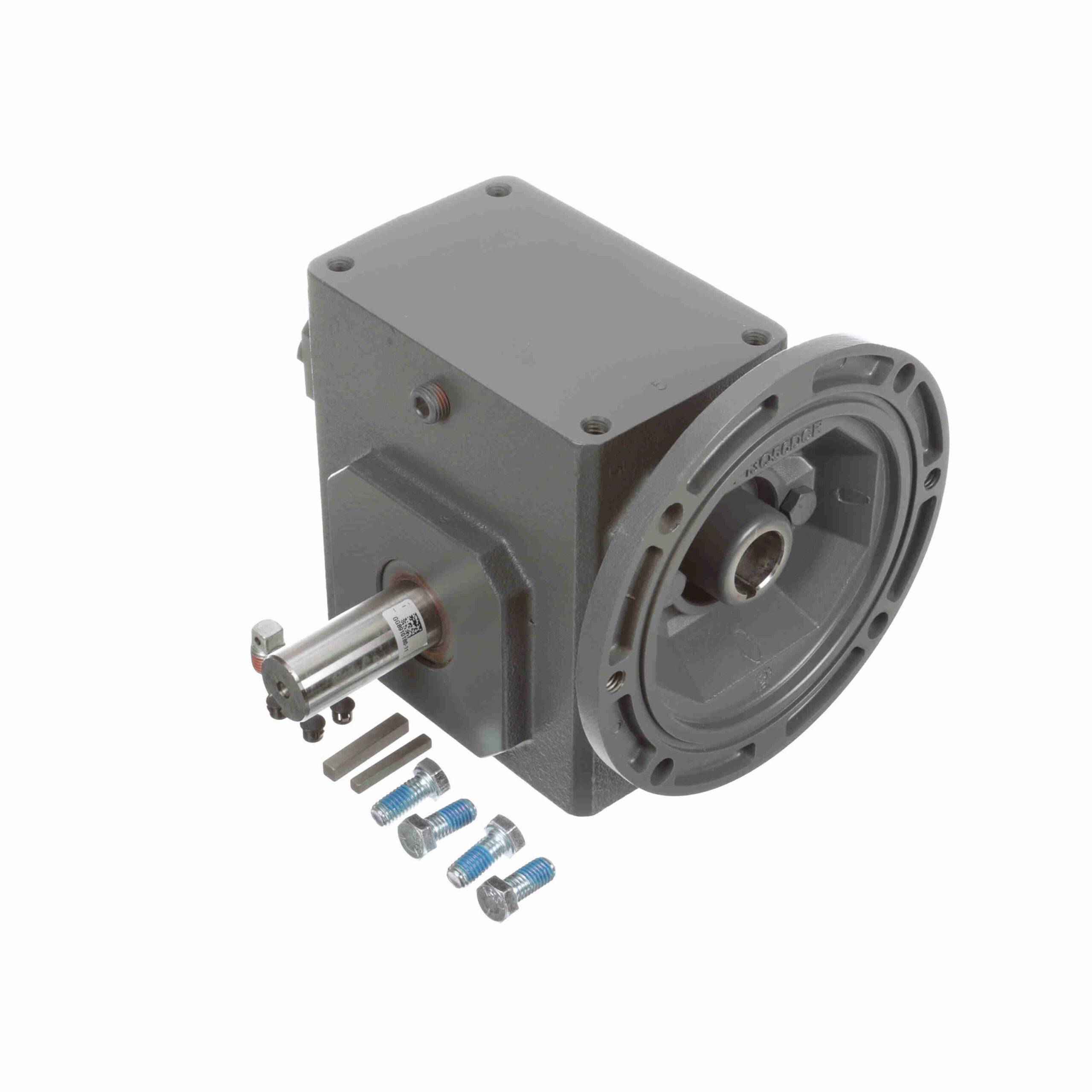

206Q140L5

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Efficiency:	80	Motor Frame Size:	140TC
Ratio:	5:1	Shaft Seal Material:	Nitrile
Input Keyway (C Face):	3/16 X 3/32	Reducer Style:	Standard
Input Speed:	1750	Thrust Rating - output shaft:	1265
Input Bore (C Face):	0.875	Manufacturer Reducer Size:	206
Maximum Input HP:	3.66 hp @ 1750 rpm	Input Diameter (in):	0.875 in
Reducer:	Worm - Right Angle	Product Type:	Worm Speed Reducer
Input HP @ 1750 RPM:	3.5	Assembly:	Q-L
Input Style:	C-Face Quill	No. of Gear Reductions:	Single
Model Code:	206Q	Center Distance (in):	2.06
Frame Size:	140TC	Output RPM:	350
Ratio Range:	5:01	Output Key:	1/4 X 1.75
Output Diameter (in):	1.000 in	Service Factor:	1
Input RPM:	1, 75	Series Code:	Raider
Output Shaft Assembly Code:	L	Mounting Style:	No Base
Gear Type:	Worm	Output Shaft Direction:	Left
Output Shaft:	Solid Shaft	Overhung Load Rating (Output Shaft(lb)):	913 lb
Housing Material:	Cast Iron	Output Torque Rating (in-lb):	614 in-lbs @1750 input RPM in/lbs
UPC:	6, 62288E+11	Weight:	29.00 LB
