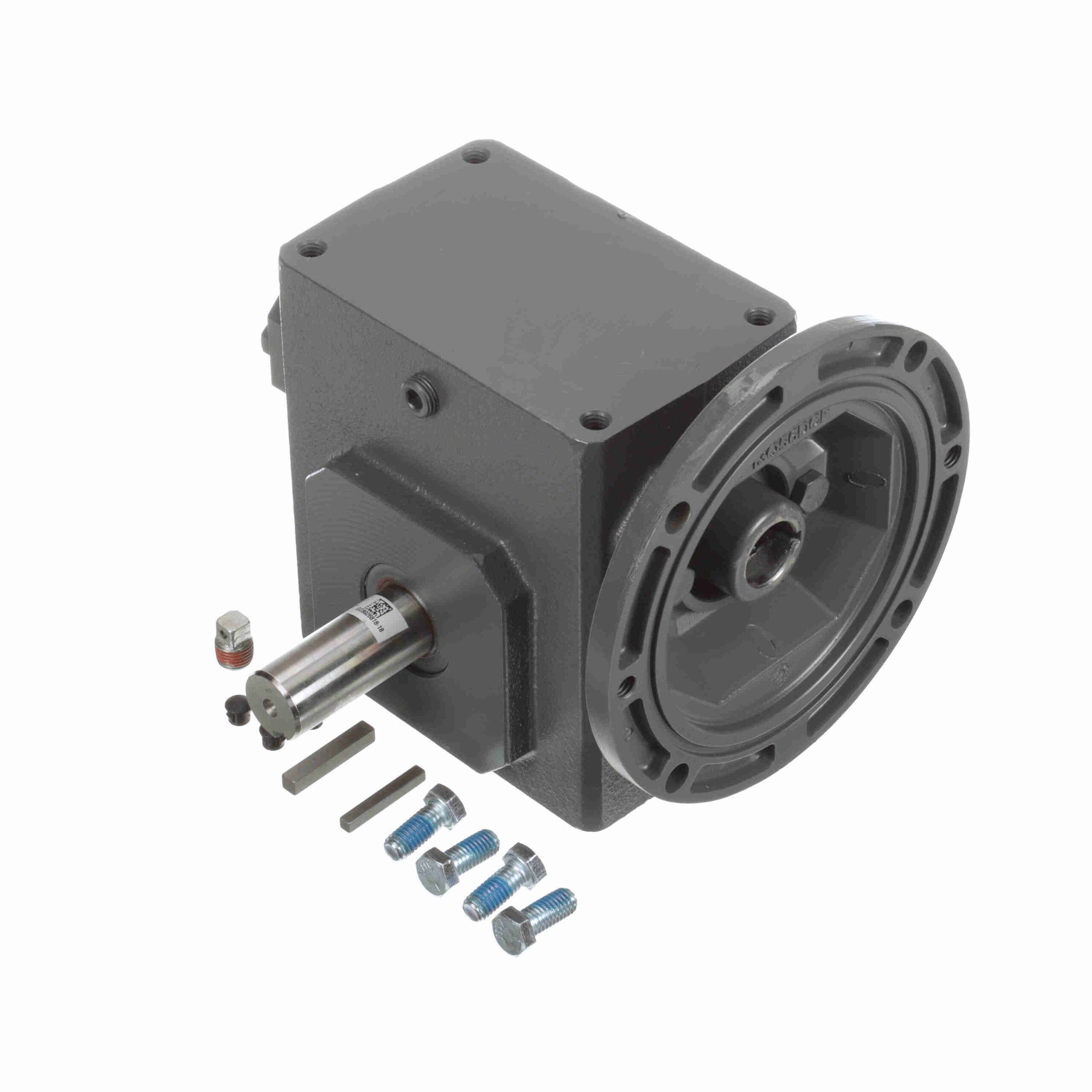

206Q140L10

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Reducer Style:	Standard	Input Speed:	1750
Efficiency:	80	Shaft Seal Material:	Nitrile
Ratio:	10:1	Input Keyway (C Face):	3/16 X 3/32
Motor Frame Size:	140TC	Thrust Rating - output shaft:	1580
Input Bore (C Face):	0.875	Input RPM:	1, 750
Gear Type:	Worm	Input Style:	C-Face Quill
Product Type:	Worm Speed Reducer	Series Code:	Raider
Output Key:	1/4 X 1.75	No. of Gear Reductions:	Single
Frame Size:	140TC	Ratio Range:	10:1
Model Code:	206Q	Input HP @ 1750 RPM:	2.24
Service Factor:	1	Reducer:	Worm - Right Angle
Output RPM:	175	Output Diameter (in):	1.000 in
Assembly:	Q-L	Input Diameter (in):	0.875 in
Mounting Style:	No Base	Output Shaft Assembly Code:	L
Center Distance (in):	2.06	Output Shaft Direction:	Left
Output Shaft:	Solid Shaft	Output Torque Rating (in-lb):	805 in-lbs @1750 input RPM in/lbs
Overhung Load Rating (Output Shaft(lb)):	1, 078 lb	Housing Material:	Cast Iron
UPC:	6, 62288E+11	Weight:	29.00 LB
