- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
206Q140H20 107

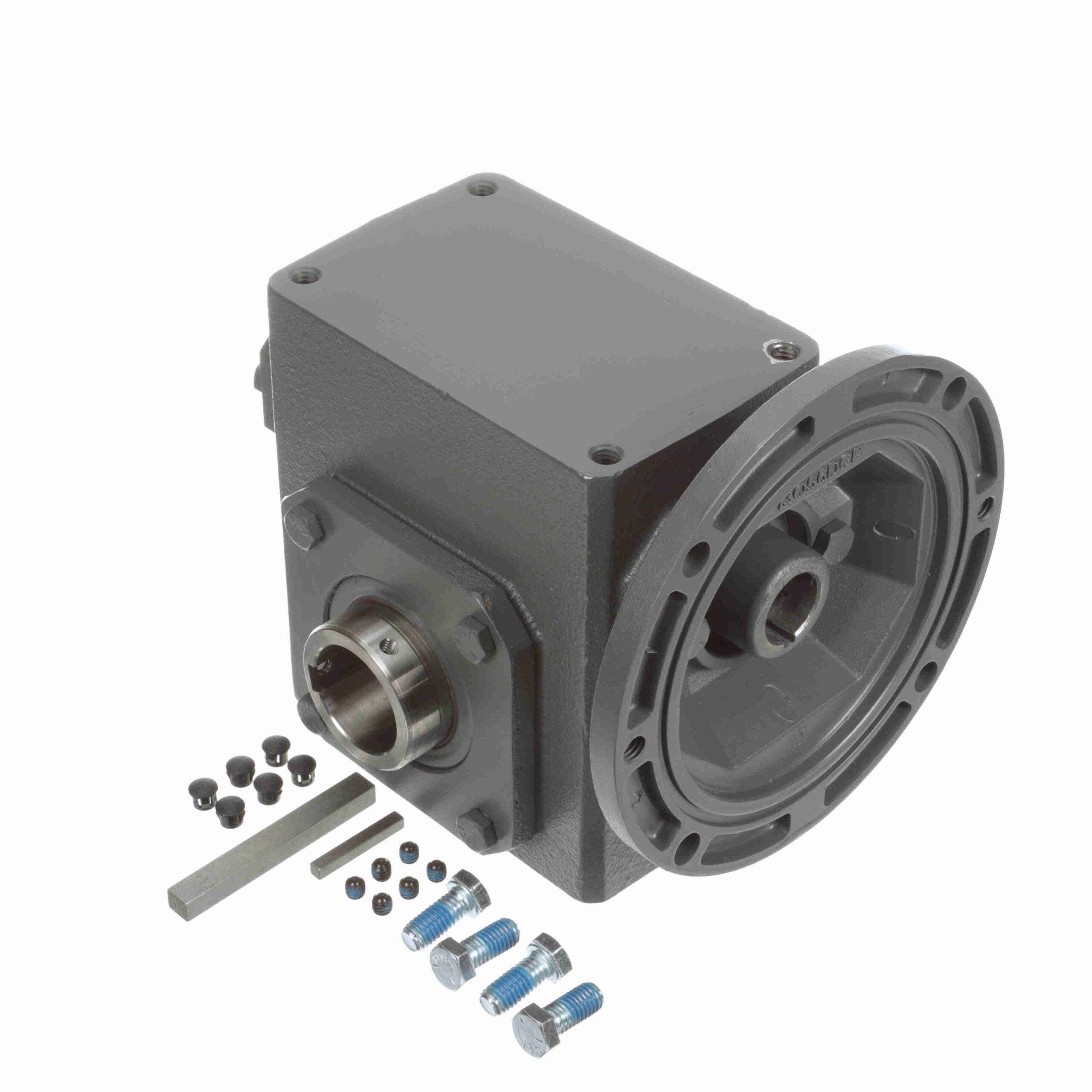

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 206Q140H20 107
$1,700.60
Out of stock
Out of stock
| Motor Frame Size: | 140TC | Input Keyway (C Face): | 3/16 x 3/32 |
|---|---|---|---|
| Thrust Rating - output shaft: | 1144 | Input Speed: | 1750 |
| Efficiency: | 80 | Input Bore (C Face): | 0.875 |
| Reducer Style: | Standard | Ratio: | 20:1 |
| Input Diameter (in): | 0.875 in | Output Diameter (in): | 1.438 in |
| No. of Gear Reductions: | Single | Product Type: | Right Angle |
| Series Code: | Raider | Service Factor: | 1 |
| Mounting Style: | Shaft Mt | Input Style: | C-Face Quill |
| Ratio Range: | 20:1 | Center Distance (in): | 2.06 |
| Frame Size: | 140TC | Gear Type: | Worm |
| Input HP @ 1750 RPM: | 1.58 | Output Shaft Direction: | L or R |
| Output Torque Rating (in-lb): | 964 in-lbs @1750 input RPM in/lbs | Overhung Load Rating (Output Shaft(lb)): | 1, 175 lb |
| Output Shaft: | Hollow Bore | Housing Material: | Cast Iron |
| UPC: | 6, 62288E+11 | Weight: | 30.00 LB |
