- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
200HC 10FT

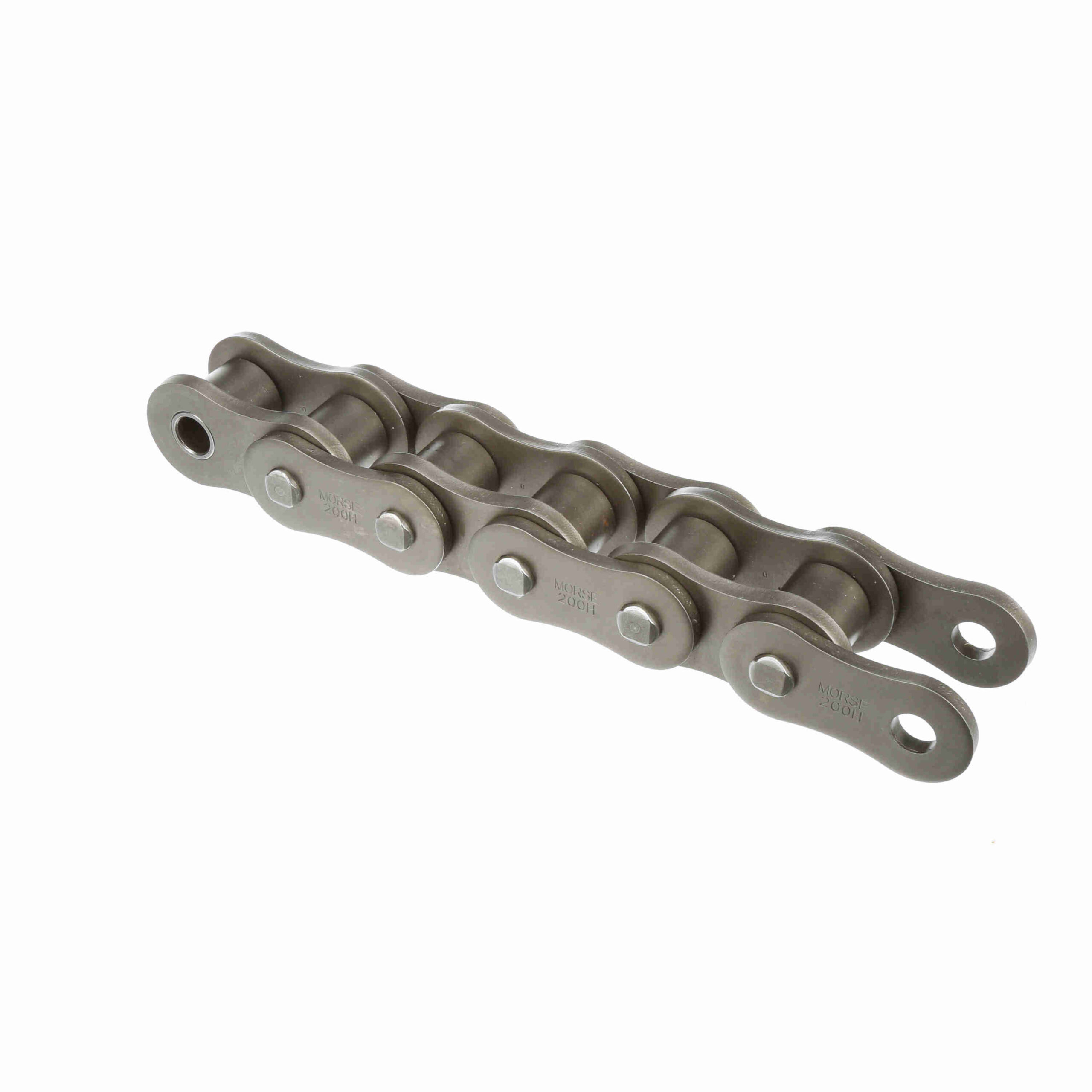

Morse Heavy Cottered Roller Chain – 200HC 10FT
$266.24
Out of stock
Out of stock
| Average Ultimate Tensile Strength (psi): | 95, 000 | Number of Strands/Width: | 1 |
|---|---|---|---|
| Inside Plate Height: | 2.334 | Roller Width (in): | 1.5 in |
| Chain Construction: | Cottered | Centerline to Outside of cotter Pin: | 1.904 |
| Number of Connecting Links Included: | 1 | Side Plate Cfg.: | Hourglass |
| Centerline to Opposite cotter Pin Side: | 1.687 | Width Over Pins/Total Width: | 3.374 |
| Roller Diameter (in): | 1.562 in | Material: | Steel |
| Plate Thickness: | 0.375 | Chain Size: | 200 |
| Pin Diameter (in): | 0.781 in | Chain Pitch (in): | 2.5 in |
| Chain Type: | Heavy | Product Type: | Roller Chain |
| Coating: | Uncoated | Total Length: | 10 FT ft |
| Standard Met: | ANSI B29.1 | Measurement System: | Imperial |
| Pin Length - Riveted: | 3.374 | UPC: | 662288455851 |
| Weight: | 12.30 LB | Packaged Length: | 18.50 Inches |
| Packaged Width: | 18.50 Inches | Packaged Height: | 4.50 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
