- Non-Lubricated design for tough industrial applications.
- Maintenance savings through easily replaceable element in the application without moving the driving or driven equipment.
- Available close coupled or spacer configurations.
20 CHUB

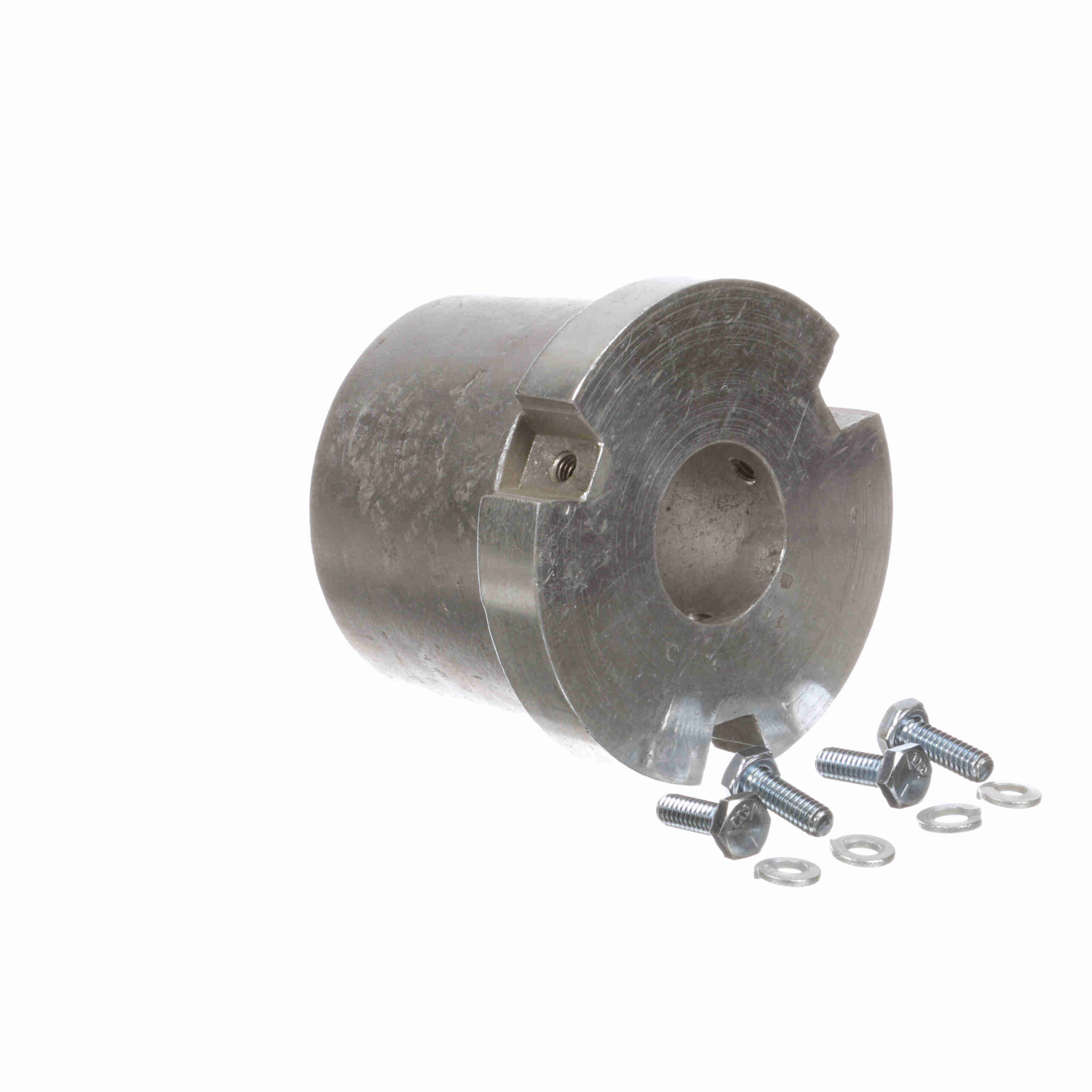

Kop-Flex Elastomeric Coupling Hub – Style Drop-Out Spacer (DO) – Size 20 – Rough Bore – 20 CHUB
Out of stock
| Style: | Drop-Out Spacer (DO) | Material: | Aluminum |
|---|---|---|---|
| Model: | Elastomeric | Coupling Size: | 20 |
| Bore Type: | Rough Bore | Coupling Type: | Elastomeric Coupling |
| Measurement System: | Imperial | Outside Diameter (in): | 3.125 in |
| Lube/Non-Lube: | Non-Lubricated | Component Type: | Hub |
| Speed Max (rpm): | 4, 100 rpm | Hub Diameter (in): | 3.6875 in |
| Length Through Bore (in): | 2.75 in | Torque Rating (in-lb): | 217 in/lbs |
| UPC: | 662384006636 | Weight: | 2.02 LB |
| Packaged Length: | 5.5 Inches | Packaged Width: | 5.5 Inches |
| Packaged Height: | 5.5 Inches | HTC: | 8483.90.8010 |
