- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Morse torque limiter is a spring loaded device. The load on the friction pads is adjusted so that process torque is transmitted. An overload causes the unit to slip.
- Morse torque limiters are simple design, economical, easy adjustment, compact and dependable
20-5 TL 2 MPB

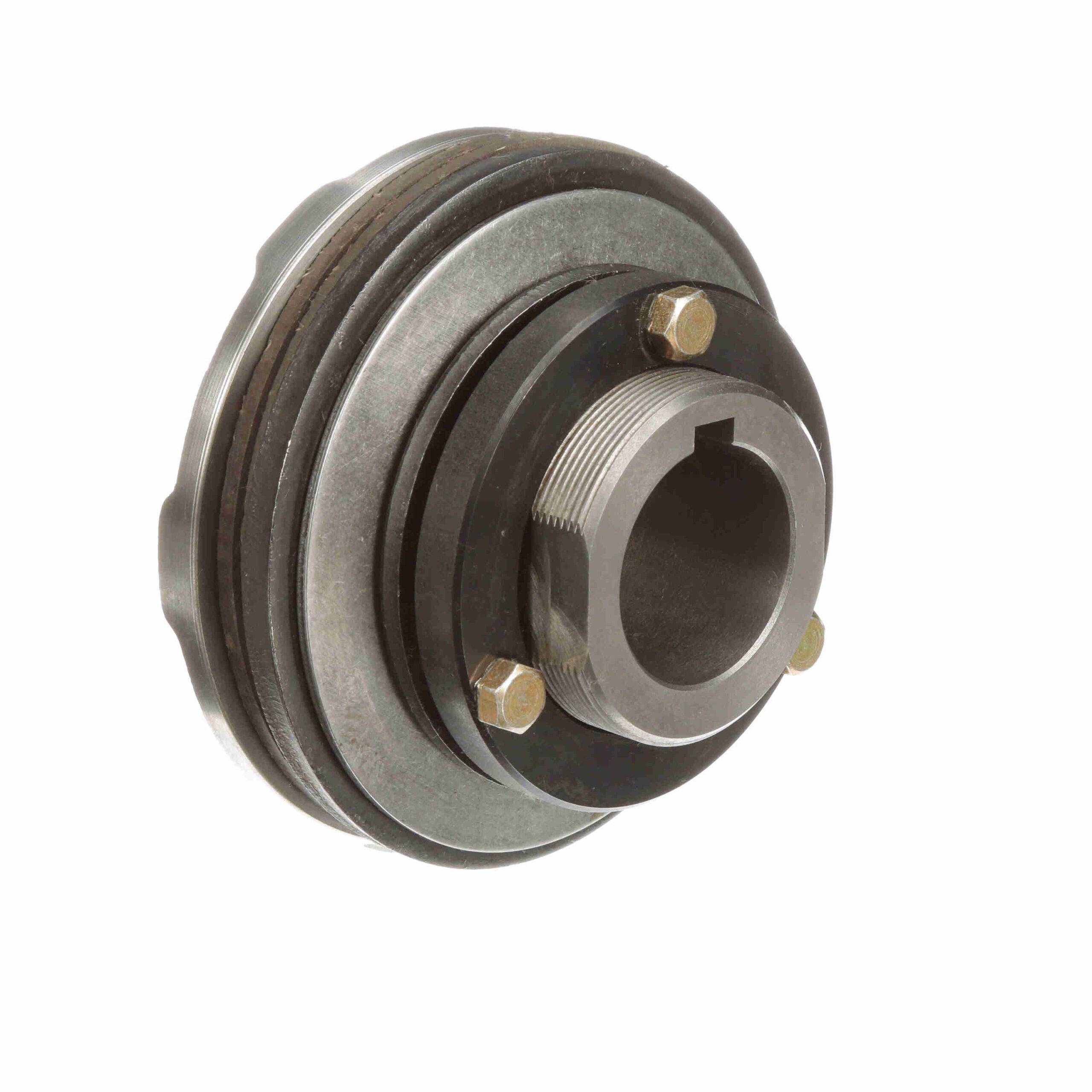

Morse Torque Limiter Model – 20 – 20-5 TL 2 MPB
$45,276.03
Out of stock
Out of stock
| Series / Model: | 20 | Recovery Style: | Automatic |
|---|---|---|---|
| Sensor Plate: | No | Maximum Bore w/ Key, Setscrew: | 4.875 |
| Outside Diameter (in): | 20 in | Total Length (mm): | 184.15 mm |
| Type: | Torque Overload Devices | Bore Shape: | Straight Bore |
| Sprocket Bore Diameter: | 8.753/8.756 | Outside Diameter (mm): | 508 mm |
| Reset Type: | Automatic | Backlash: | Zero |
| Disconnect Method: | Friction Pad | Trip Torque [Min]: | 1, 575 |
| Bore Size (in): | 2 in | Unit Accuracy: | 0.25 |
| Detection Method: | Friction Pad | Total Length (in): | 7.25 in |
| Torque [Min] (N-m): | 2, 142 | Product Type: | Torque Limiter |
| Torque Capacity [Max] (lb-ft): | 262.5 | Torque [Max] (N-m): | 4, 284 |
| Max RPM: | 200 | Torque Capacity [Min] (lb-ft): | 131.25 |
| Bore (Min) (in): | 2 in | Torque Capacity [Min] (in-lb): | 1, 575 |
| Torque Capacity [Max] (in-lb): | 3, 150 | Bore (Max) (in): | 4.875 in |
| Bore Type: | Minimum Plain Bore | Minimum Sprocket Teeth: | #100 (54 Teeth) |
| #160 (35 Teeth) | 1 | 662288570516 | 1 |
| 250.00 LB | 1 | 4.69 Inches | 1 |
| 20.00 Inches | 1 | 8483.60.8000 | 1 |
| United States of America | 1 |
