- Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
- Skwezloc® concentric locking for near perfect concentricity
- Single lip contact seal with black oxide bearing races
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
2-17TC

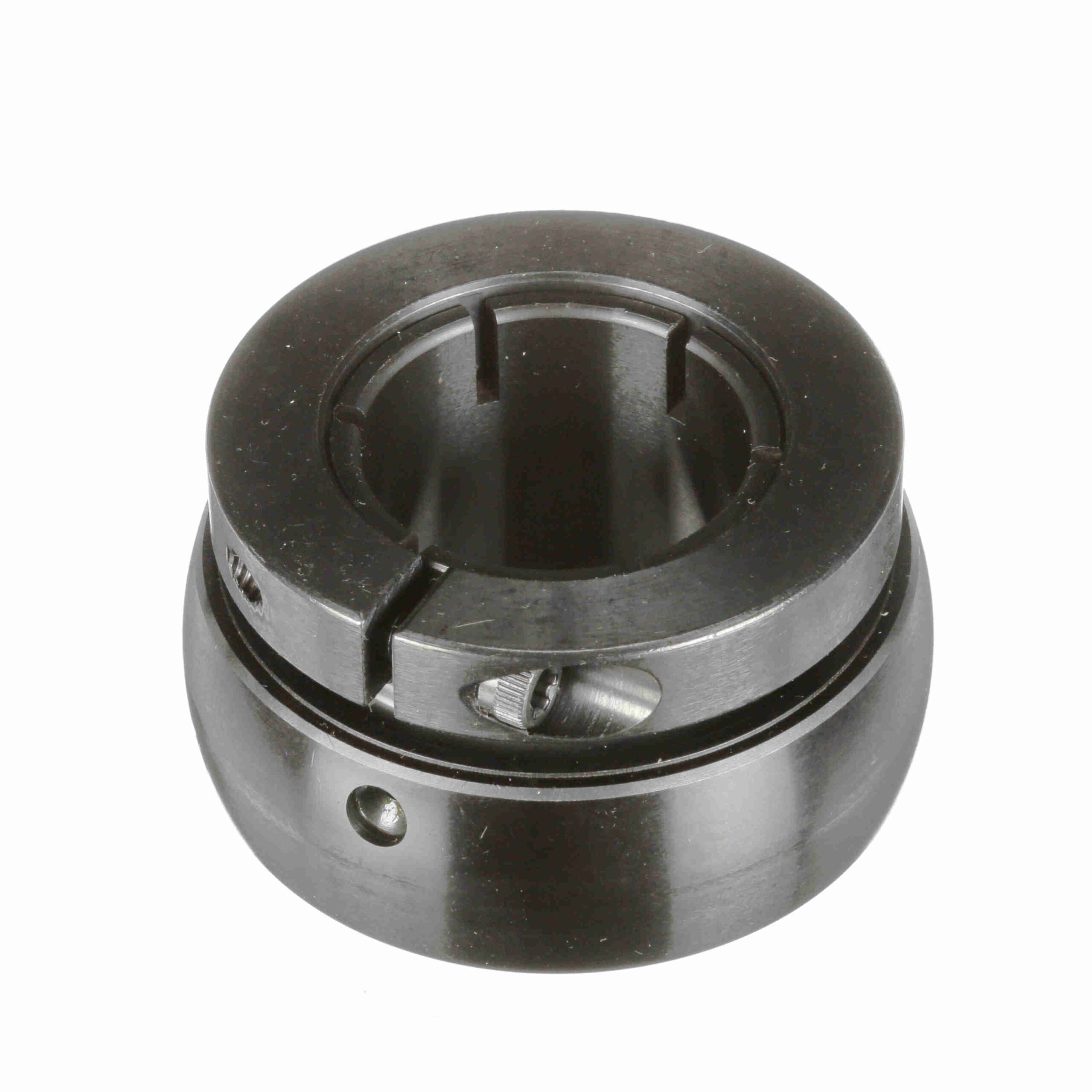

Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – 2-17TC
$141.50
Availability: 1 in stock
Availability: 1 in stock
| Retainer Type: | Land Riding Retainer | Duty Series: | Standard |
|---|---|---|---|
| Maximum Operating Temperature: | 220 °F | Bore Shape: | Straight |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Measure Units: | Inch |
| Housing Type: | Insert Only | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Seal Type: | Single Lip Contact Seal | Torx Cap Screw: | 10-24 X 3/4 |
| Rolling Element: | Ball Bearing | Radius: | 0.04 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Radial Dynamic Load Capacity (lb): | 5, 782 |
| Internal Clearance: | Standard | Relubricatable: | Yes |
| Speed (Max): | 6500 | Locking Type: | Concentric |
| Expansion: | No | Misalignment: | ±2.0° Misalignment - Static Only |
| Bearing Insert Coating: | Black Oxide Coated | Platform: | Gold Line Ball Bearing |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Misalignment Type: | Static Only | Radial Static Load Capacity (lb): | 3, 493 |
| Cage Material: | PPS | Precision Rating: | ABEC 1 |
| Inner Race Profile: | Wide Inner Ring | Outer Race Profile: | Spherical |
| UPC: | 662461032282 | Weight: | 1.48 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 3.13 Inches |
| Packaged Height: | 3.13 Inches | HTC: | 8482.10.5052 |
| Country of Origin: | Mexico |
