- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
18XHQ200

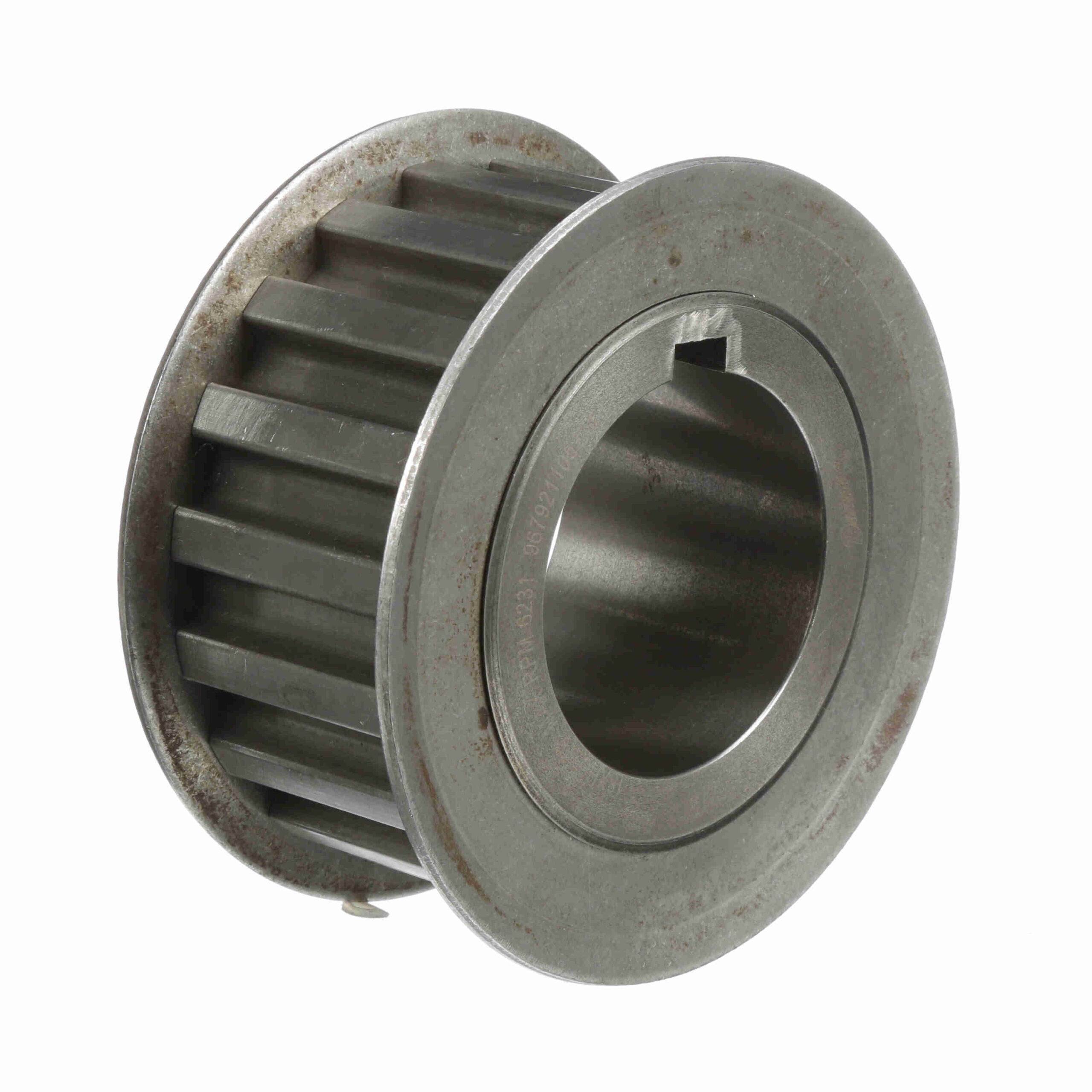

Browning Steel Bushed Bore Gearbelt Pulley – 18XHQ200
$1,071.52
Out of stock
Out of stock
| Number of teeth: | 18 | Width (mm): | 50.8 mm |
|---|---|---|---|
| Bore Range: | 3/4 to 2 11/16 | Product Type: | Gearbelt Pulley |
| Material: | Ductile Iron | Bore Type: | Bushed Bore |
| Width (in): | 2 in | Belt Section: | XH |
| Flange (in): | 5.556 in | Outside Diameter (in): | 4.903 in |
| Outside Diameter (mm): | 124.5362 mm | Pitch Diameter (in): | 5.013 in |
| Face Width: | 2.5625 | Number of Hubs: | 1 |
| Overall Length (in): | 3.562 in | Length Through Bore: | 2.5 |
| Pulley Construction: | Solid | With Flanges: | With Flanges |
| Hub Diameter (in): | 4.125 in | Hub Projection: | 1 |
| UPC: | 662289264377 | Weight: | 7.47 LB |
| Packaged Length: | 6.3 Inches | Packaged Width: | 6.4 Inches |
| Packaged Height: | 4.5 Inches | HTC: | 8483.50.9080 |
| Country of Origin: | United States of America |
