- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
17LF100X1/2

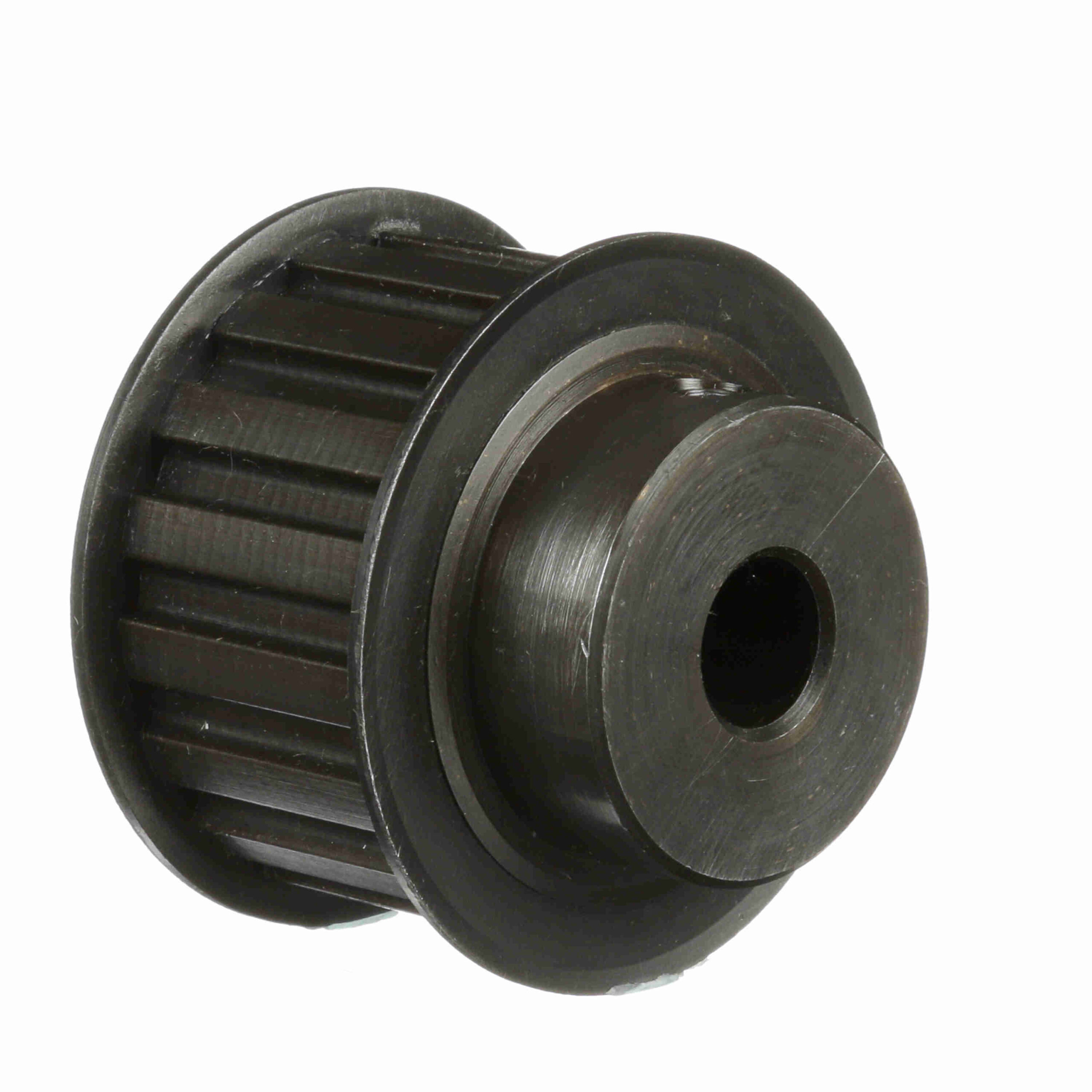

Browning Steel Finish Bore Gearbelt Pulley – 17LF100X1/2
$138.14
Out of stock
Out of stock
| Width (mm): | 25.4 mm | Bore Range: | 0.5 |
|---|---|---|---|
| Model Name: | GBPulley_Master3 | Product Type: | Gearbelt Pulley |
| Number of teeth: | 17 | Material: | Steel |
| Bore Type: | Finish Bore | Belt Section: | L |
| Pitch Diameter (in): | 2.029 in | Flange (in): | 2.25 in |
| Outside Diameter (mm): | 50.7746 mm | Outside Diameter (in): | 1.999 in |
| Width (in): | 1 in | Face Width: | 1.25 |
| Hub Diameter (in): | 1.4375 in | Number of Hubs: | 1 |
| Pulley Construction: | Solid | Overall Length (in): | 1.75 in |
| With Flanges: | With Flanges | Bore Diameter (in): | 0.5 in |
| Hub Projection: | 0.5 | Length Through Bore: | 1.75 |
| UPC: | 662289132010 | Weight: | 1.16 LB |
| Packaged Length: | 3.3 Inches | Packaged Width: | 3.1 Inches |
| Packaged Height: | 2 Inches | HTC: | 8483.50.9080 |
| Country of Origin: | United States of America |
