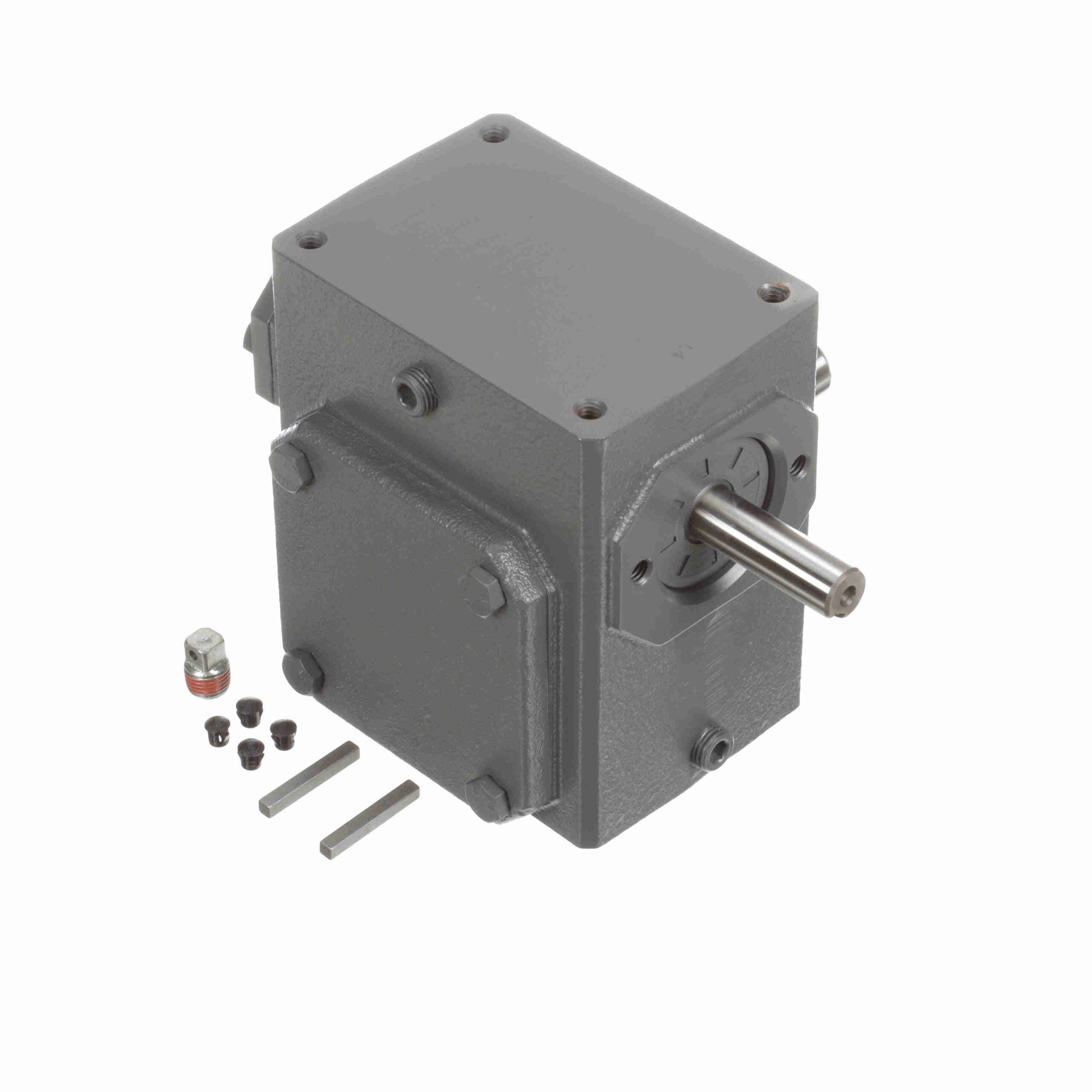

175UR20

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Key Length:	1.38	Reducer Style:	Standard
Key Sq.:	0.1875	Ratio:	20:1
Efficiency:	80	Thrust Rating - output shaft:	1358
Shaft Seal Material:	Nitrile	Input Speed:	1750
Mounting Style:	No Base	Gear Type:	Worm
Assembly:	U-R	Output Diameter (in):	0.875 in
Input RPM:	1, 750	Center Distance (in):	1.75
Output Shaft Assembly Code:	R	No. of Gear Reductions:	Single
Reducer:	Worm - Right Angle	Product Type:	Worm Speed Reducer
Service Factor:	1	Ratio Range:	20:01
Output RPM:	87.5	Output Key:	3/16 X 1.38
Input HP @ 1750 RPM:	0.9	Input Diameter (in):	0.625 in
Model Code:	175U	Input Style:	Solid Shaft
Input Keyway:	3/16 X 1.50 in	Series Code:	Raider
Output Shaft Direction:	Right	Housing Material:	Cast Iron
Output Torque Rating (in-lb):	630 in-lbs @1750 input RPM in/lbs	Overhung Load Rating (Output Shaft(lb)):	740 lb
Output Shaft:	Solid Shaft	UPC:	6, 62288E+11
Weight:	20.00 LB
