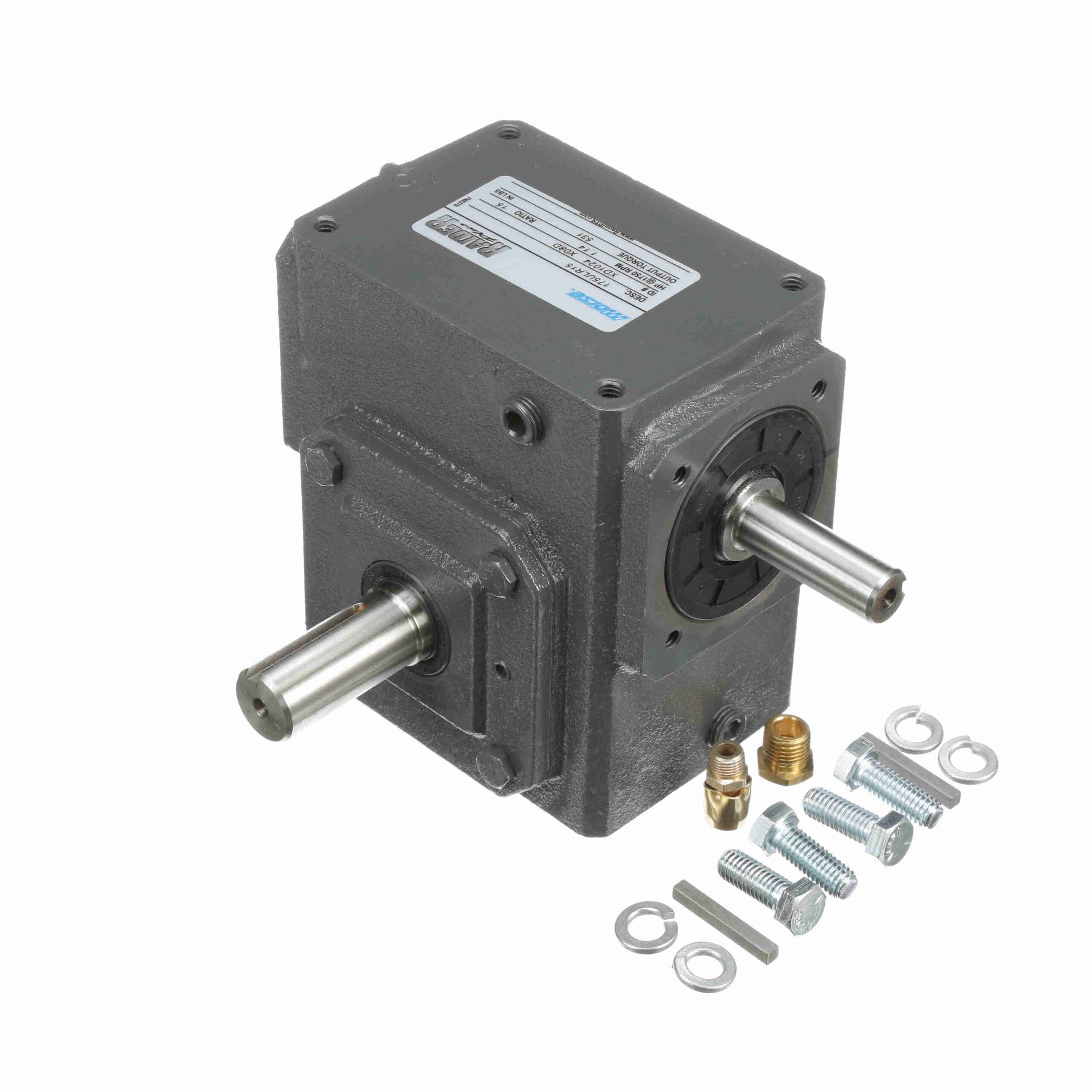

175ULR20

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Key Sq.:	0.1875	Ratio:	20:1
Key Length:	1.38	Thrust Rating - output shaft:	1358
Shaft Seal Material:	Nitrile	Reducer Style:	Standard
Efficiency:	80	Input Speed:	1750
Output Shaft Orientation:	LR	Input Diameter (in):	0.625 in
Input HP @ 1750 RPM:	0.9	Gear Type:	Worm
Model Code:	175U	Output Diameter (in):	0.875 in
Ratio Range:	20:1	Input RPM:	1, 750
Output Shaft Assembly Code:	D	Output Key:	3/16 X 1.38
Output RPM:	87.5	Reducer:	Worm - Right Angle
Mounting Style:	No Base	Product Type:	Worm Speed Reducer
Input Style:	Solid Shaft	Input Keyway:	3/16 X 1.50 in
Series Code:	Raider	Service Factor:	1
Assembly:	U-LR	Center Distance (in):	1.75
No. of Gear Reductions:	Single	Output Shaft Direction:	Double
Overhung Load Rating (Output Shaft(lb)):	740 lb	Output Torque Rating (in-lb):	630 in-lbs @1750 input RPM in/lbs
Output Shaft:	Solid Shaft	Housing Material:	Cast Iron
UPC:	6, 62289E+11	Weight:	20.00 LB
