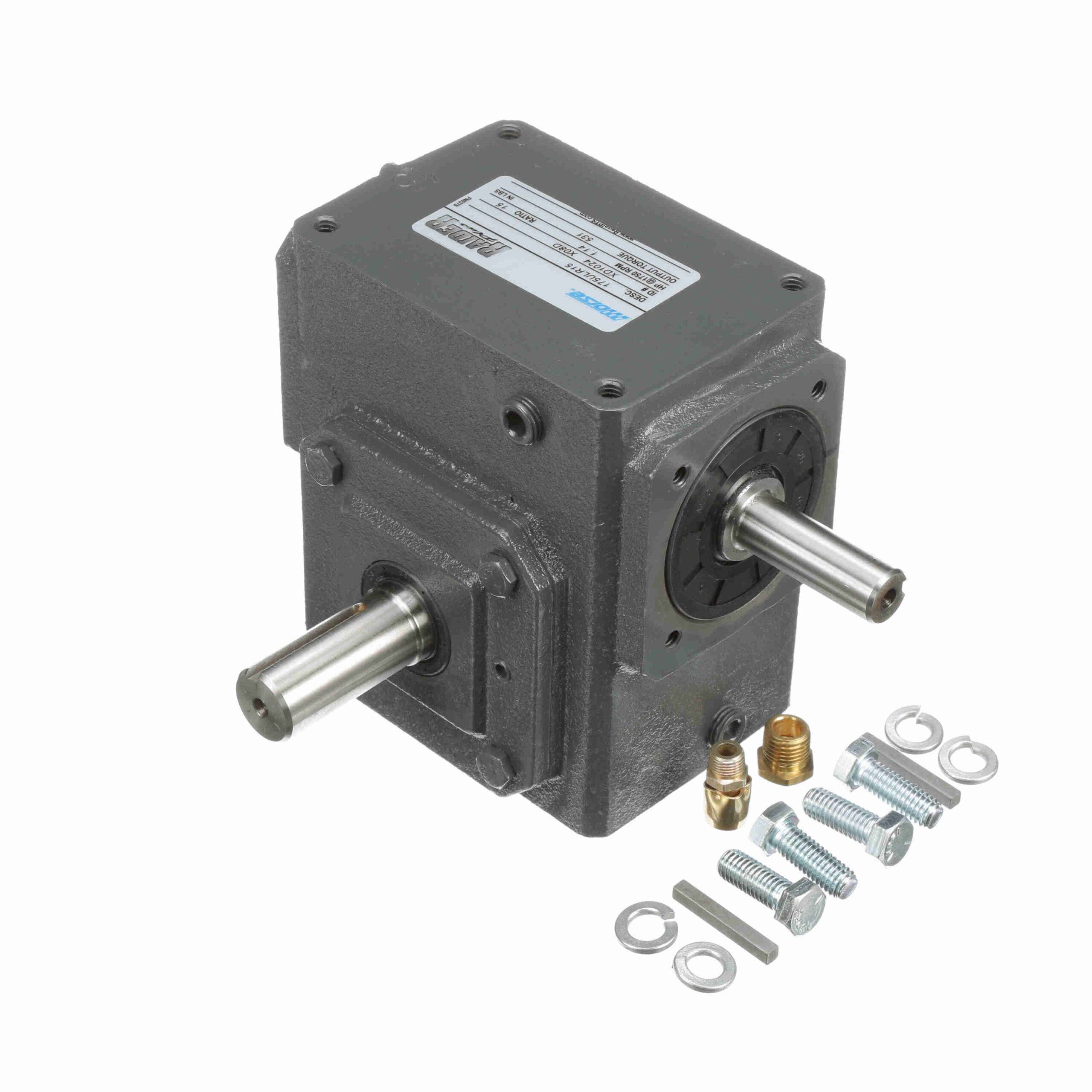

175UL60

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Key Sq.:	0.1875	Key Length:	1.38
Ratio:	60:1	Efficiency:	80
Thrust Rating - output shaft:	1399	Input Speed:	1750
Reducer Style:	Standard	Shaft Seal Material:	Nitrile
Input Style:	Solid Shaft	Center Distance (in):	1.75
Series Code:	Raider	Gear Type:	Worm
Model Code:	175U	Reducer:	Worm - Right Angle
Output Key:	3/16 X 1.38	Input HP @ 1750 RPM:	0.35
Ratio Range:	60:1	Output RPM:	29.1
Input Keyway:	3/16 X 1.50 in	Product Type:	Worm Speed Reducer
Input RPM:	1, 75	Mounting Style:	No Base
Service Factor:	1	Assembly:	U-L
Output Diameter (in):	0.875 in	Output Shaft Assembly Code:	L
Input Diameter (in):	0.625 in	No. of Gear Reductions:	Single
Output Shaft Direction:	Left	Housing Material:	Cast Iron
Output Shaft:	Solid Shaft	Output Torque Rating (in-lb):	623 in-lbs @1750 input RPM in/lbs
Overhung Load Rating (Output Shaft(lb)):	740 lb	UPC:	6, 62288E+11
Weight:	20.00 LB	Packaged Length:	12 Inches
Packaged Width:	11 Inches	Packaged Height:	12 Inches
