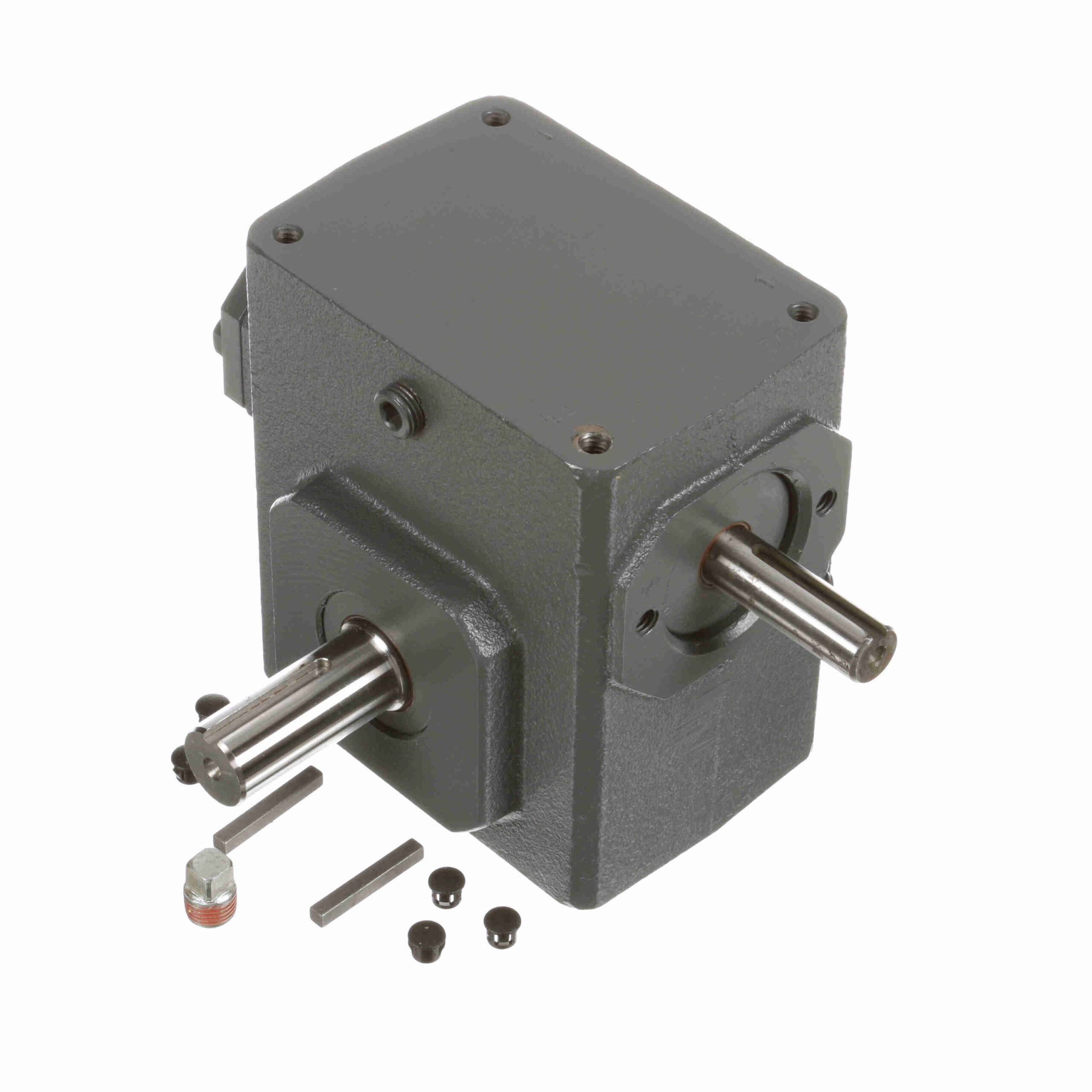

175UL40

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Shaft Seal Material:	Nitrile	Ratio:	40:1
Input Speed:	1750	Key Sq.:	0.1875
Reducer Style:	Standard	Thrust Rating - output shaft:	1399
Efficiency:	80	Key Length:	1.38
Manufacturer Reducer Size:	175	Maximum Input HP:	0.609 hp @ 1750 rpm
Output Diameter (in):	0.875 in	Service Factor:	1
Output RPM:	43.7	No. of Gear Reductions:	Single
Center Distance (in):	1.75	Input RPM:	1, 750
Input HP @ 1750 RPM:	0.52	Product Type:	Worm Speed Reducer
Input Style:	Solid Shaft	Series Code:	Raider
Output Key:	3/16 X 1.38	Assembly:	U-L
Mounting Style:	No Base	Gear Type:	Worm
Output Shaft Assembly Code:	L	Model Code:	175U
Reducer:	Worm - Right Angle	Ratio Range:	40:01:00
Input Keyway:	3/16 X 1.50 in	Input Diameter (in):	0.625 in
Output Shaft Direction:	Left	Output Torque Rating (in-lb):	634 in-lbs @1750 input RPM in/lbs
Housing Material:	Cast Iron	Overhung Load Rating (Output Shaft(lb)):	740 lb
Output Shaft:	Solid Shaft	UPC:	6, 62288E+11
Weight:	20.00 LB	Packaged Length:	10.69 Inches
Packaged Width:	9.06 Inches	Packaged Height:	10.5 Inches
