- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
175UL30

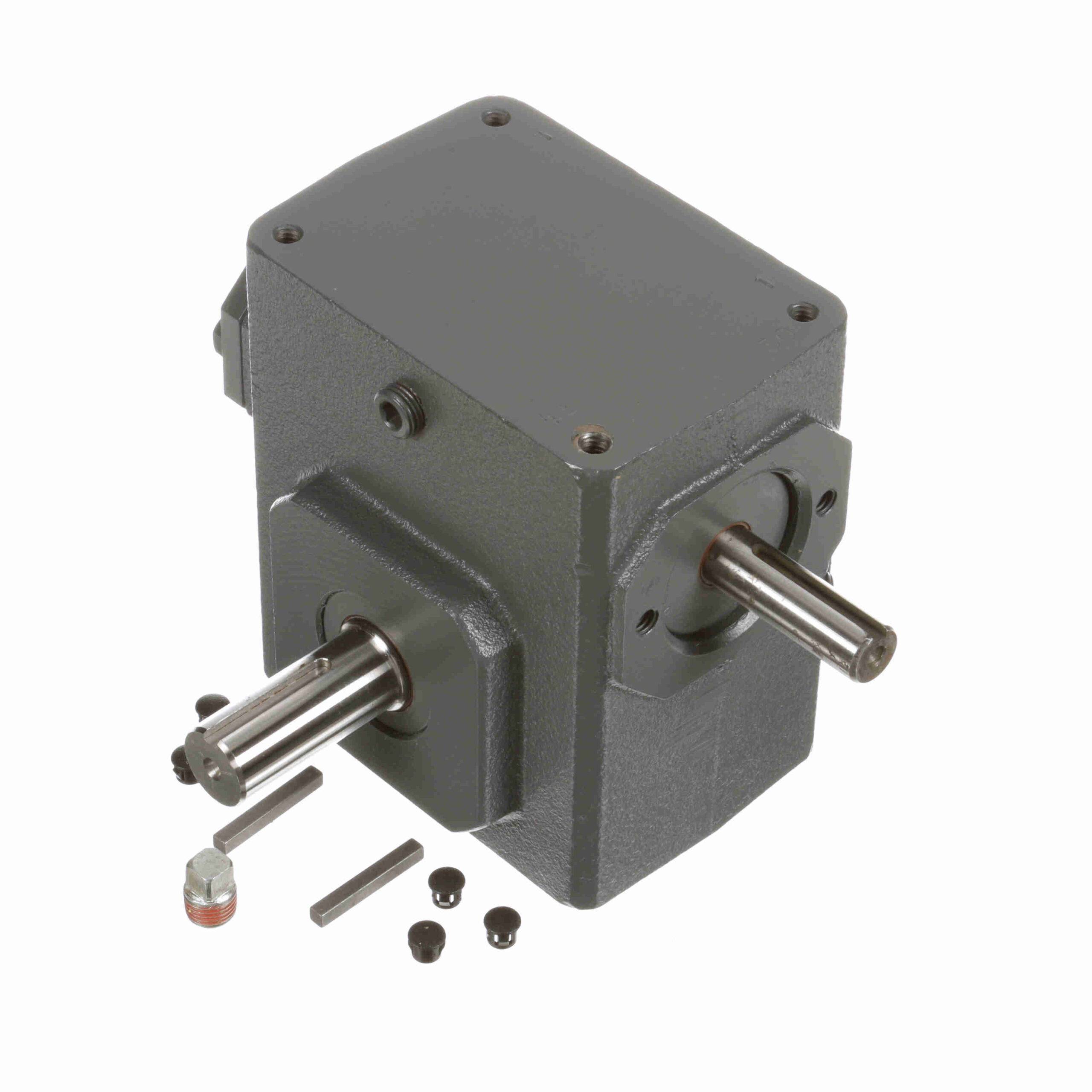

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 175UL30
$1,045.64
Out of stock
Out of stock
| Thrust Rating - output shaft: | 1399 | Reducer Style: | Standard |
|---|---|---|---|
| Ratio: | 30:1 | Key Sq.: | 0.1875 |
| Input Speed: | 1750 | Shaft Seal Material: | Nitrile |
| Efficiency: | 80 | Key Length: | 1.38 |
| Input Style: | Solid Shaft | Center Distance (in): | 1.75 |
| Input RPM: | 1, 750 | Reducer: | Worm - Right Angle |
| Product Type: | Worm Speed Reducer | Input Keyway: | 3/16 X 1.50 in |
| Output Key: | 3/16 X 1.38 | Output Diameter (in): | 0.875 in |
| Service Factor: | 1 | Model Code: | 175U |
| Input Diameter (in): | 0.625 in | Series Code: | Raider |
| Gear Type: | Worm | Output Shaft Assembly Code: | L |
| Mounting Style: | No Base | Output RPM: | 58.3 |
| No. of Gear Reductions: | Single | Assembly: | U-L |
| Ratio Range: | 30:01:00 | Input HP @ 1750 RPM: | 0.63 |
| Output Shaft Direction: | Left | Output Torque Rating (in-lb): | 614 in-lbs @1750 input RPM in/lbs |
| Overhung Load Rating (Output Shaft(lb)): | 740 lb | Output Shaft: | Solid Shaft |
| Housing Material: | Cast Iron | UPC: | 6, 62288E+11 |
| Weight: | 20.00 LB |
