- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
175Q56R15

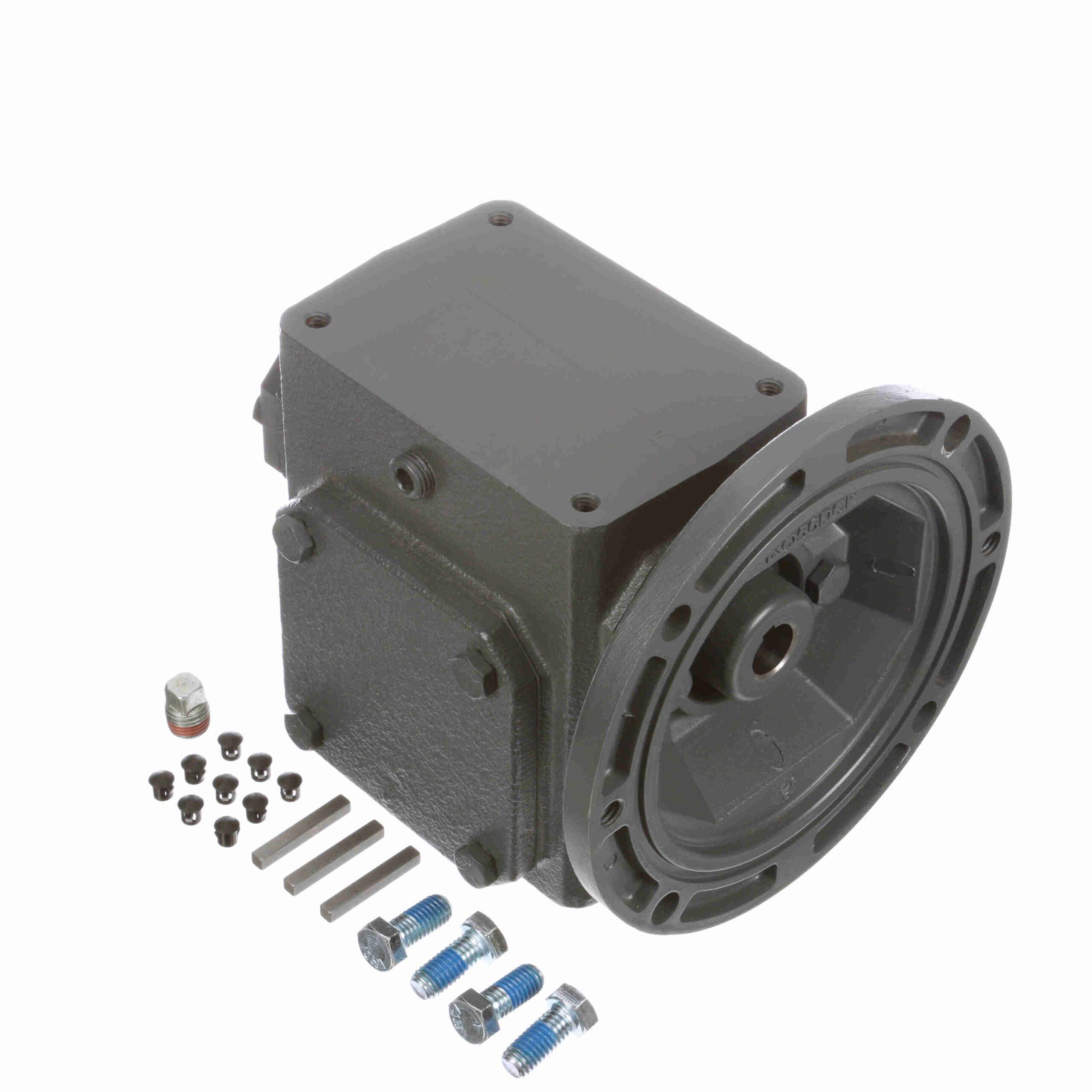

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 175Q56R15
$940.01
Out of stock
Out of stock
| Efficiency: | 80 | Motor Frame Size: | 56C |
|---|---|---|---|
| Input Keyway (C Face): | 3/16 X 3/32 | Reducer Style: | Standard |
| Input Bore (C Face): | 0.625 | Shaft Seal Material: | Nitrile |
| Thrust Rating - output shaft: | 1253 | Input Speed: | 1750 |
| Ratio: | 15:1 | Output Key: | 3/16 X 1.38 |
| No. of Gear Reductions: | Single | Assembly: | Q-R |
| Input Style: | C-Face Quill | Product Type: | Worm Speed Reducer |
| Gear Type: | Worm | Output RPM: | 116.6 |
| Series Code: | Raider | Center Distance (in): | 1.75 |
| Input HP @ 1750 RPM: | 1.14 | Output Diameter (in): | 0.875 in |
| Mounting Style: | No Base | Model Code: | 175Q |
| Ratio Range: | 15:01 | Reducer: | Worm - Right Angle |
| Frame Size: | 56C | Output Shaft Assembly Code: | R |
| Service Factor: | 1 | Input RPM: | 1, 75 |
| Input Diameter (in): | 0.625 in | Output Shaft Direction: | Right |
| Overhung Load Rating (Output Shaft(lb)): | 740 lb | Housing Material: | Cast Iron |
| Output Torque Rating (in-lb): | 571 in-lbs @1750 input RPM in/lbs | Output Shaft: | Solid Shaft |
| UPC: | 6, 62288E+11 | Weight: | 24.00 LB |
