- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
175Q56LR25

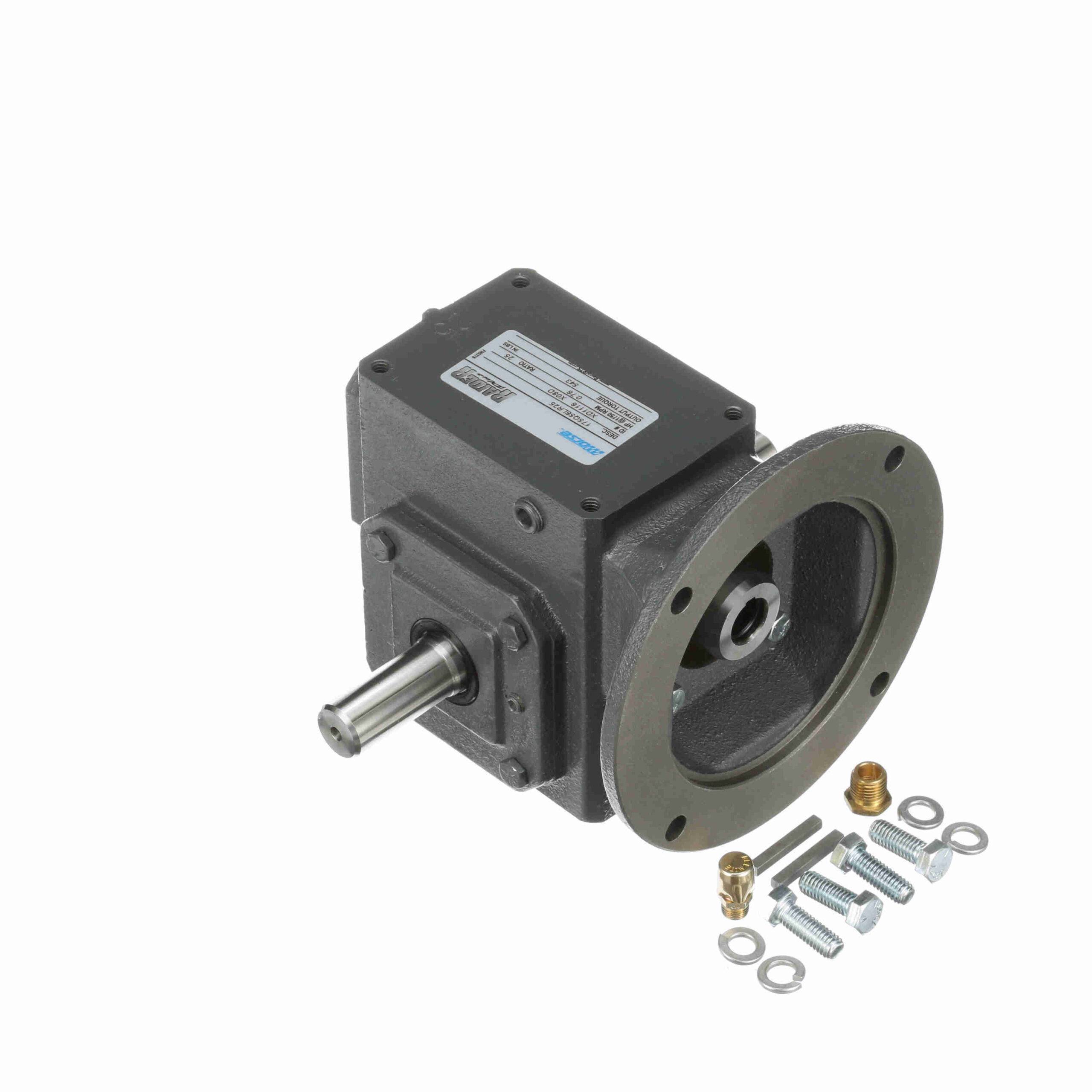

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 175Q56LR25
$1,100.86
Out of stock
Out of stock
| Input Keyway (C Face): | 3/16x3/32 | Ratio: | 25:1 |
|---|---|---|---|
| Efficiency: | 80 | Input Speed: | 1750 |
| Thrust Rating - output shaft: | 1144 | Motor Frame Size: | 56C |
| Reducer Style: | Standard | Input Bore (C Face): | 0.625 |
| Manufacturer Reducer Size: | 175 | Maximum Input HP: | 0.88 hp @ 1750 rpm |
| Input Diameter (in): | 0.625 in | Input HP @ 1750 RPM: | 0.88 |
| Mounting Style: | No Base | Input Style: | C-Face Quill |
| Product Type: | Worm Speed Reducer | Output Diameter (in): | 0.875 in |
| Gear Type: | Worm | Series Code: | Raider |
| Center Distance (in): | 1.75 | No. of Gear Reductions: | Single |
| Output Shaft Orientation: | LR | Frame Size: | 56C |
| Service Factor: | 1 | Ratio Range: | 25:01:00 |
| Output Shaft Direction: | Double | Output Torque Rating (in-lb): | 644 in-lbs @1750 input RPM in/lbs |
| Output Shaft: | Shaft | Housing Material: | Cast Iron |
| Overhung Load Rating (Output Shaft(lb)): | 1, 200 lb | UPC: | 6, 62289E+11 |
| Weight: | 23.83 LB | Packaged Length: | 9.3 Inches |
| Packaged Width: | 9.3 Inches | Packaged Height: | 8.8 Inches |
