- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
175Q56LR15

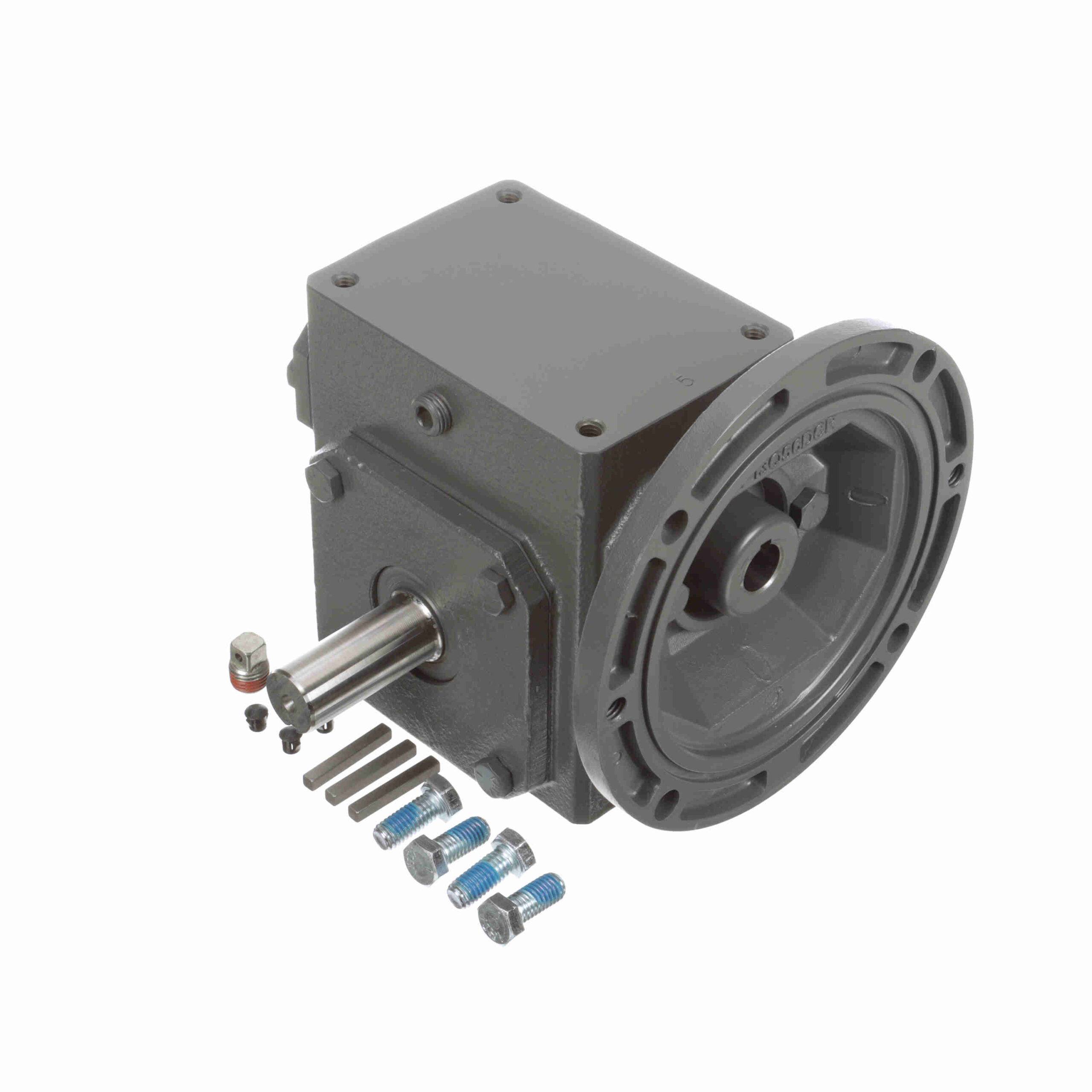

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 175Q56LR15
$940.01
Out of stock
Out of stock
| Reducer Style: | Standard | Shaft Seal Material: | Nitrile |
|---|---|---|---|
| Thrust Rating - output shaft: | 1253 | Input Bore (C Face): | 0.625 |
| Ratio: | 15:1 | Input Keyway (C Face): | 3/16 X 3/32 |
| Motor Frame Size: | 56C | Input Speed: | 1750 |
| Efficiency: | 80 | Ratio Range: | 15:1 |
| Input HP @ 1750 RPM: | 1.14 | Output Shaft Assembly Code: | D |
| Model Code: | 175Q | Output RPM: | 116.6 |
| Output Diameter (in): | 0.875 in | Gear Type: | Worm |
| Output Key: | 3/16 X 1.38 | Input RPM: | 1, 750 |
| Frame Size: | 56C | Service Factor: | 1 |
| Product Type: | Worm Speed Reducer | Reducer: | Worm - Right Angle |
| Center Distance (in): | 1.75 | Series Code: | Raider |
| Input Style: | C-Face Quill | Output Shaft Orientation: | LR |
| No. of Gear Reductions: | Single | Assembly: | Q-LR |
| Output Shaft Direction: | Double | Housing Material: | Cast Iron |
| Overhung Load Rating (Output Shaft(lb)): | 740 lb | Output Torque Rating (in-lb): | 571 in-lbs @1750 input RPM in/lbs |
| Output Shaft: | Solid Shaft | UPC: | 6, 62288E+11 |
| Weight: | 24.00 LB | Packaged Length: | 10.69 Inches |
| Packaged Width: | 9.06 Inches | Packaged Height: | 10.5 Inches |
