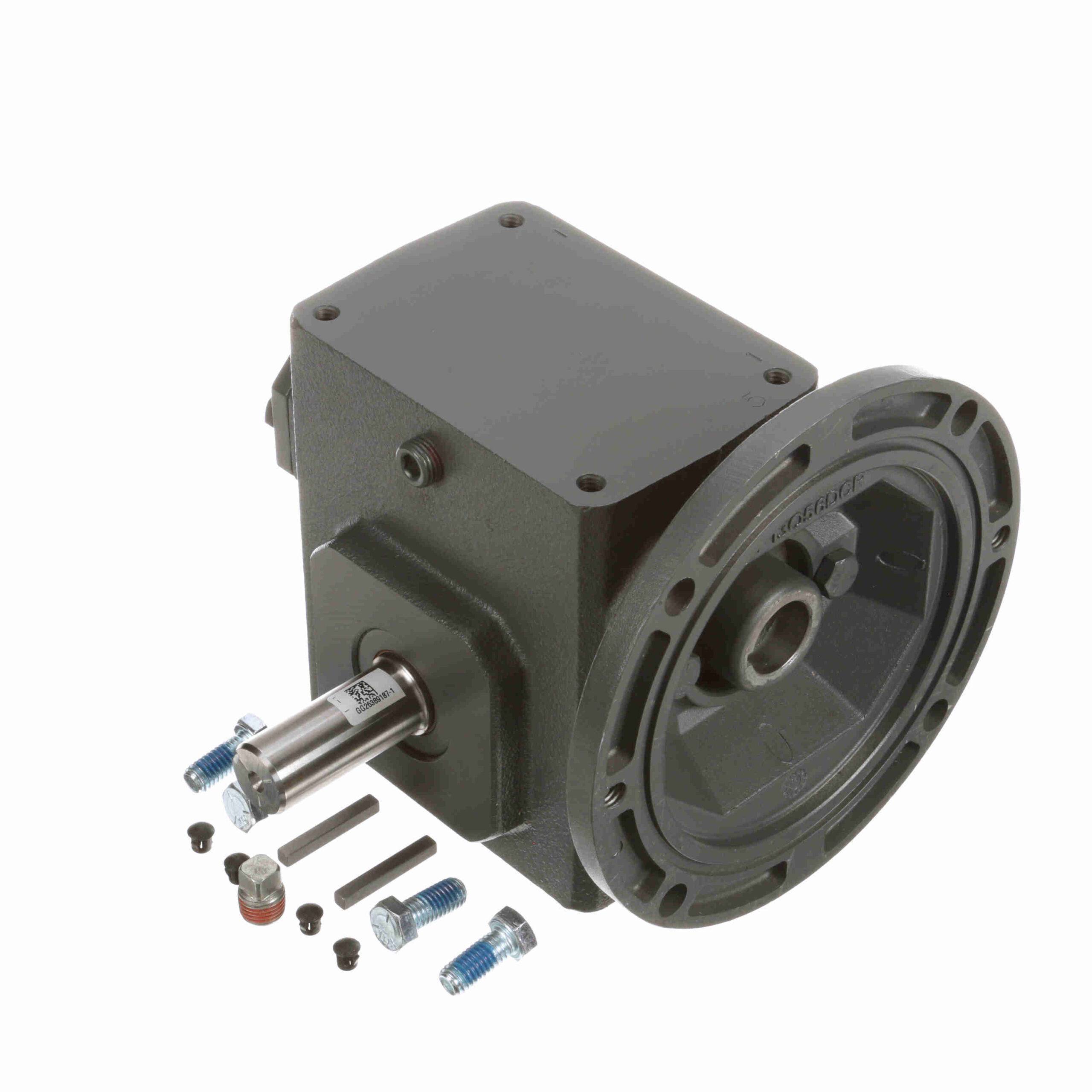

175Q140L5

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Ratio:	5:1	Motor Frame Size:	140TC
Input Speed:	1750	Efficiency:	80
Thrust Rating - output shaft:	868	Shaft Seal Material:	Nitrile
Reducer Style:	Standard	Input Bore (C Face):	0.875
Input Keyway (C Face):	3/16 X 3/32	Input RPM:	1, 750
Output Shaft Assembly Code:	L	Service Factor:	1
Gear Type:	Worm	Series Code:	Raider
No. of Gear Reductions:	Single	Model Code:	175Q
Reducer:	Worm - Right Angle	Center Distance (in):	1.75
Input Diameter (in):	0.875 in	Output Diameter (in):	0.875 in
Output RPM:	350	Ratio Range:	5:01
Mounting Style:	No Base	Input HP @ 1750 RPM:	2.45
Assembly:	Q-L	Input Style:	C-Face Quill
Output Key:	3/16 X 1.38	Frame Size:	140TC
Product Type:	Worm Speed Reducer	Output Shaft Direction:	Left
Output Shaft:	Solid Shaft	Output Torque Rating (in-lb):	436 in-lbs @1750 input RPM in/lbs
Housing Material:	Cast Iron	Overhung Load Rating (Output Shaft(lb)):	663 lb
UPC:	6, 62288E+11	Weight:	24.00 LB
