- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
16LF075X3/4

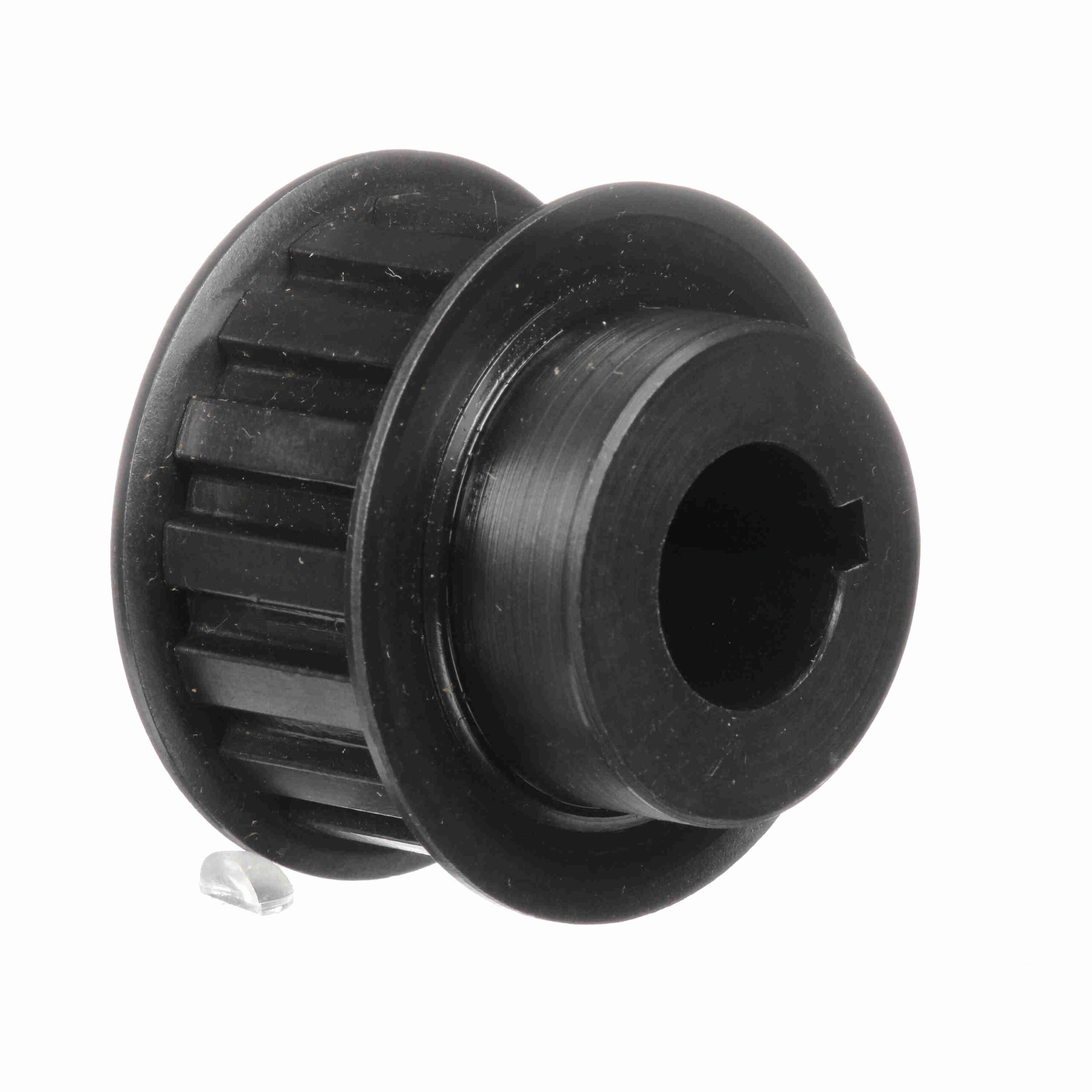

Browning Steel Finish Bore Gearbelt Pulley – 16LF075X3/4
$79.86
Out of stock
Out of stock
| Product Type: | Gearbelt Pulley | Width (mm): | 19.05 mm |
|---|---|---|---|
| Number of teeth: | 16 | Bore Range: | 0.75 |
| Model Name: | GBPulley_Master4 | Material: | Steel |
| Bore Type: | Finish Bore | Width (in): | 0.75 in |
| Outside Diameter (in): | 1.88 in | Pitch Diameter (in): | 1.91 in |
| Flange (in): | 2.125 in | Belt Section: | L |
| Outside Diameter (mm): | 47.752 mm | Face Width: | 1 |
| With Flanges: | With Flanges | Number of Hubs: | 1 |
| Length Through Bore: | 1.5 | Bore Diameter (in): | 0.75 in |
| Overall Length (in): | 1.5 in | Hub Diameter (in): | 1.4375 in |
| Hub Projection: | 0.5 | Pulley Construction: | Solid |
| UPC: | 662289251896 | Weight: | 0.83 LB |
| Packaged Length: | 3.2 Inches | Packaged Width: | 3.1 Inches |
| Packaged Height: | 2 Inches | HTC: | 8483.50.9080 |
| Country of Origin: | United States of America |
