154ULR60

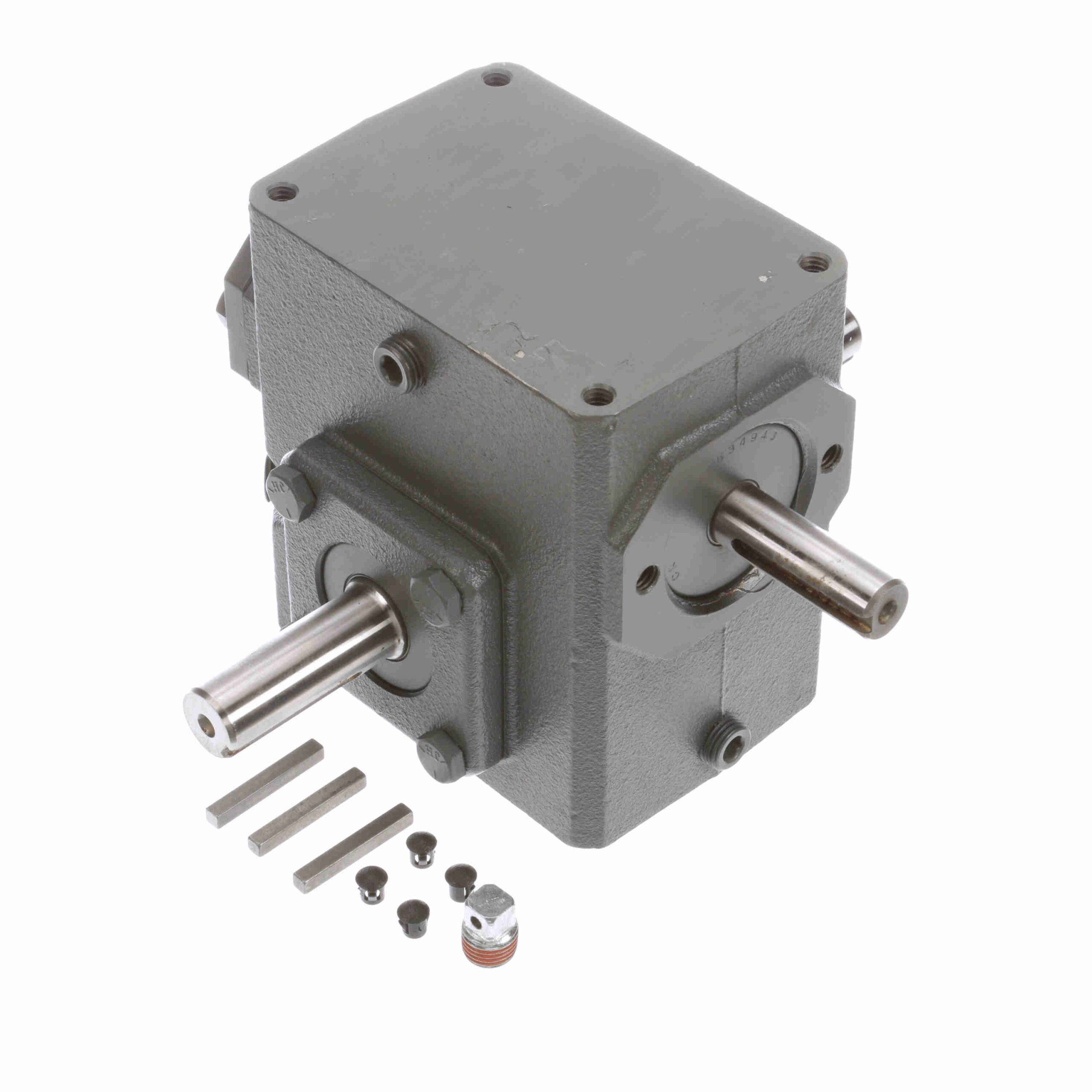

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 154ULR60

SKU: XC1030 Category:

$938.76

Out of stock

Out of stock

stripe checkout
  • Rugged Cast-Iron Housing: Provides maximum strength and dependability.
  • High lead angle worm is case hardened, ground and polished.
  • Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
  • Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
Key Length:

1.38

Shaft Seal Material:

Nitrile

Thrust Rating - output shaft:

1399

Reducer Style:

Standard

Ratio:

60:1

Input Speed:

1750

Efficiency:

80

Key Sq.:

0.1875

Manufacturer Reducer Size:

154

Maximum Input HP:

0.391 hp @ 1750 rpm

Gear Type:

Worm

Model Code:

154U

Output Shaft Assembly Code:

D

Reducer:

Worm - Right Angle

Center Distance (in):

1.54

Input Keyway:

3/16 X 0.94 in

Input Diameter (in):

0.625 in

Assembly:

U-LR

Service Factor:

1

Input RPM:

1, 75

Output Shaft Orientation:

LR

Output RPM:

29.1

Series Code:

Raider

Product Type:

Worm Speed Reducer

Output Key:

3/16 X 1.25

Output Diameter (in):

0.750 in

Input Style:

Solid Shaft

Input HP @ 1750 RPM:

0.28

No. of Gear Reductions:

Single

Ratio Range:

60:01:00

Mounting Style:

No Base

Output Shaft Direction:

Double

Overhung Load Rating (Output Shaft(lb)):

388 lb

Output Torque Rating (in-lb):

462 in-lbs @1750 input RPM in/lbs

Output Shaft:

Solid Shaft

Housing Material:

Cast Iron

UPC:

6, 62289E+11

Weight:

17.45 LB

Packaged Length:

11.2 Inches

Packaged Width:

10.5 Inches

Packaged Height:

11.3 Inches
