- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
154Q56H30 010

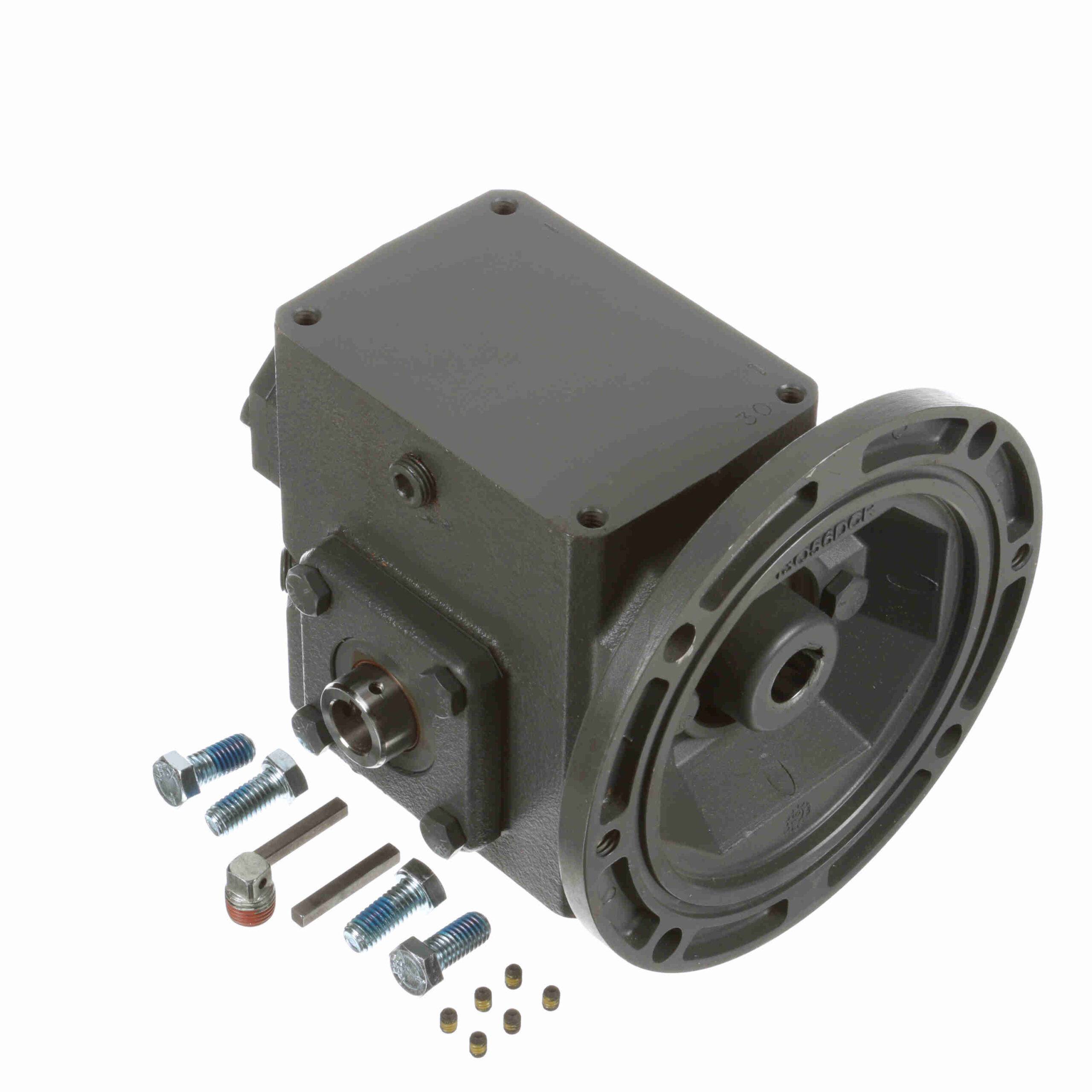

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 154Q56H30 010
$1,441.09
Out of stock
Out of stock
| Efficiency: | 80 | Input Speed: | 1750 |
|---|---|---|---|
| Thrust Rating - output shaft: | 1144 | Reducer Style: | Standard |
| Input Keyway (C Face): | 3/16 x 3/32 | Motor Frame Size: | 56C |
| Input Bore (C Face): | 0.625 | Ratio: | 30:1 |
| Mounting Style: | Shaft Mt | Series Code: | Raider |
| Ratio Range: | 30:1 | Frame Size: | 56C |
| Service Factor: | 1 | Output Diameter (in): | 0.625 in |
| Center Distance (in): | 1.54 | Input Diameter (in): | 0.625 in |
| Input Style: | C-Face Quill | No. of Gear Reductions: | Single |
| Gear Type: | Worm | Input HP @ 1750 RPM: | 0.63 |
| Product Type: | Worm Speed Reducer | Output Shaft Direction: | L or R |
| Output Shaft: | Hollow Bore | Housing Material: | Cast Iron |
| Overhung Load Rating (Output Shaft(lb)): | 860 lb | Output Torque Rating (in-lb): | 478 in-lbs @1750 input RPM in/lbs |
| UPC: | 6, 62288E+11 | Weight: | 21.00 LB |
